• Model NO.：Fd160
• Lift height：3000~5000mm
• Condition：New
• Engine：Cummins
• Lifting Height：3m to 6m
• Standard Mast：2-Stage
• Fork Length：1800mm
• Transport Package：Nude
• Specification：16on
• Trademark：DALIAN
• Origin：China
• HS Code：84272090
• Production Capacity：100PCS,Year

Basic Info.

Model NO. Fd160 Lift height 3000~5000mm Condition New Engine Cummins Lifting Height 3m to 6m Standard Mast 2-Stage Fork Length 1800mm Transport Package Nude Specification 16on Trademark DALIAN Origin China HS Code 84272090 Production Capacity 100PCS/Year

Product Description

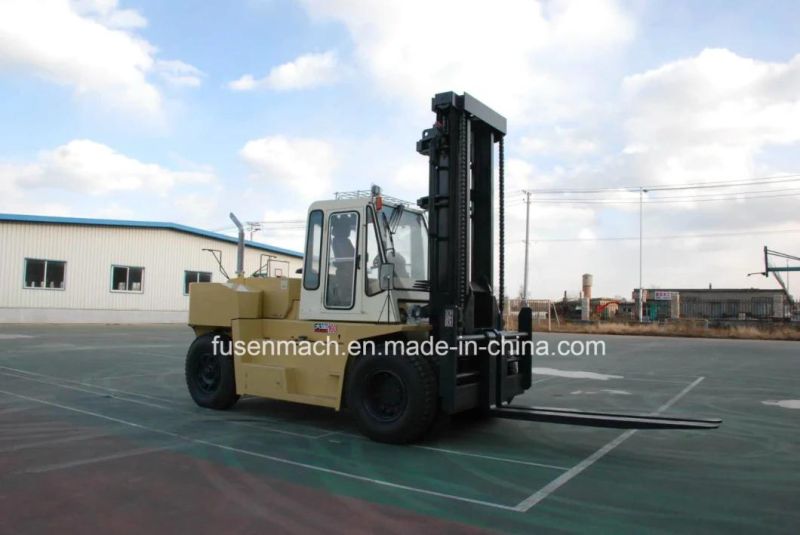

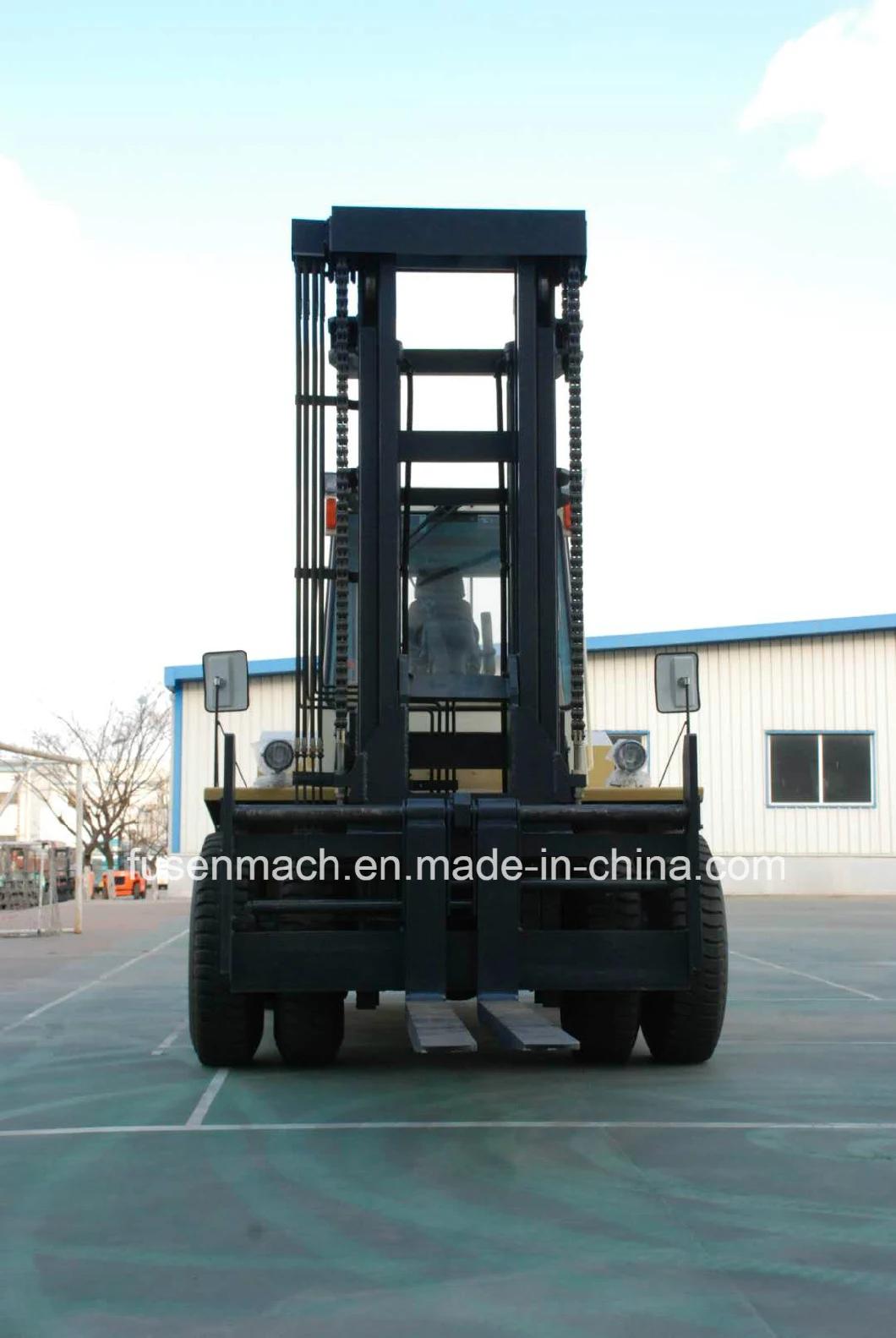

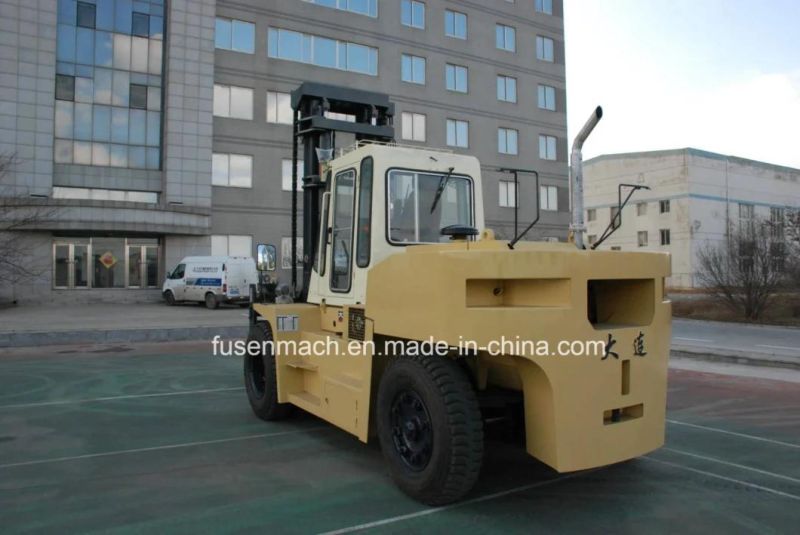

High Quality Dalian Forklift Truck FD160 with Cummins Engine

Product Description

Model FD160
Load capacity: 16000kg
Standard mast: 2-stage
Max. lifting height: 4m
Engine: Cummins QSB6.7-C185
Rated power: 138kw
Certificate: ISO


Forklift model		FD160
Equipment code		CD-QFC
Overall height (forks raised with backrest)	mm	5885
Max. lifting height	mm	4000
Free lifting height	mm	0
Overall height (forks lowered upright)	mm	3885
Backrest height (from upper face of forks)	mm	1035
Overall length (with forks)	mm	6390
Overall length (without forks)	mm	4890
Overall height (overhead guard)	mm	2990
Overall width (not include special attachment)	mm	2450
Fork length	mm	1500
Fork thickness	mm	90
Fork width	mm	180
Lateral fork adjustment (outside of forks)	mm	508-2012
Overhead guard clearance (from face of seat to guard)	mm	1000
Coupler height	mm	630
Front overhang length	mm	804
Rear overhang length	mm	986
Wheel base	mm	3100
Tread (front)	mm	1765
Tread (rear)	mm	1890
Min. under-clearance (bottom of mast)	mm	≥260
Min. turning radius	mm	4600
Min. intersecting aisle	mm	3780
Mast tilting angle	°	612
Specification
Load capacity	kg	16000
Load center	mm	600
Power type		Diesel
Tire type		Pneumatic
Lifting speed (with load / without load)	mm/s	280/310
Lowering speed (with load / without load)	mm/s	<=600/>=300
Max. driving speed	km/h	24/26
Max. gradeability	%	<=21
Brake distance	mm	<=7
Wheels (front / rear)	pcs	4x/2
Tire specification (front / rear)		12.00-20-18PR
Battery voltage / capacity	V/Ah	2x12/120
Service brake		Hydraulic type
Parking brake		Side drum type
Engine brand		CUMMINS
Internal combustion engine model		QSB6.7-C185
Displacement	L	6.7
Rated output	Kw/rpm	138/2500
Max. torque	Nm/rpm	780/1500
Average fuel consumption	g/kwh	220
Transmission type (No. of speed  Fwd/Rvs)		Electric-shift
Total weight	Kgs	18800
