• Model NO.：FG50
• Lift height：3000mm
• Condition：New
• Item：Forklift Truck
• Min. Turning Radius(Outside)：230mm
• Rated Power：57kw,2800rpm
• Wheelbase：1900mm
• Ground Clearence：130mm
• Length with Fork：2895mm
• Brand：Ltmg
• Warranty：1 Year , 2000 Working Hours
• Fuel Tank：60L
• Free Lift Height(Standard)：150mm
• Transport Package：Container
• Specification：2895mm*4140mm*2150mm
• Trademark：LTMG
• Origin：China
• HS Code：8427209000
• Production Capacity：800sets,Year

General1Model FG502Power type LPG3Rated Capacitykg50004Load centremm600Characteristic&Dimension5Lift Heightmm30006Fork SizeL×W×T   mm1220×150×607Mast title AngleF/RDeg6°/12°8Front Overhang (Wheel center to fork face)mm5909Ground clearance (Bottom of mast)mm20010Overall DimensionLength to face of fork (without fork)mm345011Overall widthmm201012Mast Lowered Heightmm255013Mast Extended Height (with backrest)mm438014Overhead Guard Heightmm247015Turning Radius (outside)mm325016Min. intersecting aislemm2960Performance17SpeedTravel(no load)km/h3018Lifting(full load)mm/s50019Max Gradeability%20Chassis 20TireFront 8.25-15-14 PR21Rear 8.25-15-14 PR22Wheelbasemm225023Service Weightkg8550Power&Transmission24BatteryVoltage/Capacity                                      V/Ah(12V/80AH) × 225EngineModel GM4.3L26Manufacture GM27Rated output/r.p.m.kwt/r.p.m56/220028Rated torque/r.p.m.N·mt/r.p.m240/75029No.of Cylinder 630Bore×Strokemm101.6×88.3931Displacementcc430032 Fuel Tank CapacityL14033TransmissionType Hydraulic34StageFWD/RVS 2/235Operating pressure for attachmentMpa19

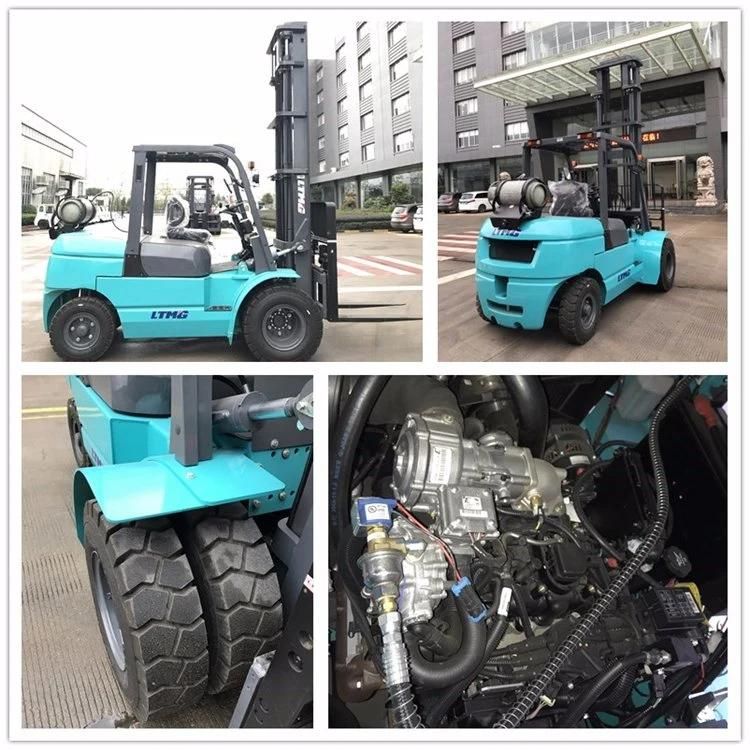

5 ton LPG forklift truck price

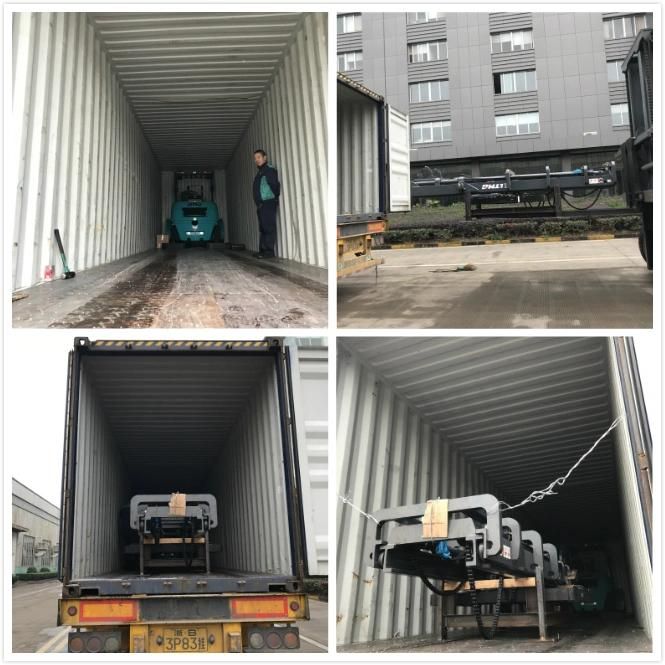

Packing & Shipping


After sales service

LTMG always treat after-sale service as important as sale.
Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with 1 year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.
