• Model NO.：LTR30
• Lift height：3000mm
• Condition：New
• Power Type：Diesel
• Engine：Yanmar
• Rated Capacity：3000kg
• Fork Size：1220*125*45mm
• Wheelbase：1835mm
• Truck Weight：4800kg
• Std. Lifting Height：3000mm
• Turning Radius(Outside)：2750mm
• Max.Gradeability：16
• Color：Customize
• Transport Package：Container
• Specification：3060mm*1604mm*2115mm
• Trademark：LTMG
• Origin：China
• HS Code：84272090
• Production Capacity：1000units,Year

Model

LTR30
Power Type

Diesel
Rated Capacity
kg
3000
Load Center
mm
600
Lift Height
mm
3000
Fork Size
L×W×T
mm
1220×125×45
Mast Tilt Angle
F/R
Deg
10°/12°
Front Overhang(Wheel center to fork face)
mm
601
Ground Clearance(Bottom of mast)
mm
265
Overall Dimension
Length to face of fork(Without fork)
mm
3060
Overall Width
mm
1604
Mast Lowered Height
mm
2115
Mast Extended Height(With backrest)
mm
4250
Overhead Guard Height
mm
2200
Turning Radius(outside)
mm
2750
Min. intersecting aisle
mm
2615
Speed
Travel (Empty load)
km/h
22
Lifting(Full load)
mm/s
450
Max.Gradeability
%
16
Tire
Front
mm
14-17.5-14PR
Rear
mm
27×10-12-12PRWheelbase
mm
1835Truck weight
kg
4800
Battery
Voltage/Capacity
V/Ah
12/90
Engine
Model

4TNE98
Manufacture

YANMAR
Rated output/r.p.m.
kw
42.1/2300
Rated torque/r.p.m.
N·m
186-206/1700
No.of Cylinder

4
Bore×Stroke
mm
98×110
Displacement
cc
3318
Fuel Tank Capacity
L
60
Transmission Type

Automatic
Drive Type

2WD

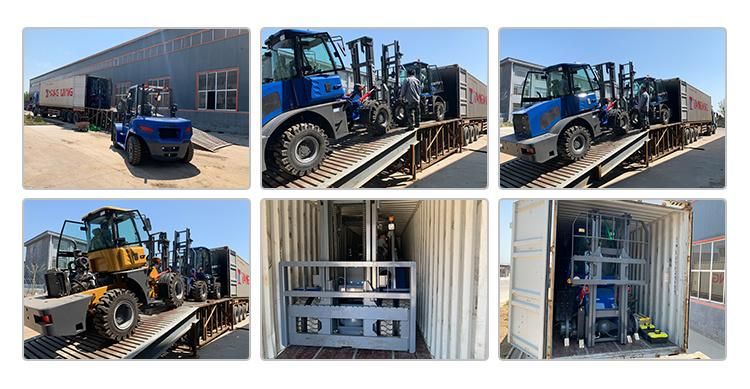

Shipping & Packaging



After sales service

LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.

All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.

Detail clauses and policies please check our website and product certificate.

Customer Visiting


FAQ
1.What Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System. All of our products with CE certificate. Some of our products meets the EPA requirements.
2.Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements. However, All the customizing and refit should be implemented safely and scientifically. The colors can be painted as client's need.
3.How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.
4.Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients
5.What payment terms do you accept?
On T/T term 30% down payment is required in advance,and 70% balance shall be settled before shipment.
