• Model NO.：FD160
• Lift height：3500mm
• Condition：New
• Fork Size：1800mm*180mm*90mm
• Weight：23000kg
• Engine：Yuchai
• Wheelbase：3800mm
• Color：Decided by Buyer
• Rated Power：125kw,2200r.Pm
• Brand：Ltmg
• Min. Turning Radius：5800mm
• Free Lift：180mm
• Warranty：1 Year,2000 Working Hours
• Transport Package：by Bulk
• Specification：7645mm*2750mm*3625mm
• Trademark：LTMG
• Origin：China
• HS Code：8427209000
• Production Capacity：800set,Month

ModelUnitFD160Rated load 16000Load center 600Free liftmm180Mast tilt angle (front/rear)º6/12
Overall dimensionsLengthmm7645Widthmm2750Heightmm3625Mast lifting heightmm3500Fork size (L*W*H)mm1800X180X90Min. turning radiusmm5800Max. travel speed (with load)Km/h28Lifting speed (with load)mm/s300Gradeability (with load)%20WeightKg23000Front 4X12.00-24/18PRRear 2X12.00-20/18PRWheel treadFrontmm2060Rearmm2330Wheelbasemm3800Min. ground clearancemm265Model YC6A175Z-T20Rated power/rotate speedKW/r.pm125/2200Max. torque/rotate speedN.m/r.pm650/1400
Product Features

1.Equipped with Chinese powerful and reliable engines with excellent environmental performance; Original imported Cummins engine is optional.
2.Adopt advanced load sense technology which offers flow for steering system to save energy ,protect environment ,and lower the system heat.
3.High strength-solder bath mast. Wide filed of the front vision ensures the safety of the operation and improves work efficiency.
4.Four wheel double-line caliper disc braking system with a gas container in the back to ensure a safety and reliable operation.
5.Strong structure increases the total weight of machinery,improving the quality and durability.

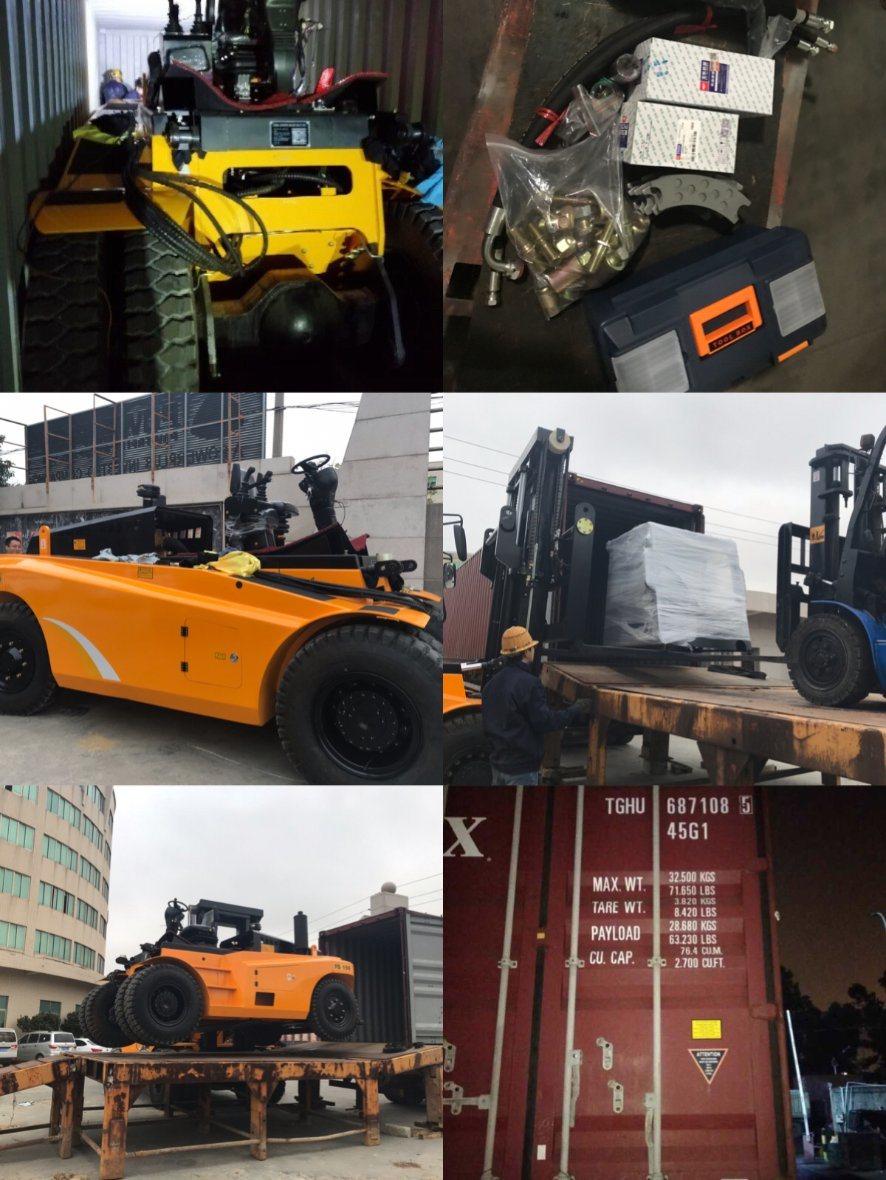

Packing and Shipping



Our Factory and Customer




After sales service

LTMG always treat after-sale service as important as sale.
Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with 1 year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.
