• Model NO.：MFA
• Lift height：>5000mm
• Condition：New
• Certificate：Ce
• Operation Type：Stand on
• Max. Load Capacity：2000kg
• Warranty：1 Year
• Controller Brand：Curtis
• Transport Package：Standard Packing
• Specification：CE, SGS, ISO
• Trademark：MIMA
• Origin：China
• HS Code：8427109000
• Production Capacity：1000sets,Year

Basic Info.

Model NO. MFA Lift height >5000mm Condition New Certificate Ce Operation Type Stand on Max. Load Capacity 2000kg Warranty 1 Year Controller Brand Curtis Transport Package Standard Packing Specification CE, SGS, ISO Trademark MIMA Origin China HS Code 8427109000 Production Capacity 1000sets/Year

Product Description

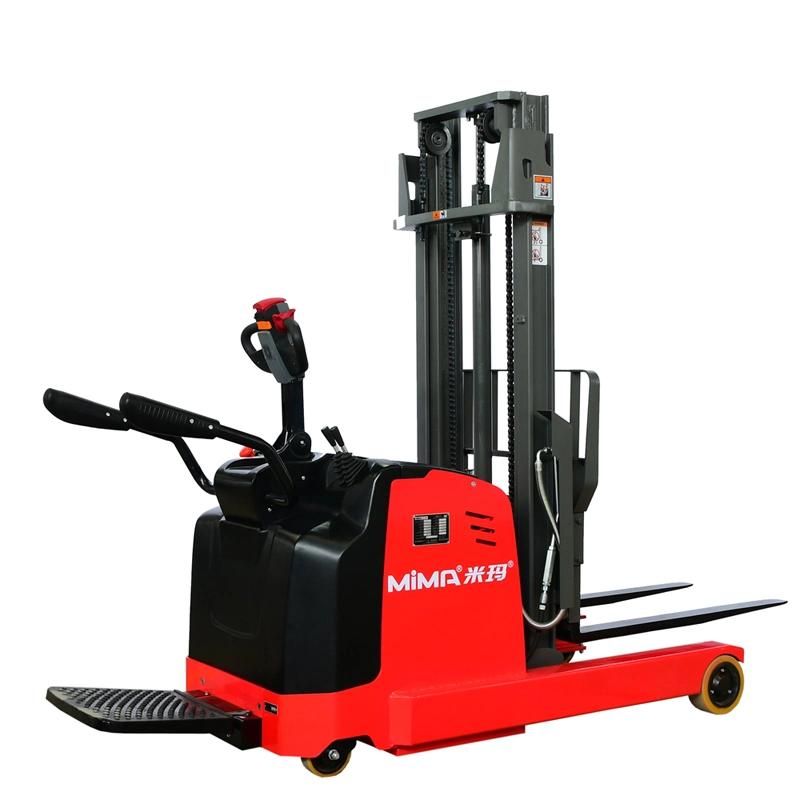

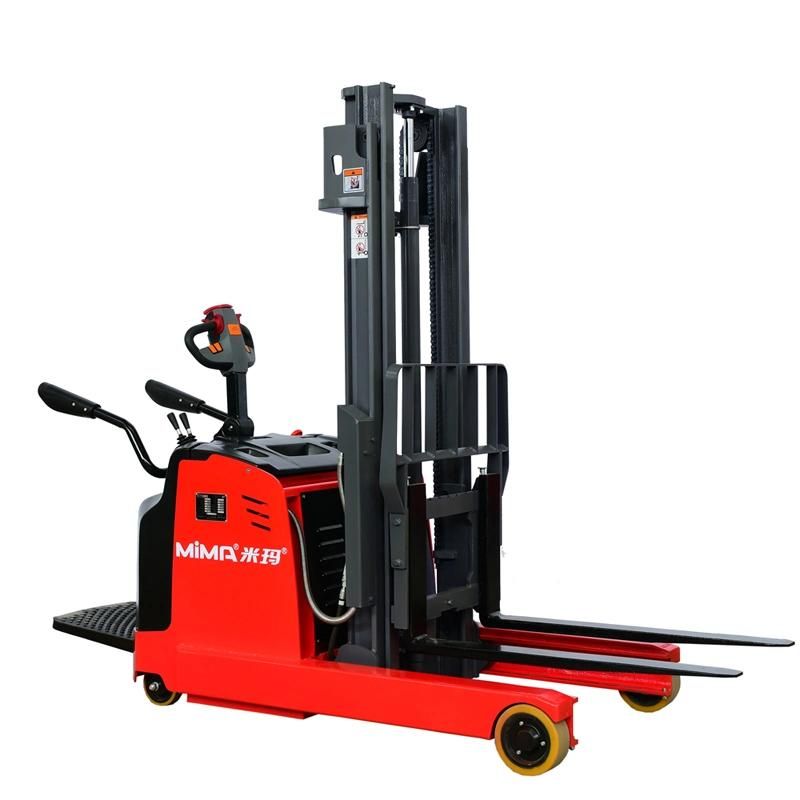

Factory Price 2 ton empty container battery powered electric reach stacker
Product details

1. The body is shorter and the passage requirements are smaller;

2. The AC motor has no brush and is maintenance-free;

3..5 fulcrum low center of gravity design, good stability;

4. With ramp anti-sliding function, reverse braking and emergency braking ensure safety;

5. When installing the wing, when the wing is lowered, the driving speed of the vehicle is reduced by 30%-40%, which increases the safety;

6. Removable pedal design, it is more convenient to replace the accessories;

7. Turn the speed limit to prevent the vehicle from turning too fast;

8. It has a descending buffer function. When the fork is less than a certain height from the ground, it will automatically decelerate and effectively protect the cargo.


Product parameters


Model	MFA15-16	MFA15-30	MFA20-16	MFA20-30
Load capacity  kg	1500	1500	2000	2000
Load center  mm	500	500	500	500
Max. lifting height  mm	1600	3000	1600	3000
Wheel type	PU	PU	PU	PU
Wheel size,load side	φ210×85	φ210×85	φ210×85	φ210×85
Wheel size,drive side	φ230×75	φ230×75	φ230×75	φ230×75
Mast closed height	2090	2010	2090	2010
Mast extended height(with backrest) mm	2500	3900	2500	3900
Overall  length (pedal off) mm	2430	2430	2560	2560
Overall width  mm	900/≤1120	900/≤1120	900/1105	900/1105
Turning radius   mm	1800	1800	1985	1985
Mast forwarding length  mm	620	620	670	670
Pedal height  mm	170	170	170	170
Driving speed,load/unload km/h	4.0/5.8	4.0/5.8	4.0/5.8	4.0/5.8
Lifting speed,load/unload mm/s	80/130	120/150	95/150	95/150
Lowering speed,load/unload mm/s	100/130	140/130	100/95	100/95
Max.gradeabitity   %	6/8	6/8	6/8	6/8
Brake type	Electromagnetic	Electromagnetic	Electromagnetic	Electromagnetic
Driving motor(S2-60min) kw	1.5	1.5	1.5	1.5
Lifting motor(S3-10%) kw	2/3	3	3	3
Battery V/Ah	24/210	24/210	24/210	24/210
Total weight(incl. battery)	1850	2100	2100	2200
Steering system	EPS	EPS	EPS	EPS

Why choose us

BANYITONG SCIENCE & TECHNOLOGY DEVELOPING CO., LTD.
Founded in 1994, BANYITONG SCIENCE & TECHNOLOGY DEVELOPING CO.,LTD is located in Hefei, Eastern of China. As the leading manufacturer of Chinese electric forklift and material handling equipment, we are specialized in designing and developing with all-around logistics handling solutions. We have passed not only ISO9001:2008, ISO14001:2004 and CE certifications, but also got the People's Republic of China Special Equipment Production License and the honor of "Innovative Enterprise".

Referring to 12 series and more than 50 kinds of products, MiMA can offer you with electric forklift, electric reach truck, pallet stacker, pallet truck, order picker, tow tractor, narrow aisle forklift, special forklift, AGV and other customized equipments, which can provide customers with logistics handling solutions from 500kg to 100,000kg. Due to serialization and standardization, all MiMA products are widely used in medicine, food, chemical, household electrical appliances, wool cotton textile, tobacco, electronics, machinery, furniture and many other industries.

Owing to 100 national service networks and dozens of foreign dealers, we promise customers with competitive prices and perfect after-sales service. We are looking forward to better cooperation all over the world.

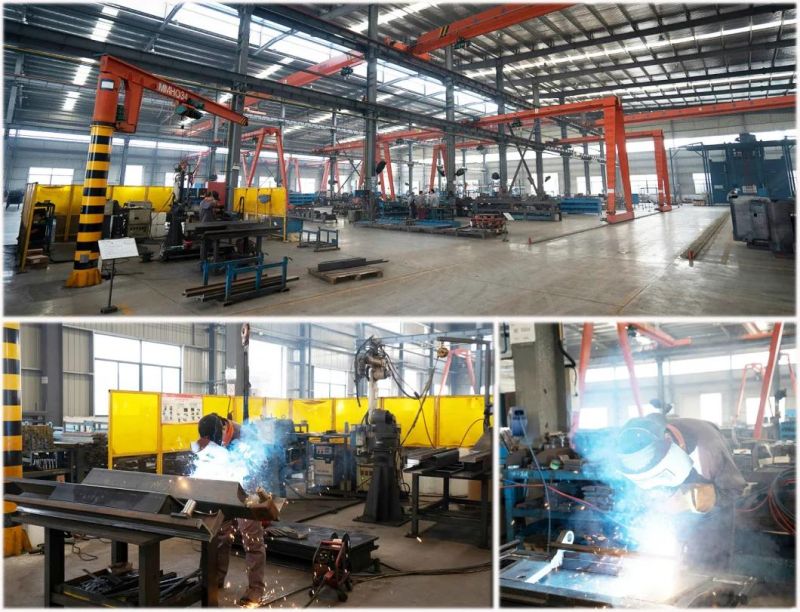

Welding workshop

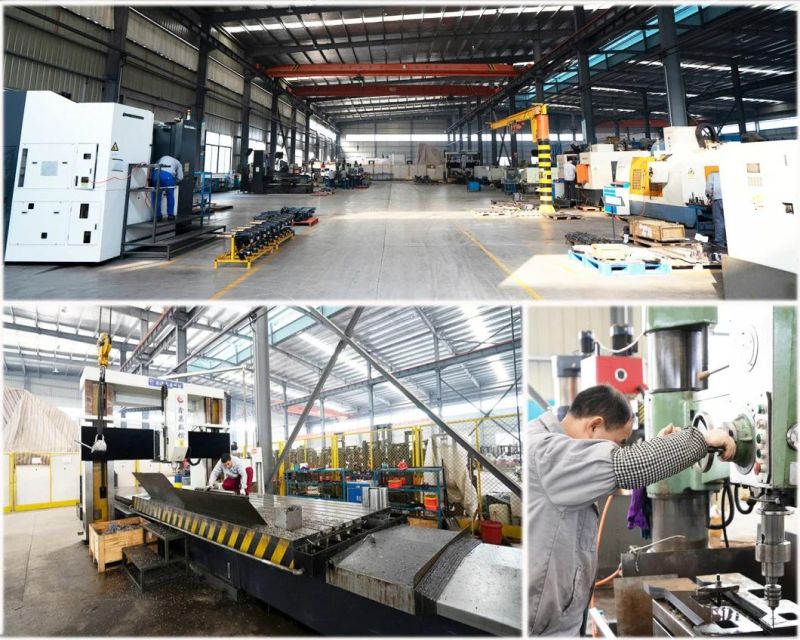

Metal processing workshop



Painting workshop

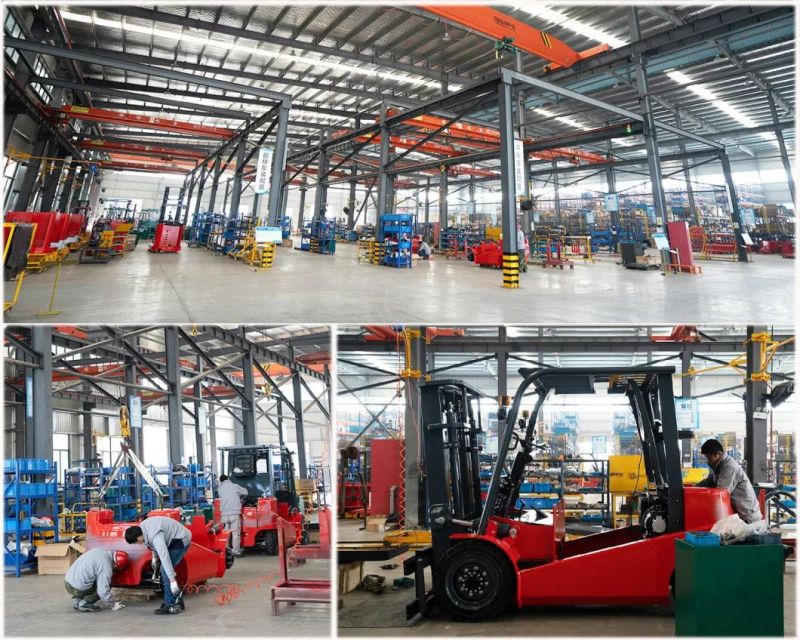

Assembly workshop

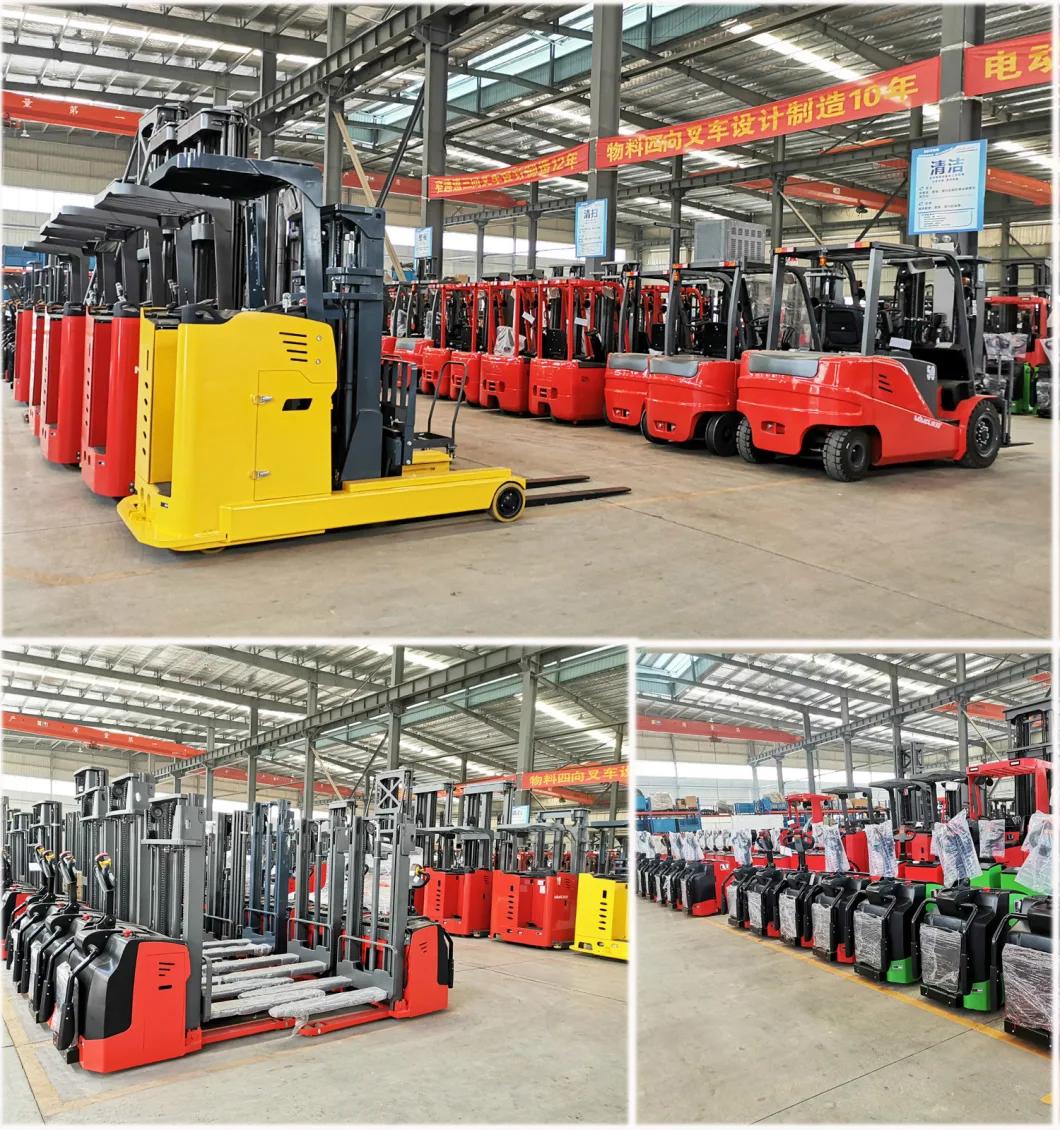

Warehouse



Many of our models are in stock, for more details please feel free to contact us.

Exhibition


FAQ

1.Are you factory or trading company?
We are the factory which have been manufacture electric forklift for more than 20 years.

2.What is the delivery time?
Generally it is can delivery immediately if the goods are in stock. Or it is 15-30 days if the goods are out of stock.

3.What is the Payment?
TT(bank transfer), LC at sight or Alibaba , all will be accepted.

4.Is OEM & ODM available?
1). We can do the product according your design
2). We can provide customized solutions according your requirments.

5.Can you provide training for the customer?
Yeah. We can provide training for our customer.

6.What certification do you have?
Our company has passed ISO 9001:2008 and all of the forklift have CE certification.

7.How can I get the best price?
Price is the most concerning problem of every customer,if you want to know the price.We need to know your detailed requirements.
