• Condition：New
• Controller Brand：Curtis
• Drive Motor：AC Motor
• Max. Load Capacity：2000kg
• Operation Type：Stand on
• Working Time：7 Hours
• Charging Time：7 Hours
• Warranty：12 Months
• Color：Accept Customized Color
• Battery Brand：Chinese Brand or Foreign Brand
• Lift Motor：DC Motor
• Transport Package：Standard Packing
• Specification：CE
• Trademark：MIMA
• Origin：China
• HS Code：84271090
• Production Capacity：1000 Units,Year

Basic Info.

Condition New Controller Brand Curtis Drive Motor AC Motor Max. Load Capacity 2000kg Operation Type Stand on Working Time 7 Hours Charging Time 7 Hours Warranty 12 Months Color Accept Customized Color Battery Brand Chinese Brand or Foreign Brand Lift Motor DC Motor Transport Package Standard Packing Specification CE Trademark MIMA Origin China HS Code 84271090 Production Capacity 1000 Units/Year

Product Description

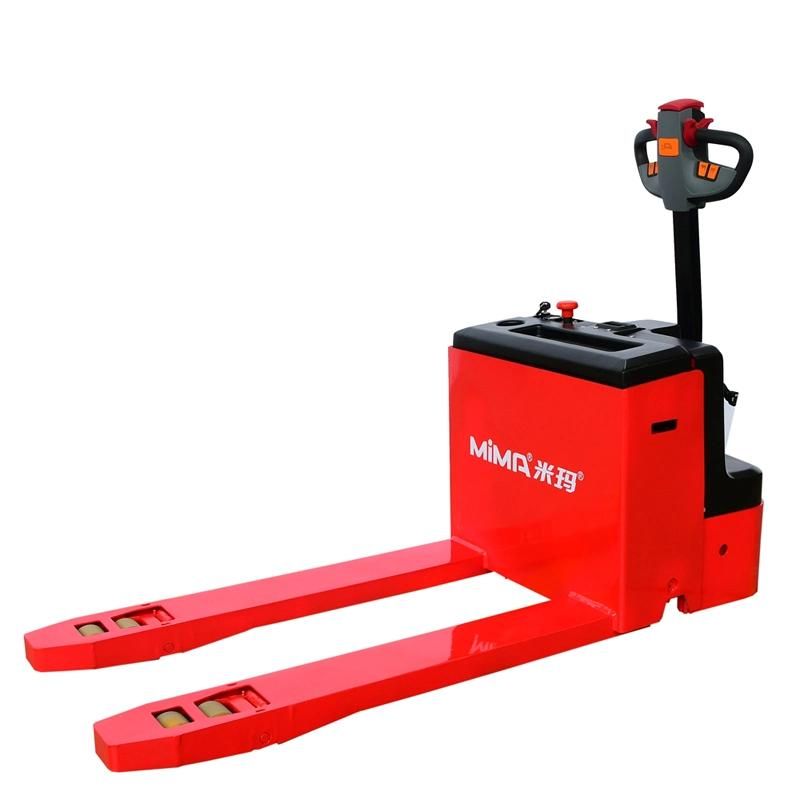

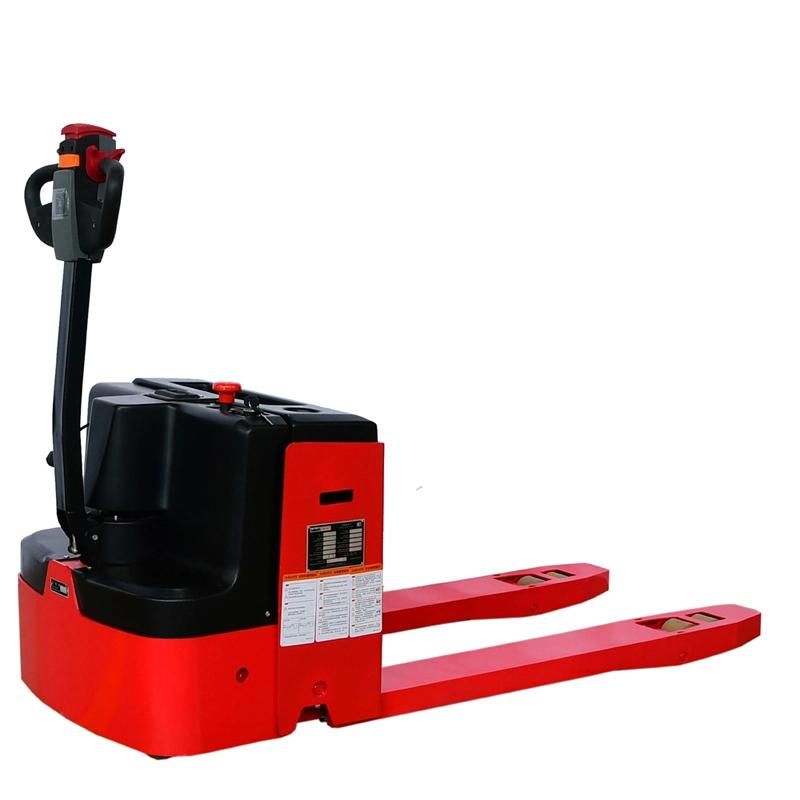

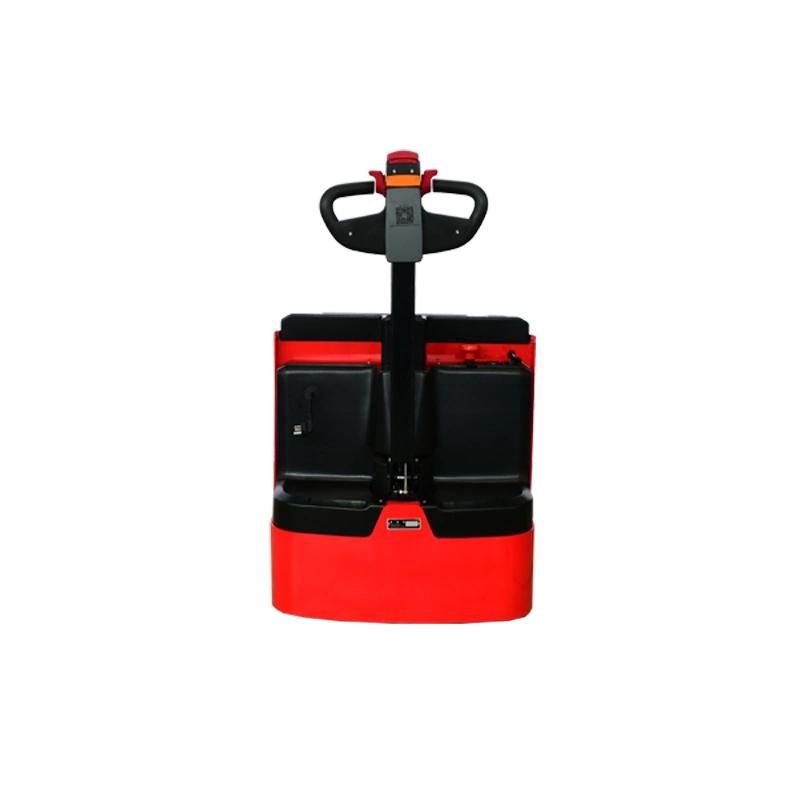

1.5 Tons Walkie Pallet Truck with Curtis ControllerProcut details
 MEW15, MEW20
Load Capacity:1500KG,2000KG

Main Features:
1. Make use of assembly handle

2. 2T make use of 5-point wheel,big diameter wheel,make body more steady.

3.  Strengthed frame,strength push rod and fork.

4. Non maintaince battery and build in charger.

5. Turning radius small, working aisle also small.










Brand		MIMA	MIMA
Model		MEW15	MEW20
Power type		Electric	Electric
Operation type		Stand on	Stand on
Service weight(incl. battery)	kg	380	400
Rated capacity	kg	1500	2000
Load centre	mm	600	600
Lift height	mm	115	115
Fork size	mm	1150/45/160	1150/45/160
Fork outside width	mm	680	680
Turning radius	mm	1535	1535
Aisle width for pallet 800×1200mm, pedal on/off	mm	2197	2197
Aisle width for pallet 1000×1200mm, pedal on/off	mm	2338	2338
Driving speed	km/h	3.5/4	3.6/3.7
Lifting speed	mm/s	39/46	39/46
Lowering speed	mm/s	46/40	46/40
Brake type		Electromagnetic	Electromagnetic
Steering system		Mechanical	Mechanical

  Company Introduction     BANYITONG SCIENCE & TECHNOLOGY DEVELOPING CO.,LTD.
 Founded in 1994, BANYITONG SCIENCE & TECHNOLOGY DEVELOPING CO.,LTD is located in Hefei, Eastern of China. As the leading manufacturer of Chinese electric forklift and material handling equipment, we are specialized in designing and developing with all-around logistics handling solutions. We have passed not only ISO9001:2008, ISO14001:2004 and CE certifications, but also got the People's Republic of China Special Equipment Production License and the honor of "Innovative Enterprise".

Referring to 12 series and more than 50 kinds of products, MiMA can offer you with electric forklift, electric reach truck, pallet stacker, pallet truck, order picker, tow tractor, narrow aisle forklift, special forklift, AGV and other customized equipments, which can provide customers with logistics handling solutions from 500kg to 100,000kg. Due to serialization and standardization, all MiMA products are widely used in medicine, food, chemical, household electrical appliances, wool cotton textile, tobacco, electronics, machinery, furniture and many other industries.



Our workshop and warehouse


              Many of  our models are in stock, if you want to know more details, please feel free to contact us.
