• Model NO.：MBD
• Lift height：0-3500mm
• Condition：New
• Controller：Curtis
• Battery：24V,80ah
• Steering Type：Mechanical
• Transport Package：Standard Packing
• Specification：1750*800*2030mm
• Trademark：MIMA
• Origin：China
• HS Code：8427109000
• Production Capacity：More Than 3000PCS,Year

Basic Info.

Model NO. MBD Lift height 0-3500mm Condition New Controller Curtis Battery 24V/80ah Steering Type Mechanical Transport Package Standard Packing Specification 1750*800*2030mm Trademark MIMA Origin China HS Code 8427109000 Production Capacity More Than 3000PCS/Year

Product Description

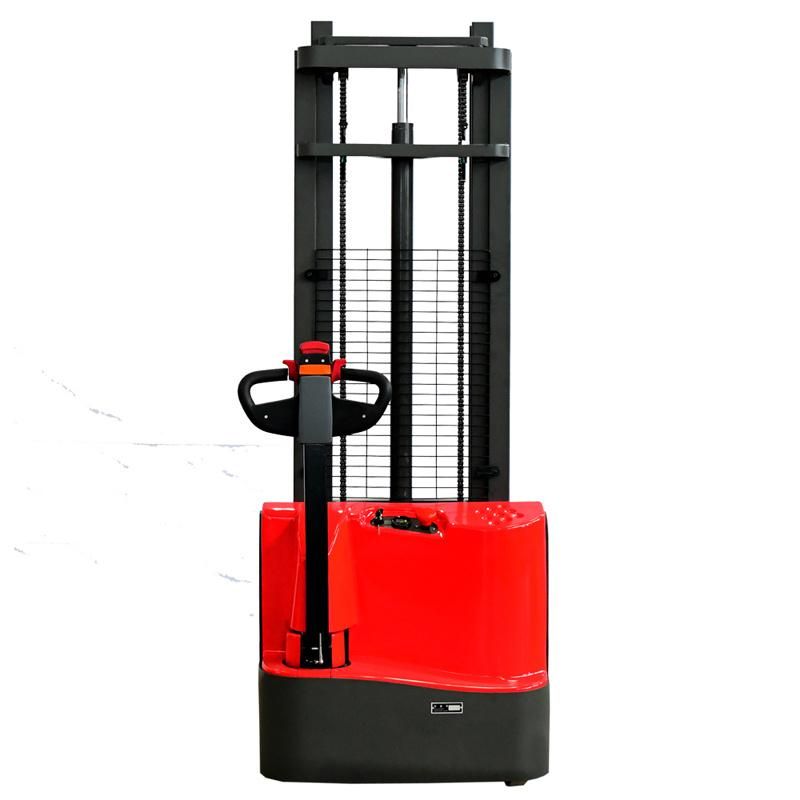

 Factory Direct Pallet Stacker 1500kgsProduct details1. The mast used H style steel which is more strength.

2. With smart body structure, the aisel is small. The four pivot design provide better stability.

3. Maintenance free battery

4. The handle can turn right and left for 90°. The forklift is braking, when the handle is  90°and lowest position

5.It ensures safety with the function of slop anti-skit, reverse brake and emergency brake.

6.With down buffer function, when the fork reach a certain height, the fork speed will decrease to protect cargos.

7. The protective net will protect hands and avoid cargos from leaking.










Brand		MIMA	MIMA
Model		MBD12	MBD15
Power type		Battery	Battery
Operation type		Walkie	Walkie
Service weight(incl. battery)	kg	560	560
Rated capacity	kg	1200	1500
Load center	mm	500	500
Lift height	mm	3000	3000
Fork size	mm	1150/160/60	1150/160/60
Fork outside width	mm	560	560
Turning radius	mm	1440	1440
Max. gradeability	%(tanθ )	3/6	3/6
Driving speed(load,unload)	km/h	3.5/4	3.5/4
Lifting speed(load,unload)	mm/s	110/180	73/107
Lowering speed(load,unload)	mm/s	130/160	85/115
Brake type		Electromagnetic	Electromagnetic
Steering system		Mechanical	Mechanical

Why choose us

BANYITONG SCIENCE & TECHNOLOGY DEVELOPING CO., LTD.
 Founded in 1994, BANYITONG SCIENCE & TECHNOLOGY DEVELOPING CO.,LTD is located in Hefei, Eastern of China. As the leading manufacturer of Chinese electric forklift and material handling equipment, we are specialized in designing and developing with all-around logistics handling solutions. We have passed not only ISO9001:2008, ISO14001:2004 and CE certifications, but also got the People's Republic of China Special Equipment Production License and the honor of "Innovative Enterprise".

Referring to 12 series and more than 50 kinds of products, MiMA can offer you with electric forklift, electric reach truck, pallet stacker, pallet truck, order picker, tow tractor, narrow aisle forklift, special forklift, AGV and other customized equipments, which can provide customers with logistics handling solutions from 500kg to 100,000kg. Due to serialization and standardization, all MiMA products are widely used in medicine, food, chemical, household electrical appliances, wool cotton textile, tobacco, electronics, machinery, furniture and many other industries.

As our logo, MiMA has the deep meaning: "Minimum Space, Maximum Benefit", we believe that urban logistics is a mega trend, that needs new, smart and saving space solutions, we have those solutions already today.

Owing to 100 national service networks and dozens of foreign dealers, we promise customers with competitive prices and perfect after-sales service.

Our workshop and warehouse



Many of our models are in stock, for more details please feel free to contact us.
