• Model NO.：TFC
• Condition：New
• Drive Motor：AC Motor
• AC Controller：Curtis
• Lifting Height：3000mm - 8000mm
• Loading Capacity：2500kg- 4000kg
• Warranty：12months or 2000hours
• Lift Motor：AC Motor
• Operation Type：Seated
• Transport Package：Standard Packing
• Specification：SGS, ISO
• Trademark：MiMA
• Origin：China
• HS Code：8427109000
• Production Capacity：1000 Units,Year

Basic Info.

Model NO. TFC Condition New Drive Motor AC Motor AC Controller Curtis Lifting Height 3000mm - 8000mm Loading Capacity 2500kg- 4000kg Warranty 12months or 2000hours Lift Motor AC Motor Operation Type Seated Transport Package Standard Packing Specification SGS, ISO Trademark MiMA Origin China HS Code 8427109000 Production Capacity 1000 Units/Year

Product Description

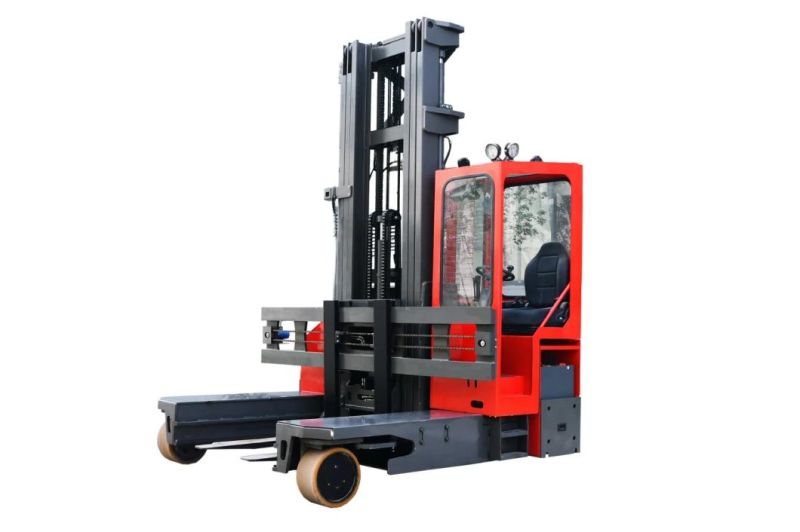

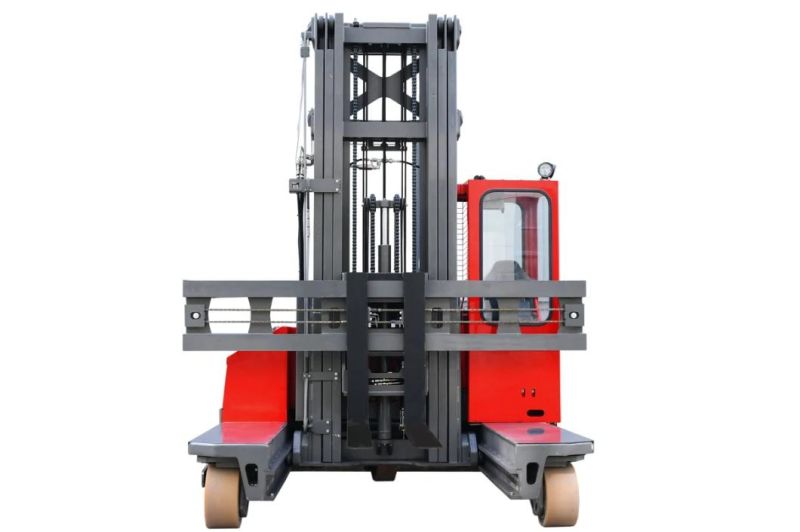

Mima Brand Electric Side Loader For Long Materials handling

Product details
 1. Long material handling, with the function of go straight ,go side and  in situ rotation.

2. Free maintenance full AC drive system.

3.With OPS sensing system, when the operator leaves the seat, the vehicle accelerator will stop working,  to avoid misoperation.

4. With positioner  to meet different requirements for long material handling.

5. With mast  buffering technology, reducing impact.

6. Ergonomic design of cab , provide a comfortable, safe and efficient operating  for operators.

7. With split battery layout.










Model		TFC35	TFC40
Operate type		Seated	Seated
Rated capacity	kg	2500	4000
Load center	mm	600	600
Wheelbase	mm	1640	1800
Service weight(incl. battery)	kg	5500	8100
Wheel type		PU	PU
Load wheel size	mm	Φ381*127	Φ377*100(double wheels)
Drive wheel size	mm	φ457*160	Φ457*160
Number of wheels, front/rear (x=drive)	mm	2 / 1x	4 / 2x
Mast closed height	mm	3127	3290
Free lift height	mm	2050	2050
Lift height	mm	6000	6000
Mast height with backrest	mm	6968	7230
Cab height	mm	2550	2670
Overall length	mm	2080	2300
Overall width	mm	2960	2960
Fork size	mm	1000/125/45	1200*150*50
Fork outside width	mm	560~2900	560~2900
Driving motor(S2-60min)	kw	7.0AC	7.0AC
Lifting motor(S3 15%)	kw	8.6AC	15AC
Battery voltage/capacity	V/Ah	48/600	48/900
Battery weight	kg	980	1470
Brake type		Electromagnetic	Electromagnetic

Why choose us

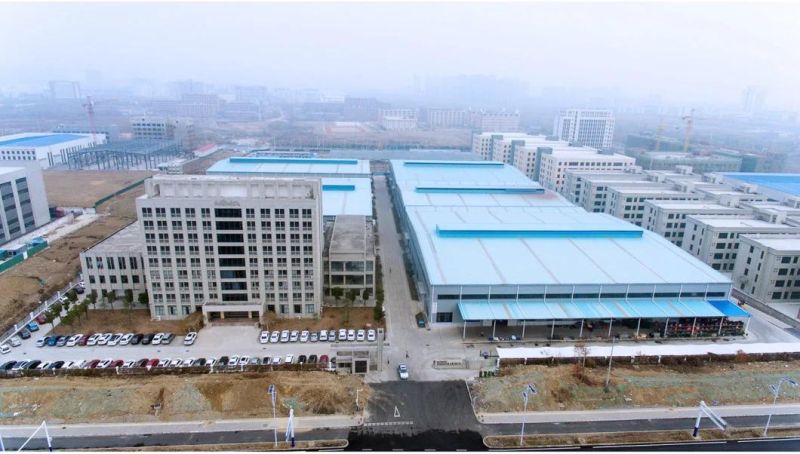

 BANYITONG SCIENCE AND TECHNOLOGY DEVELOPING CO., LTD.
Founded in 1994, BANYITONG SCIENCE & TECHNOLOGY DEVELOPING CO.,LTD is located in Hefei, Eastern of China. As the leading manufacturer of Chinese electric forklift and material handling equipment, we are specialized in designing and developing with all-around logistics handling solutions. We have passed not only ISO9001:2008, ISO14001:2004 and CE certifications, but also got the People's Republic of China Special Equipment Production License and the honor of "Innovative Enterprise".

Referring to 12 series and more than 50 kinds of products, MiMA can offer you with electric forklift, electric reach truck, pallet stacker, pallet truck, order picker, tow tractor, narrow aisle forklift, special forklift, AGV and other customized equipments, which can provide customers with logistics handling solutions from 500kg to 100,000kg. Due to serialization and standardization, all MiMA products are widely used in medicine, food, chemical, household electrical appliances, wool cotton textile, tobacco, electronics, machinery, furniture and many other industries.

As our logo, MiMA has the deep meaning: "Minimum Space, Maximum Benefit", we believe that urban logistics is a mega trend, that needs new, smart and saving space solutions, we have those solutions already today.

Owing to 100 national service networks and dozens of foreign dealers, we promise customers with competitive prices and perfect after-sales service.

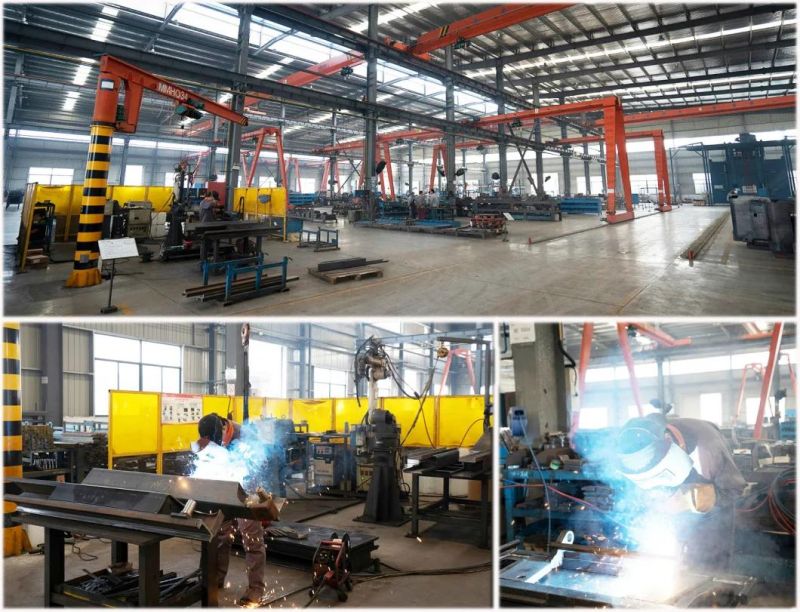

Welding workshop

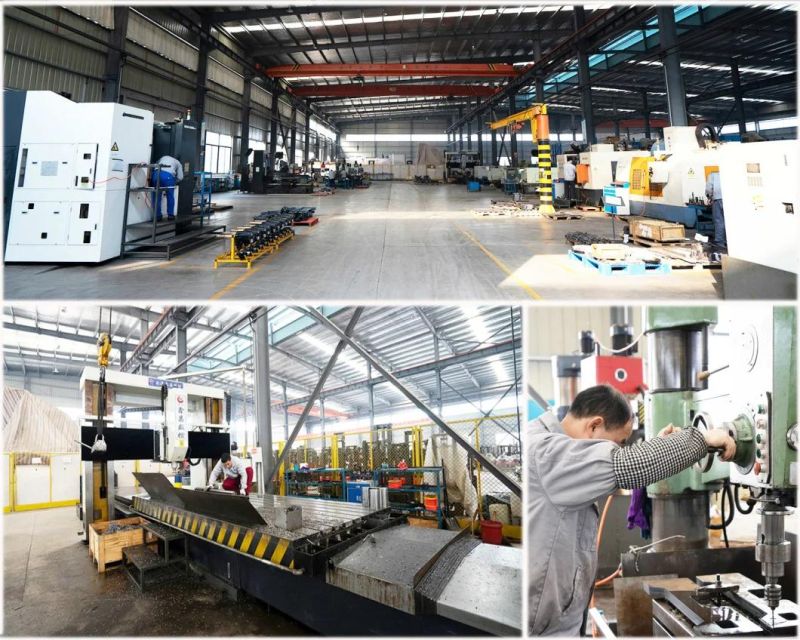

Metal processing workshop



Painting workshop

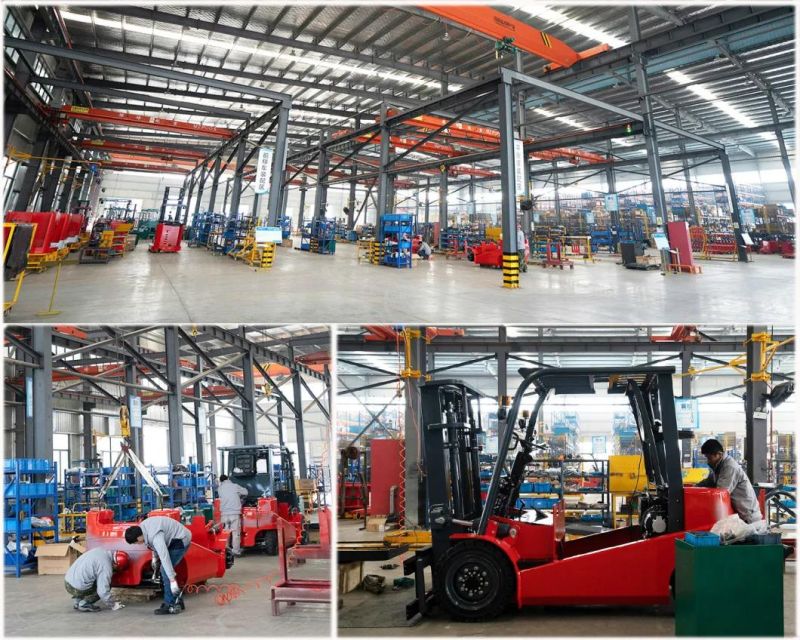

Assembly workshop

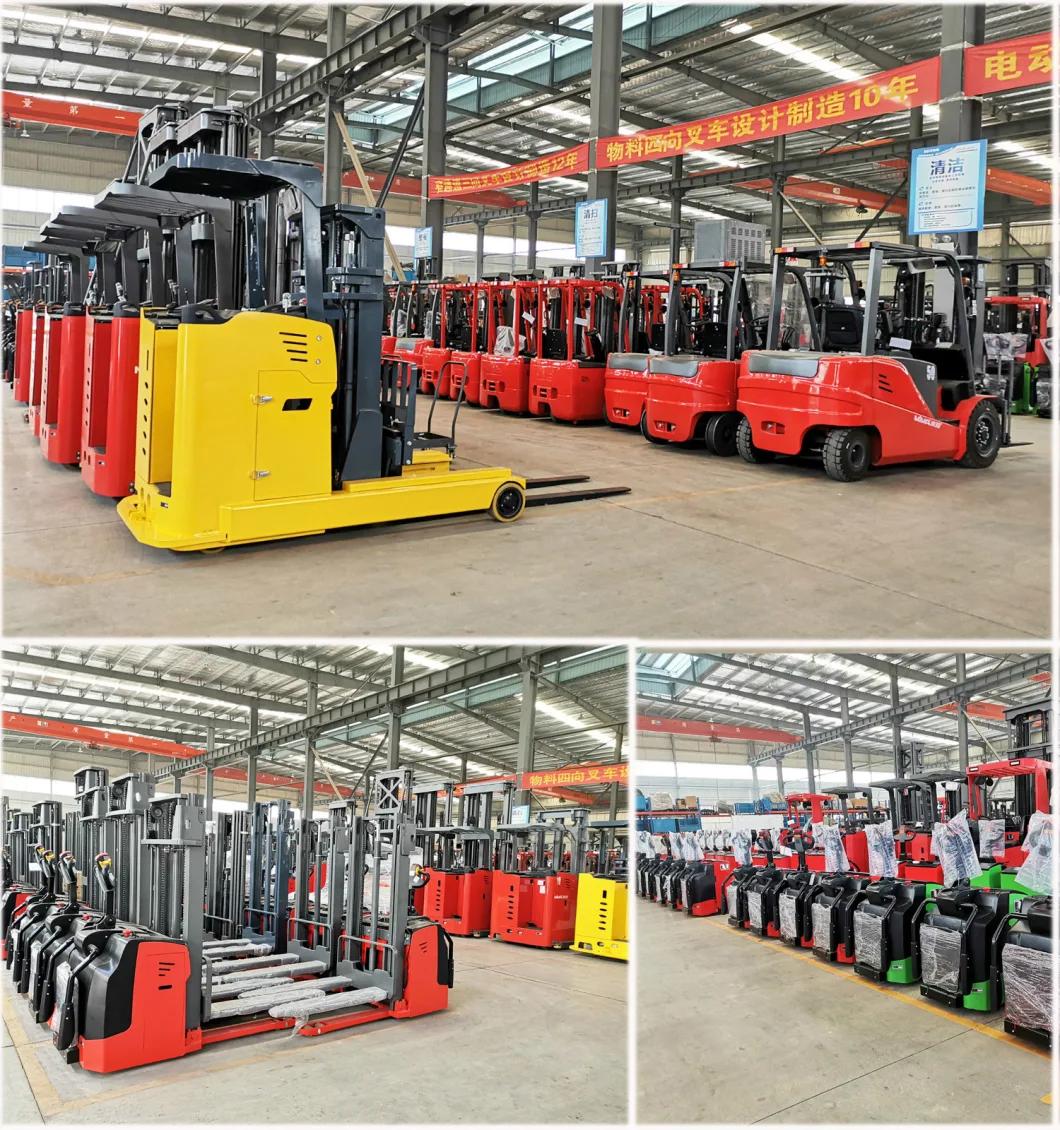

Warehouse



Many of our models are in stock, for more details please feel free to contact us.

Exhibition


FAQ

1.Are you factory or trading company?
We are the factory which have been manufacture electric forklift for more than 20 years.

2.What is the delivery time?
Generally it is can delivery immediately if the goods are in stock. Or it is 15-30 days if the goods are out of stock.

3.What is the Payment?
TT(bank transfer), LC at sight or Alibaba , all will be accepted.

4.Is OEM & ODM available?
1). We can do the product according your design
2). We can provide customized solutions according your requirments.

5.Can you provide training for the customer?
Yeah. We can provide training for our customer.

6.What certification do you have?
Our company has passed ISO 9001:2008 and all of the forklift have CE certification.

7.How can I get the best price?
Price is the most concerning problem of every customer,if you want to know the price.We need to know your detailed requirements.
