• Model NO.：LTR150
• Lift height：3000 mm
• Condition：New
• Engine：Weichai
• Rated Power：162 Kw
• Wheelbase：3900 mm
• Transmissions：Hydraulic
• Fork Size：1600*180*100 mm
• Tilt Angle：8,12 Deg
• Wheel Loader：4,2
• Self Weight：23800 Kg
• Rated Torque：1460 N.M
• Turning Radius：5500 mm
• Transport Package：Container
• Specification：23800 kg
• Trademark：LTMG
• Origin：China
• HS Code：84272090
• Production Capacity：500units,Year

GeneralManufacture LTMGModel LTR150Power type DieselRated loading capacity Kg15000Load center mm800





DimensionsLift heightmm3000Free lift height mm195Fork size mm1600×180×100Fork distanceMin./Max.mm400/1480Mast tilt anglcFront/Afterdeg8/12Front overhang mm950


Overall dimensionsOverall length mm75000Overallwidth mm2600Mast lowered heightmm2980Mast extended heightmm4380Overhead guard heightmm32000Turning radius mm5500Min.right angle aisle widthmm3500

Performance
No load/Full loadTraveling Speed  km/h25/24Lifting speadmm/sec320/270Max.grade abnlity%25Max. Pull force(full load)KN95Self weight kg23800

ChassisTreadFront 26.5-25Rear 26.5-25Treadwidth Frontmm1500Rearmm1550Wheelbase mm3900 Min.Ground clearance  (No load/Full load)Mast mm230/220Framemm245/240



Drive unit&controlBatteryV/AH24/100×2



Engine Manufacture  WD10G220E11Manufacture WEICHAIRated power Kw/rpm162/2300Rated torqueN.m/rpm1460/2400NO.of cylinder 6Bore×Stroke mm126×130Displace ment L9.726Fule tank capacityL200
TransmissionsTypeLHydraulicShift          Front/rear  2/1

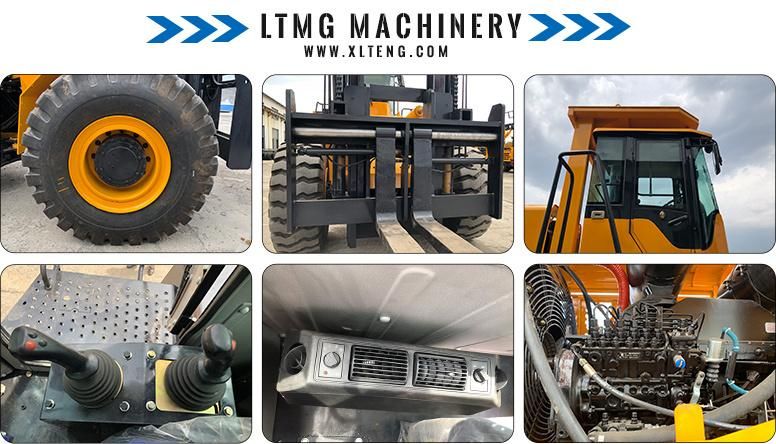

Product Features

Lifting capacity: 15 ton
4m lifting height 2-stage mast
Length of fork: 1800mm
Cab with A/C
Cummins engine
Joystick
Side shift and Fork positioner
ROPS/FOPS cabin
Suspension seat
23.5-25 Advance tyre

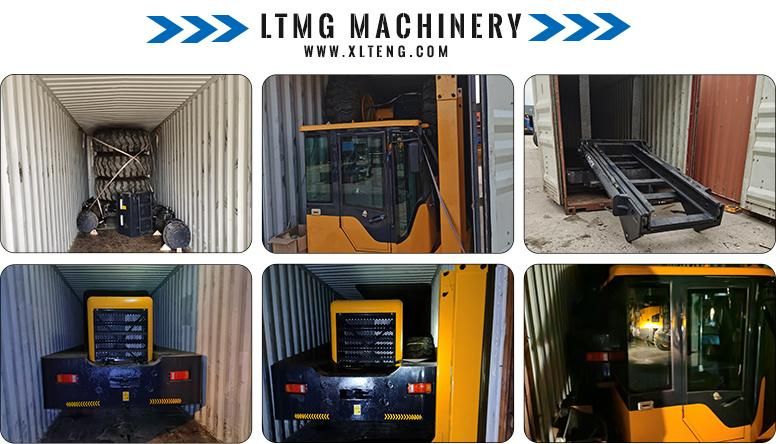

Shipping & Package

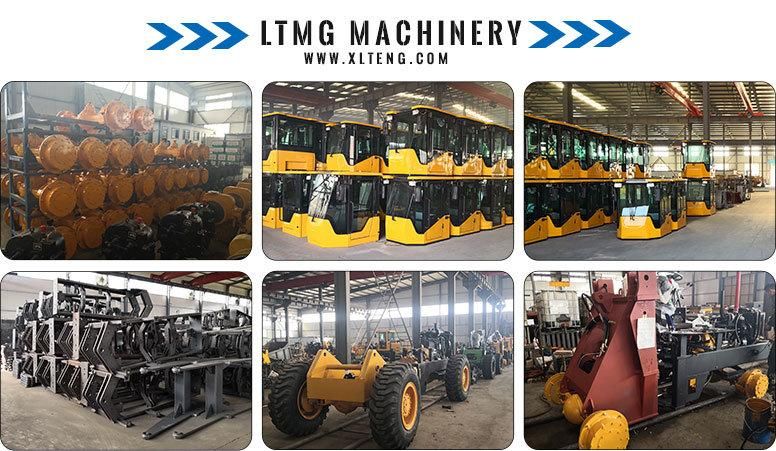

Company


Customer



After sales service

LTMG always treat after-sale service important as the same as product quality.

LTMG grants our clients a twelve-month-period or 2000-hours warranty for any machine purchased from us.

LTMG can also help clients coordinate with trained service personnel to provide you detailed and extensive knowledge about your specific machine. With our technical advises, your machine service life can be significantly prolonged and sustained with high capacity.
