• Model NO.：ERB14
• Lift height：3000~5000mm
• Condition：New
• Wheel Base：1115mm
• Battery：48V,75ah
• Fork Size：600*170*1150mm
• Turning Radius：1788mm
• Rated Capacity：1400kg
• Operating Type：Standing
• Service Weight：720kg
• Overall Length：1724mm
• Ground Clearance：25mm
• Transport Package：Container
• Specification：1724*800*2110mm
• Trademark：LTMG
• Origin：China
• HS Code：8428109000
• Production Capacity：800 Sets,Year

Basic Info.

Model NO. ERB14 Lift height 3000~5000mm Condition New Wheel Base 1115mm Battery 48V/75ah Fork Size 600*170*1150mm Turning Radius 1788mm Rated Capacity 1400kg Operating Type Standing Service Weight 720kg Overall Length 1724mm Ground Clearance 25mm Transport Package Container Specification 1724*800*2110mm Trademark LTMG Origin China HS Code 8428109000 Production Capacity 800 Sets/Year

Product Description

electric pallet truck 1.4 ton 1.5 ton 2 ton full electric reach stacker with ac motor

Product

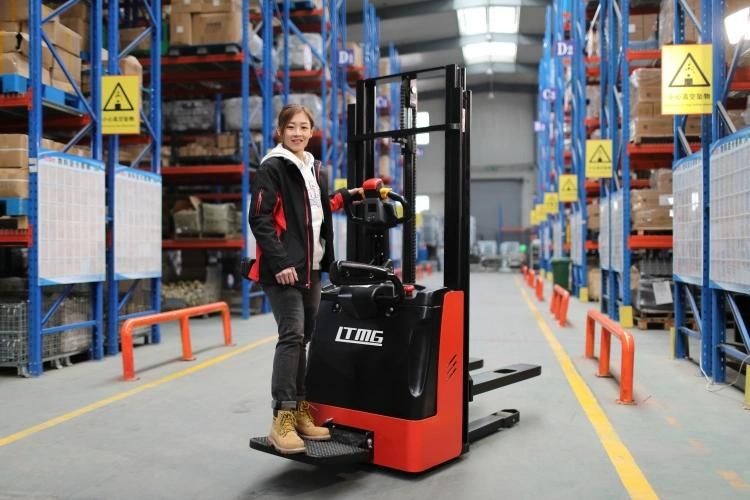

The features of electric stacker

1.Germany system technology of warehousing equipment and leading international level.

2. The product with the principle of human engineering, fully humanized design.

3. Easy-controlling by operatior and flexible when carrying cargoes.

4. Using USA or Italy electronic assembly control, the German import control handle and Italy Metalrota driving wheel,and fully guarantee the stability of vehicle.

5.Newly designed by domestic well-known designer, with beautiful appearance.

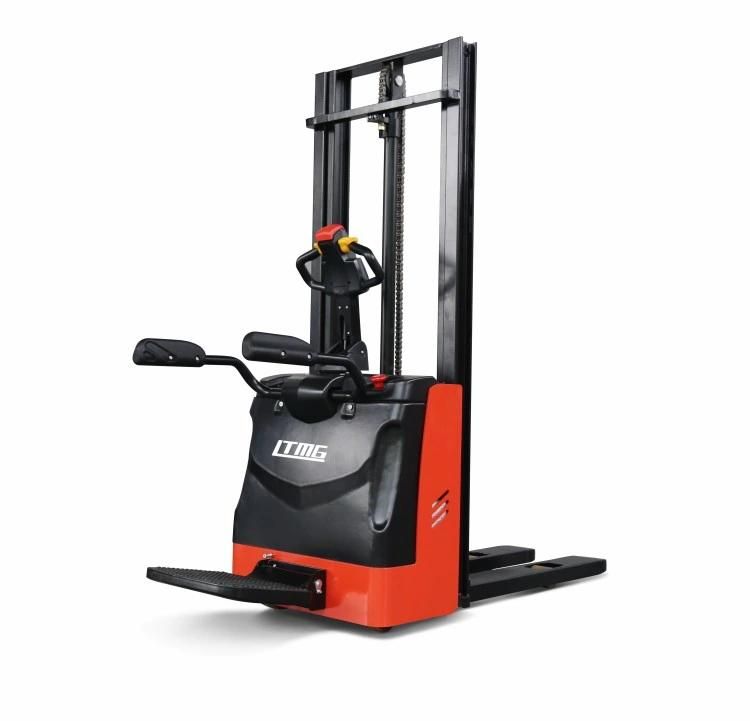

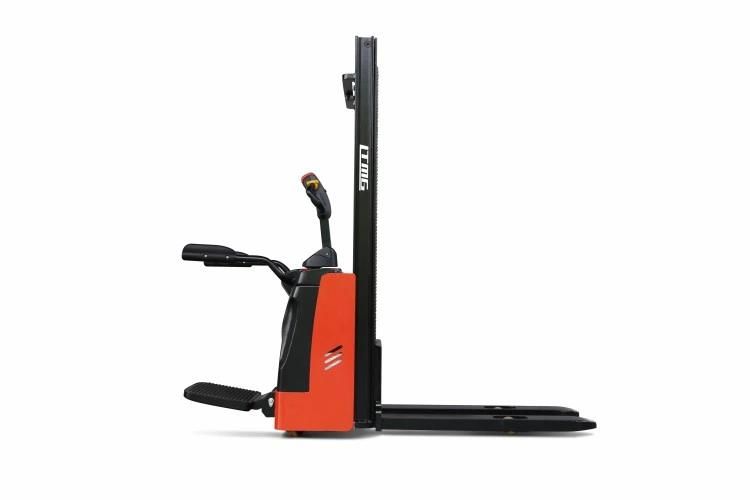

The Specification of 1.4 ton Electric reach stachker

1	Model designation			ERB14
2	Drive unit			Battery
3	Operator type			standing
4	rated capacity	Q	kg	1400
5	Load center distance	c	mm	600
6	Load distance,centre of drive axle to fork	x	mm	690
7	Wheelbase	y	mm	1115
7	Service weight (include battery)		kg	720
8	Axle loading, laden driving side/loading side		kg	590/1510
9	Axle loading, unladen  driving side/loading side		kg	520/200
10	Tyre type Driving wheels/Loading wheels			PU/PU
11	Wheels, number driving,caster/loading (x=drive wheels)		mm	1x +1/2
12	Track width, front,driving side	b10	mm	539
13	Track width,rear,loading side	b11	mm	436
14	Height, mast lowered	h1	mm	2110
15	Height, mast extended	h4	mm	3725
16	Height drawbar in driving position min./max.	h14	mm	1150/1480
16	Lowered height	h13	mm	88
17	Overall length	l1	mm	1724
18	Length to face of forks	l2	mm	574
19	Overall width	b1	mm	800
20	Fork dimensions	s/ e/ l	mm	600×170×1150
21	Fork carriage width	b3	mm	750
22	Distance between fork-arms	b5	mm	600
23	Ground clearance, center of wheelbase	m2	mm	25
24	Turning radius	Wa	mm	1788
25	Travel speed, laden/ unladen		km/ h	5.5/6
25	Lifting speed, laden/ unladen		m/ s	0.12/0.26
26	Service brake type			Electromagnetic
27	The maximum allowed size battery		mm	262×165×170
28	Battery voltage/nominal capacity K5		V/ Ah	48/75
29	Battery weight		kg	20×4
30	Type of drive unit			AC
31	Steering type			Mechanical

Delivery &Shipment


Clients

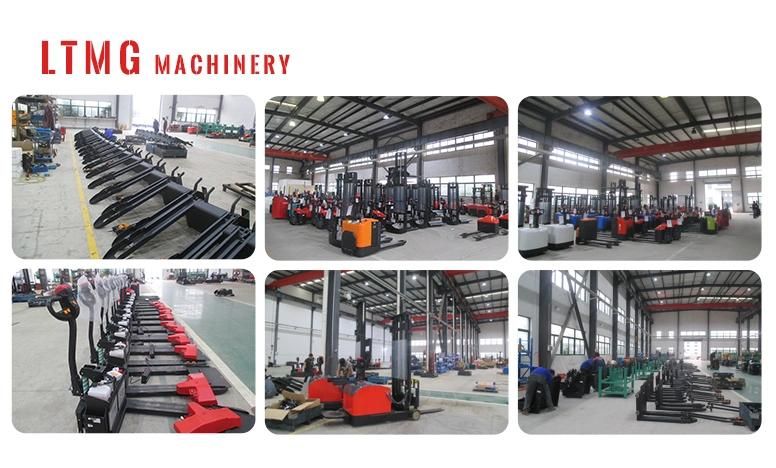

  Factory & Exhibition



After sales service:

LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.

All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.

Detail clauses and policies please check our website and product certificate.
