Factory Price Ltmg 8 Ton 9 Ton Empty Container Handler Forklift at Wharf
XIAMEN LTMG CO., LTD.- Cab Location：Adjustable
- Type：Container Forklift
- Power：Diesel Engine
- Load Capacity：5T - 10T
- Fuel：Diesel
- Load center：>500mm
Base Info
- Model NO.：CH90
- Lift height：>5000mm
- Condition：New
- Product Name：Factory Price Ltmg 8 Ton 9 Ton Empty Container Ha
- Lifting Height：21.4m
- Engine：Imported Engine
- Axle Brand：Kessler
- Transmission Brand：Germany Brand
- Cabin：with Air Conditioner
- Application：Wharf , Port
- Wheelbase：4520mm
- Tilt Angle：3 , 4
- Turning Radius：6300mm
- Transport Package：in Nude Package
- Specification：6850*4120*4326mm
- Trademark：LTMG
- Origin：Xiamen
- HS Code：8427209000
- Production Capacity：200PC,Year
Description
PERFORMANCESLoad capacity Kg 9000 8000 Maximum stacking layer 8 7 Lift speed, laden/unladen m/s 0.55 / 0.60 0.55 / 0.60 Lowering speed, laden/unladen m/s 0.60 / 0.60 0.60 / 0.60 Travel speed, laden/unladen km/h 26 / 28 25 / 27 Climbing ability, laden/unladen % 38 / - 30 / - Tractive force kN 157.5 107.5 DIMENSIONS Wheelbase y(mm) 4520 4020 Height of mast, lowered h1(mm) 12399 11091 Lift height h3(mm) 21400 16352 Tilt angle (forward / backward) α/β( / °) 3 / 4 3 / 4 Height of mast, extended h4(mm) 21818 19204 Height of cabin h6(mm) 4326 4326 Height, operator's seat h7(mm) 3226 3206 Twistlock height, lowered h13(mm) 2290 2290 Maximum twistlock height h3+h13(mm) 21216 18600 Overall length l1(mm) 6850 6450 Length to spreader face l2(mm) 6682 6277 Overall width b1/b2(mm) 4120 / 2570 3627 / 2398 Width of spreader 20'/40' b3(mm) 6050 / 12150 6050 / 12150 Turning radius Wa(mm) 6300 5700 Wheelspan, Front wheels b10(mm) 3280 2880 Wheelspan, Rear wheels b11(mm) 2171 2068 ENGINE Model CH90 CH80 Engine manufacturer / type Cum&mins / QSB6.7 Cum&mins / QSB6.7 Cylinder number / displacement 6 / 6700 cm3 6 / 6700 cm3 Rated power 164Kw @ 2200 rpm 129Kw @ 2200 rpm Maximum torque 949NM @ 1500 rpm 800NM @ 1500 rpm Rated current of alternator 100 A 70 A Battery 24 V (2 x 12 /110) 24 V (2 x 12 /110) TRANSMISSION Model CH90 CH80 Manufacturer / type ZF/3WG211 AUTO ZF/3WG211 AUTO Clutch - type Torque Converter Torque Converter Transmission Auto-shift/ Interlock Auto-shift / Interlock Gear number 3 F / 3 R 3 F / 3 R BRAKE SYSTEM Service brake: Wet-disc Parking brake: Brake enabled when power of DRIVE AXLE Model CH90 CH80 Driver axle manufacturer KESSLER / Germany KESSLER / Germany Type D81PL488 - NLB D81PL478 - NLB STEER AXLE Model CH90 CH80 Steering axle Manufacturer OMCI / Italy OMCI / Italy Type ASF Z16A1 Steering type-Single cylinder Double action cylinder Double action cylinder TYRES Drive wheels 14.00-24 28PR 12.00-24 24PR Steering wheels 14.00-24 28PR 12.00-24 24PR Type Pneumatic tyre Pneumatic tyre Pressure 10 bar 10 bar Quantity, Front / Rear 4 / 2 4 / 2

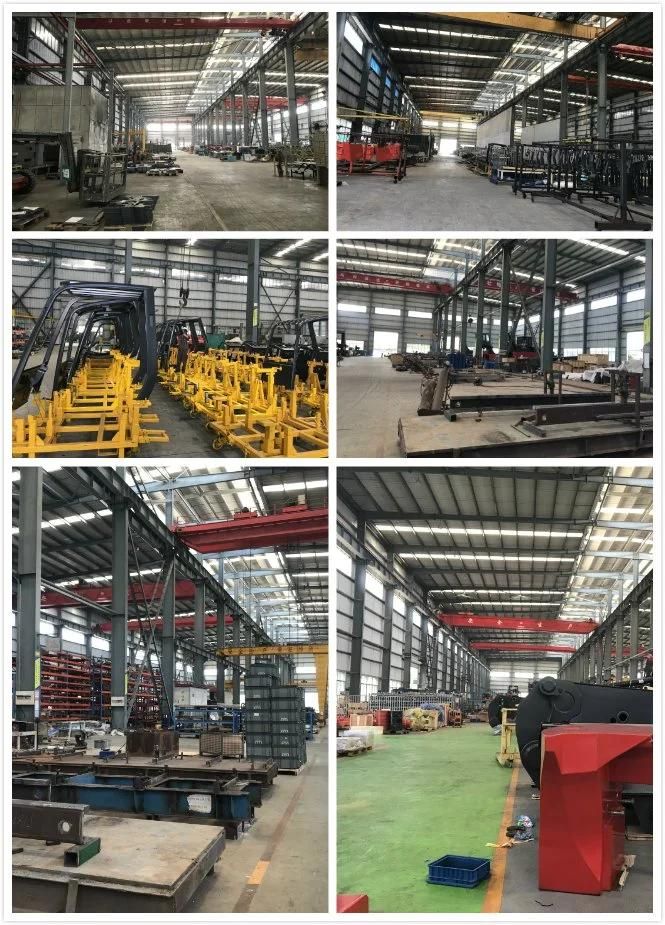

Our Factory
After-Sales Service
LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.
