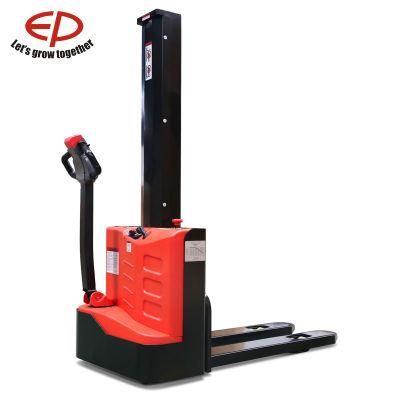

• Model NO.：ES12-25WA
• Lift height：3270
• Condition：New
• Rated Loading Capacity：1200kg
• Max. Lifting Height：3270mm
• Min. Lifting Height：60mm
• Fork Length：1070mm
• Fork Width：100mm
• Service Weight：1150kg
• Tyre Type：PU
• Travel Speed：5,5.5 Km,H
• Lifting Speed：0.127,0.23 M,S
• Battery Voltage：24V,210ah
• Transport Package：Standard Export Packing
• Specification：1947mm*1120mm*2110mm
• Trademark：EP
• Origin：Zhejiang
• HS Code：8427109000
• Production Capacity：50000,Year

Basic Info.

Model NO. ES12-25WA Lift height 3270 Condition New Rated Loading Capacity 1200kg Max. Lifting Height 3270mm Min. Lifting Height 60mm Fork Length 1070mm Fork Width 100mm Service Weight 1150kg Tyre Type PU Travel Speed 5/5.5 Km/H Lifting Speed 0.127/0.23 M/S Battery Voltage 24V/210ah Transport Package Standard Export Packing Specification 1947mm*1120mm*2110mm Trademark EP Origin Zhejiang HS Code 8427109000 Production Capacity 50000/Year

Product Description

Distinguishing mark
1.1	Manufacturer			EP
1.2	Model designation			ES12-25WA
1.3	Drive unit			Electrics
1.4	Operator type			pedestrian
1.5	rated capacity	Q	kg	1200
1.6	Load center distance	c	mm	600
1.8	Load distance,centre of drive axle to fork	x	mm	618
1.9	Wheelbase	y	mm	1320
Weight
2.1	Service weight (include battery)		kg	1150
2.2	Axle loading, laden driving side/loading side		kg	685/1525
2.3	Axle loading, unladen  driving side/loading side		kg	665/485
Types,Chassis
3.1	Tyre type Driving wheels/Loading wheels			PU/PU
3.2	Tyre size, driving wheels(diameter×width)		mm	Φ230x75
3.3	Tyre size, loading wheels(diameter×width)		mm	Φ102x50
3.4	Tyre size, caster wheels(diameter×width)		mm	-
3.5	Wheels, number driving,caster/loading (x=drive wheels)		mm	1x+0/4
3.6	Track width, front,driving side	b10	mm	-
3.7	Track width,rear,loading side	b11	mm	1045/1145/1245/1345

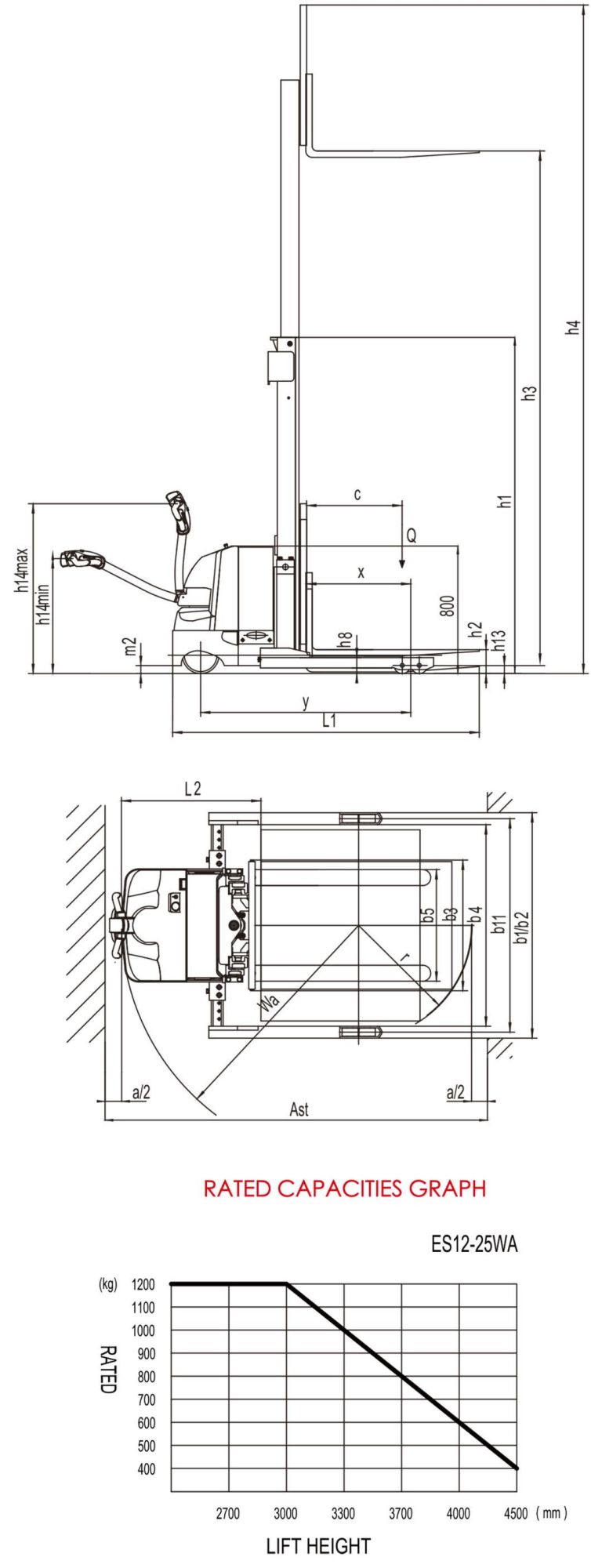

Dimensions
4.2	Height, mast lowered	h1	mm	2110
4.3	Free lift	h2	mm	150
4.4	Lift height	h3	mm	3270
4.5	Height, mast extended	h4	mm	4185
4.9	Height drawbar in driving position min./max.	h14	mm	715/1200
4.10	Height of wheel arms	h8	mm	100
4.15	Lowered height	h13	mm	60
4.19	Overall length	l1	mm	1947
4.20	Length to face of forks	l2	mm	877
4.21	Overall width	b1/ b2	mm	1120/1420
4.22	Fork dimensions	s/ e/ l	mm	40/100/1070
4.24	Fork carriage width	b3	mm	800
4.25	Distance between fork-arms	b5	mm	200-760
4.26	Ground clearance, laden, below mast	m1	mm	970-1270(adjustable)
4.32	Ground clearance, center of wheelbase	m2	mm	60
4.34.1	Aisle width for pallets 1000 × 1200 crossways	Ast	mm	2405
4.34.2	Aisle width for pallets 800 × 1200 lengthways	Ast	mm	2400
4.35	Turning radius	Wa	mm	1490
Performance data
5.1	Travel speed, laden/ unladen		km/ h	5.0/ 5.5
5.2	Lifting speed, laden/ unladen		m/ s	0.127/ 0.23
5.3	Lowering speed, laden/ unladen		m/ s	0.26/0.20
5.8	Max. gradeability, laden/unladen		%	8/ 16
5.10	Service brake type			Electromagnetic
Electric-engine
6.1	Drive motor rating S2 60 min		kW	1.1
6.2	Lift motor rating at S3 15%		kW	2.2
6.3	The maximum allowed size battery		mm	650/225/open
6.4	Battery voltage/nominal capacity K5		V/ Ah	24/210
6.5	Battery weight		kg	160
Addition data
8.1	Type of drive unit			AC
10.5	Steering type			Mechanical
10.7	Sound pressure level at the driver's ear		dB(A)	74
