• Model NO.：ES10-10MM
• Lift height：1940
• Condition：New
• Rated Loading Capacity：1000kg
• Max. Lifting Height：1940mm
• Min. Lifting Height：88mm
• Fork Length：1150mm
• Fork Width：170mm
• Service Weight：462kg
• Tyre Type：PU
• Travel Speed：3.5,4 Km,H
• Lifting Speed：0.12,0.22 M,S
• Battery Voltage：24V,85ah
• Transport Package：Standard Export Packing
• Specification：1615mm*800mm*1940mm
• Trademark：EP
• Origin：Zhejiang
• HS Code：8427109000
• Production Capacity：50000,Year

EP electric stacker Characteristics1.1Manufacturer EPEPEPEP1.2Model designation electric stacker
ES10-10MMelectric stacker
ES10-22MMelectric stacker
ES10-10ESelectric stacker

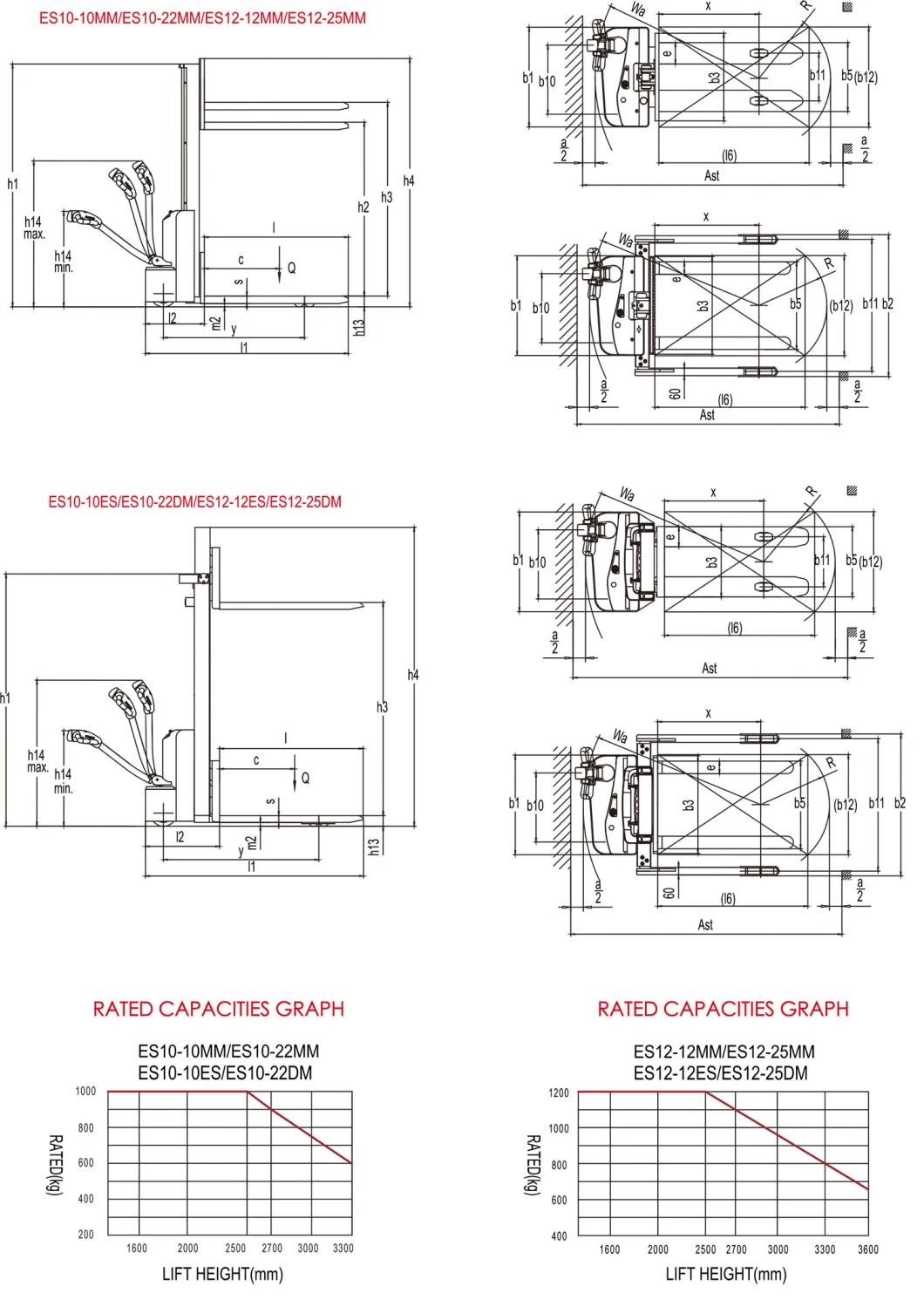

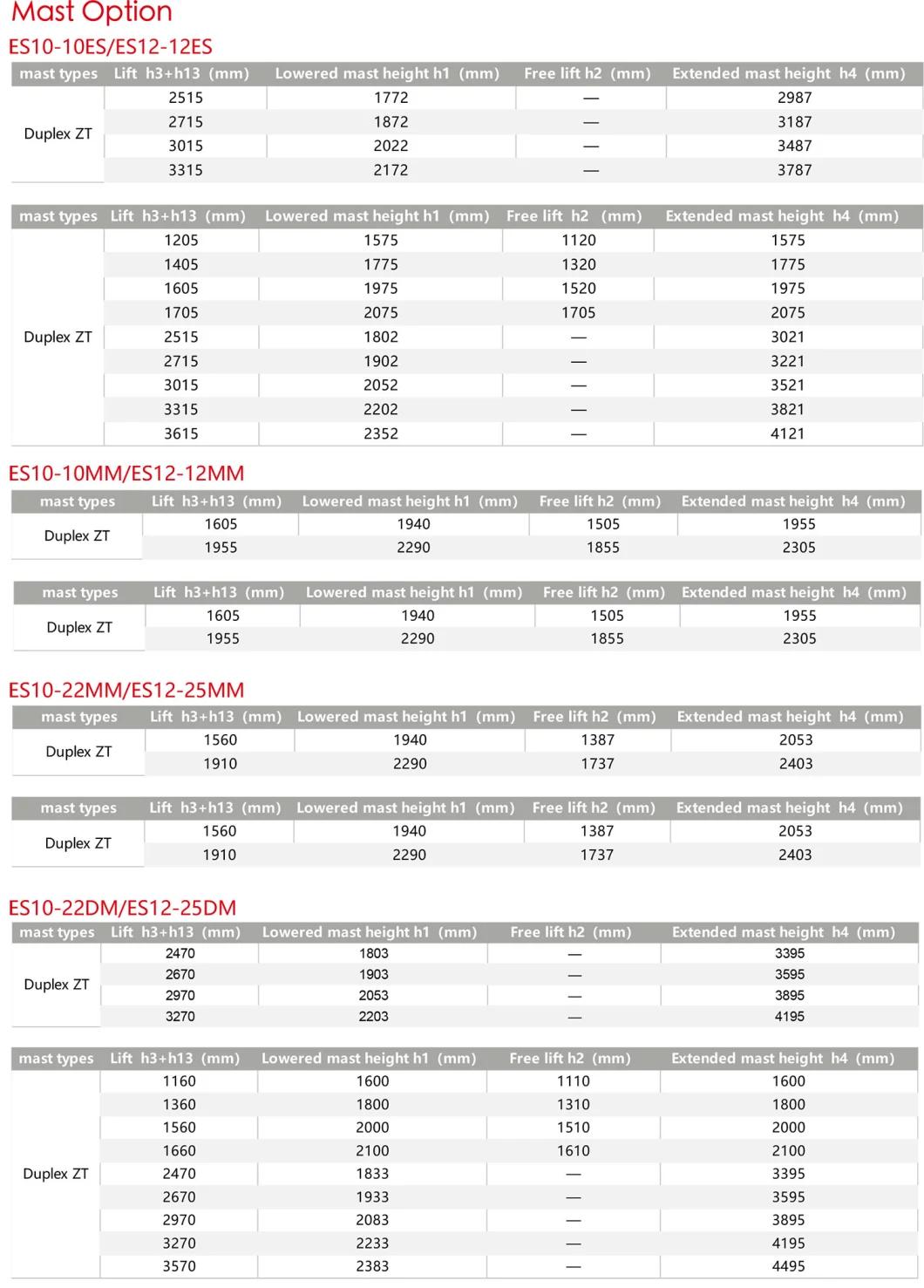

ES10-22DM1.4Operator type pedestrianpedestrianpedestrianpedestrian1.5Load capacityQ (kg)10001000100010001.6Load centerc (mm)6006006006001.8Load distancex(mm)8058507958451.9Wheelbasey(mm)1126121012401290Weights2.1Service weight (Incl. battery)kg4505404855952.2Axle loading, laden operator/load sidekg635/815680/860625/812705/8902.3Axle loading, unladen operator/load sidekg337/113417 / 123374/111475 / 120Wheels, Chassis3.1Tyre type PU/ PUPU/ PUPU/ PUPU/ PU3.2Tyre size, operator sidemmΦ210x70Φ210x70Φ210x70Φ210x703.3Tyre size, load sidemmΦ80x60Φ100x50Φ80x60Φ100x503.4Balance wheels(dimensions)mmΦ130x55Φ100x50Φ130x55Φ100x503.5Wheels, number operator/load side (x=drive wheels)mm1x+1/41x+1/41x+1/41x+1/4Dimensions4.2Height, mast loweredh1 (mm)19401940202020504.3Free lifth2 (mm)15051407004.4Lift heighth3 (mm)15201520293029304.5Height, mast extendedh4 (mm)19552053348738954.9Height of tiller arm in operating position, min/ maxh14(mm)860/1200860/1200860/1200860/12004.15Fork height, loweredh13 (mm)855085504.19Overall lengthl1 (mm)16151570174016504.20Length to face of forksl2 (mm)4655005905804.21Overall widthb1/ b2 (mm)8001135/1235/ 1335/14358001135/1235/ 1335 /14354.22Fork dimensionss/ e/ l (mm)60/ 170/ 115035/100/107055/160/115035/100/10704.25Outside fork width, minimum/ maximumb5 (mm)550200~700560200~7004.32Ground clearancem2 (mm)304030404.33Aisle width, 1000×1200 pallet crosswaysAst(mm)21372175222522554.34Aisle width, 800×1200 pallet lengthwaysAst(mm)20622100215021804.35Outer turning radiusWa/(mm)1295132914081408Performance5.1Travel speed, laden/ unladenkm/ h3.5/43.5/43.5/43.5/45.2Lifting speed, laden/ unladenm/s0.12/0.220.12/0.220.12/0.220.12/0.225.3Lowering speed, laden/ unladenm/s0.12/0.110.12/0.110.12/0.110.12/0.115.8Maximum gradeability, laden/ unladen S2 5 min.%3/ 103/ 103/103/105.10Service brake ElectromagneticElectromagneticElectromagneticElectromagneticDrive6.1Drive motor rating S2 60 min.kw0.650.650.650.656.2Lift motor rating at S3 15%kw2.22.22.22.26.4Battery voltage/ rated capacity (5h)V/Ah2×12/802×12/802×12/1052×12/1056.5Battery weight (with box)kg2x202x202x302x30 Battery compartment dimensions l/ w/ hmm260/172/215260/172/215305/165/210305/165/210
