• Model NO.：ES08-WAi
• Fuel：Electric
• Load center：600mm
• Lift height：1685
• Condition：New
• Rated Loading Capacity：800kg
• Max. Lifting Height：1685mm
• Min. Lifting Height：95mm
• Fork Length：1150mm
• Fork Width：190mm
• Service Weight：915kg
• Tyre Type：PU
• Travel Speed：5,5.5 Km,H
• Lifting Speed：0.14,0.2 M,S
• Battery Voltage：24V,224ah
• Transport Package：Standard Export Packing
• Specification：1776mm*738mm*1860mm
• Trademark：EP
• Origin：Zhejiang
• HS Code：8427109000
• Production Capacity：50000,Year

Basic Info.

Model NO. ES08-WAi Fuel Electric Load center 600mm Lift height 1685 Condition New Rated Loading Capacity 800kg Max. Lifting Height 1685mm Min. Lifting Height 95mm Fork Length 1150mm Fork Width 190mm Service Weight 915kg Tyre Type PU Travel Speed 5/5.5 Km/H Lifting Speed 0.14/0.2 M/S Battery Voltage 24V/224ah Transport Package Standard Export Packing Specification 1776mm*738mm*1860mm Trademark EP Origin Zhejiang HS Code 8427109000 Production Capacity 50000/Year

Product Description

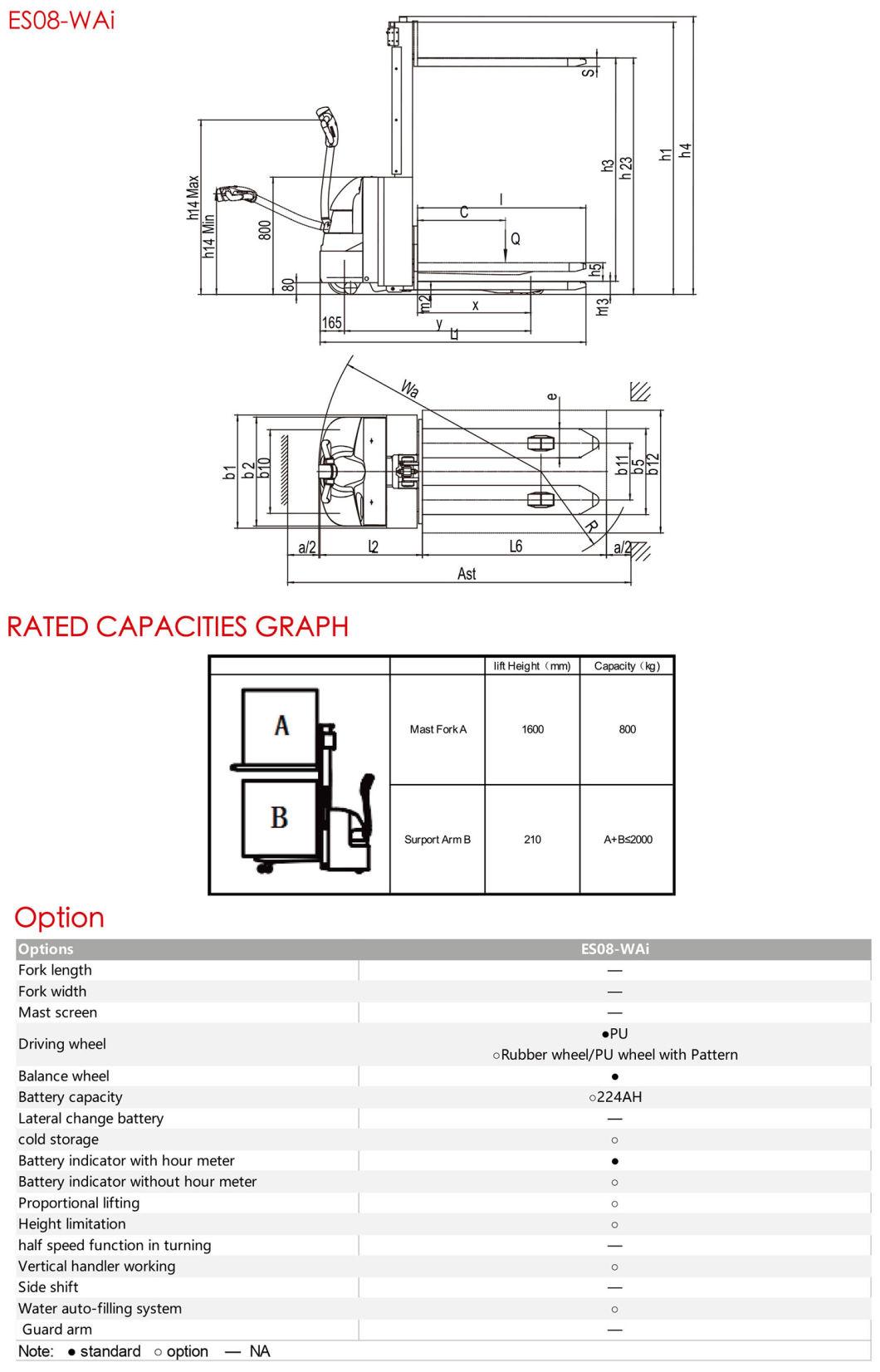

Distinguishing mark
1.1	Manufacturer			EP
1.2	Model designation			ES08-WAi
1.3	Drive unit			Electrics
1.4	Operator type			pedestrian
1.5	rated capacity	Q	kg	800
	Support arm capacity/fork and support arm capacity	Q	kg	2000
1.6	Load center distance	c	mm	600
1.8	Load distance,centre of drive axle to fork	x	mm	813
1.9	Wheelbase	y	mm	1275
Weight
2.1	Service weight (include battery)		kg	660
2.2	Axle loading, laden driving side/loading side		kg	750/1910
2.3	Axle loading, unladen  driving side/loading side		kg	450/210
Types,Chassis
3.1	Tyre type Driving wheels/Loading wheels			pu/pu
3.2	Tyre size, driving wheels(diameter×width)		mm	Ф230x75
3.3	Tyre size, loading wheels(diameter×width)		mm	Ф85x70
3.4	Tyre size, caster wheels(diameter×width)		mm	Ф85x48
3.5	Wheels, number driving,caster/loading (x=drive wheels)		mm	1 x  +2 / 4
3.6	Track width, front,driving side	b10	mm	505
3.7	Track width,rear,loading side	b11	mm	366
Dimensions
4.2	Height, mast lowered	h1	mm	1860
4.3	Free lift	h2	mm	1410
4.4	Lift	h3	mm	1480
	Lift height	h23	mm	1685
4.5	Height, mast extended	h4	mm	1895
4.6	Initial lift	h5	mm	120
4.9	Height drawbar in driving position min./max.	h14	mm	715  / 1200
4.15	Lowered height	h13	mm	95
4.19	Overall length	l1	mm	1776
4.20	Length to face of forks	l2	mm	666
4.21	Overall width	b1/ b2	mm	738/710
4.22	Fork dimensions	s/ e/ l	mm	60/190/1150
4.24	Fork carriage width	b3	mm	680
4.25	Distance between fork-arms	b5	mm	560
4.31	Ground clearance, laden, below mast	m1	mm	30
4.32	Ground clearance, center of wheelbase	m2	mm	30
4.34.1	Aisle width for pallets 1000 × 1200 crossways	Ast	mm	2274
4.34.2	Aisle width for pallets 800 × 1200 lengthways	Ast	mm	2198
4.35	Turning radius	Wa	mm	1442
Performance data
5.1	Travel speed, laden/ unladen		km/ h	5/5.5
5.2	Lifting speed, laden/ unladen		m/ s	0.14/0.2
5.3	Lowering speed, laden/ unladen		m/ s	0.2/0.13
5.8	Max. gradeability, laden/unladen		%	8/16
5.10	Service brake type			Electromagnetic
Electric-engine
6.1	Drive motor rating S2 60 min		kW	1.27
6.2	Lift motor rating at S3 15%		kW	2.2
6.3	The maximum allowed size battery		mm	260x260x180
6.4	Battery voltage/nominal capacity  K20		V/ Ah	4x6v/224
6.5	Battery weight		kg	4x30
Addition data
8.1	Type of drive unit			AC
10.5	Steering type			Mechanical
10.7	Sound pressure level at the driver's ear		dB(A)	74
