• Model NO.：ES16-16RAS
• Lift height：2950
• Condition：New
• Rated Loading Capacity：1600kg
• Max. Lifting Height：2950mm
• Min. Lifting Height：88mm
• Fork Length：1150mm
• Fork Width：190mm
• Service Weight：1350kg
• Tyre Type：PU
• Travel Speed：5.5,6 Km,H
• Lifting Speed：0.13,0.16 M,S
• Battery Voltage：24V,280ah
• Transport Package：Standard Export Packing
• Specification：2003mm*850mm*2020mm
• Trademark：EP
• Origin：Zhejiang
• HS Code：8427109000
• Production Capacity：50000,Year

Basic Info.

Model NO. ES16-16RAS Lift height 2950 Condition New Rated Loading Capacity 1600kg Max. Lifting Height 2950mm Min. Lifting Height 88mm Fork Length 1150mm Fork Width 190mm Service Weight 1350kg Tyre Type PU Travel Speed 5.5/6 Km/H Lifting Speed 0.13/0.16 M/S Battery Voltage 24V/280ah Transport Package Standard Export Packing Specification 2003mm*850mm*2020mm Trademark EP Origin Zhejiang HS Code 8427109000 Production Capacity 50000/Year

Product Description

Specification:


Distinguishing mark
1.1	Manufacturer			EP	EP	EP
1.2	Model designation			ES14-14RAS	ES16-16RAS	ES20-20RAS
1.3	Drive unit			Battery	Battery	Battery
1.4	Operator type			Standing	Standing	Standing
1.5	rated capacity	Q	kg	1400	1600	2000
1.6	Load center distance	c	mm	600	600	600
1.8	Load distance,centre of drive axle to fork	x	mm	693	693	693
1.9	Wheelbase	y	mm	1394	1394	1394
Weight
2.1	Service weight (include battery)		kg	1320	1350	1350
2.2	Axle loading, laden driving side/loading side		kg	950/1770	980/1970	1100/2250
2.3	Axle loading, unladen  driving side/loading side		kg	925/395	950/400	950/400
Types,Chassis
3.1	Tyre type Driving wheels/Loading wheels			PU/PU	PU/PU	PU/ PU
3.2	Tyre size, driving wheels(diameter×width)		mm	Ф230×75	Ф230×75	Ф230×75
3.3	Tyre size, loading wheels(diameter×width)		mm	Ф85×70	Ф85×70	Ф85×70
3.4	Tyre size, caster wheels(diameter×width)		mm	Ф130×55	Ф130×55	Ф130×55
3.5	Wheels, number driving,caster/loading (x=drive wheels)		mm	1x +2/4	1x +2/4	1x +2/4
3.6	Track width, front,driving side	b10	mm	634	634	634
3.7	Track width,rear,loading side	b11	mm	380	380	410/495

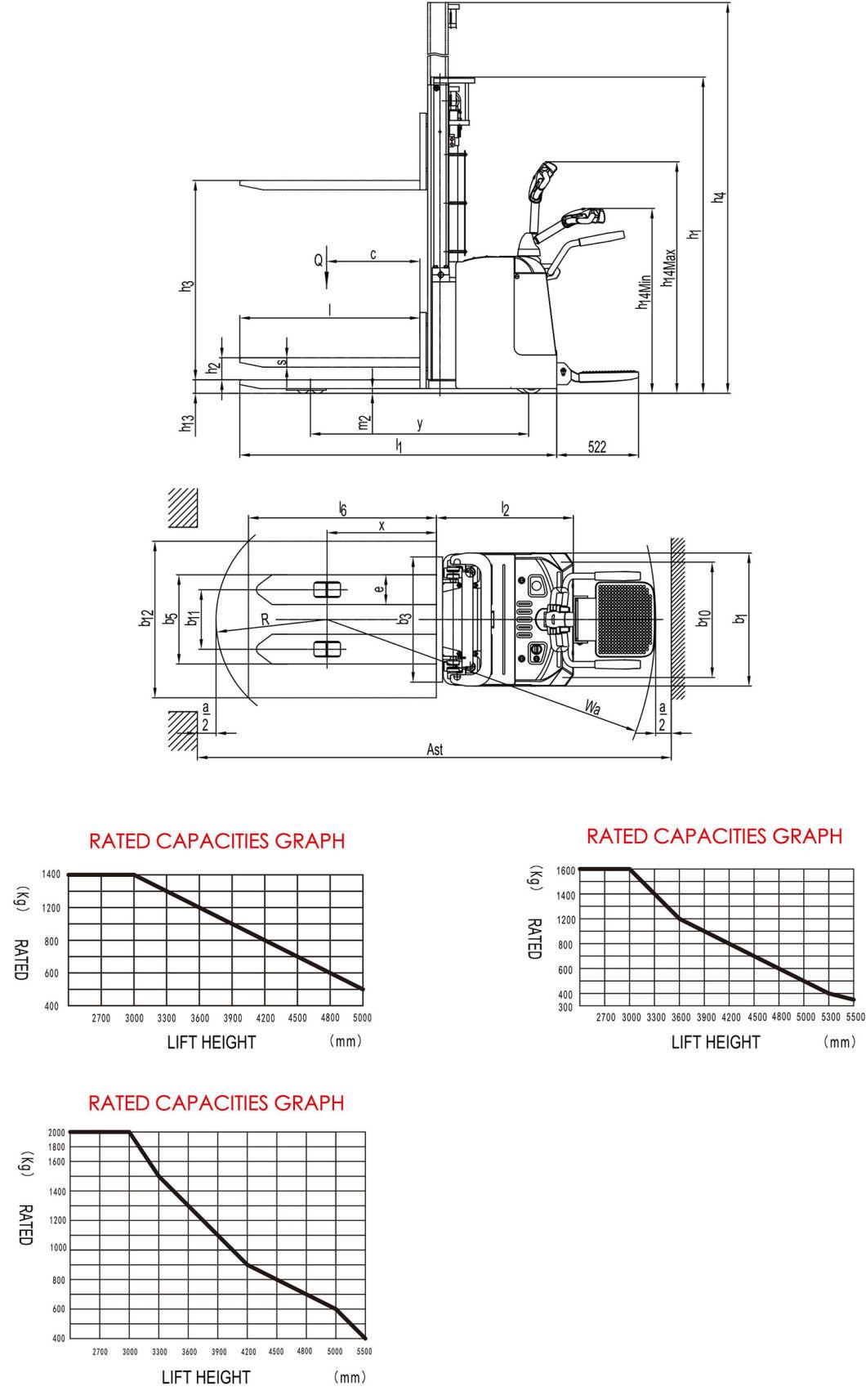

Dimensions
4.2	Height, mast lowered	h1	mm	2020	2020	2020
4.3	Free lift	h2	mm	100	100	100
4.4	Lift height	h3	mm	2950	2950	2950
4.5	Height, mast extended	h4	mm	3465	3465	3465
4.9	Height drawbar in driving position min./max.	h14	mm	1150/1480	1150/1480	1150/1480
4.15	Lowered height	h13	mm	88	88	88
4.19	Overall length	l1	mm	2003	2003	2003
4.20	Length to face of forks	l2	mm	860	860	860
4.21	Overall width	b1	mm	850	850	850
4.22	Fork dimensions	s/ e/ l	mm	60×190×1150	60×190×1150	60×190×1150
4.24	Fork carriage width	b3	mm	800	800	800
4.25	Distance between fork-arms	b5	mm	570	570	600/685
4.32	Ground clearance, center of wheelbase	m2	mm	28	28	28
4.34.1	Aisle width for pallets 1000 × 1200 crossways	Ast	mm	2610/2971	2610/2971	2610/2971
4.34.2	Aisle width for pallets 800 × 1200 lengthways	Ast	mm	2580/2941	2580/2941	2580/2941
4.35	Turning radius	Wa	mm	1738/2099	1738/2099	1738/2099
Performance data
5.1	Travel speed, laden/ unladen		km/ h	5.5/6.0	5.5/6.0	4.5/5.0
5.2	Lifting speed, laden/ unladen		m/ s	0.13/0.16	0.13/0.16	0.1/ 0.16
5.3	Lowering speed, laden/ unladen		m/ s	0.32/0.23	0.32/0.23	0.33/ 0.23
5.8	Max. gradeability, laden/unladen		%	8/16	8/16	6/ 12
5.10	Service brake type			Electromagnetic	Electromagnetic	Electromagnetic
Electric-engine
6.1	Drive motor rating S2 60 min		kW	1.6	1.6	1.6
6.2	Lift motor rating at S3 15%		kW	3.0	3.0	3.0
6.3	The maximum allowed size battery		mm	834×216×630	834×216×630	834×216×630
6.4	Battery voltage/nominal capacity K5		V/ Ah	24/230	24/280	24/280
6.5	Battery weight		kg	210	240	240
Addition data
8.1	Type of drive unit			AC	AC	AC
10.5	Steering type			Electronic Steering	Electronic Steering	Electronic Steering
10.7	Sound pressure level at the driver's ear		dB (A)	74	74	74
