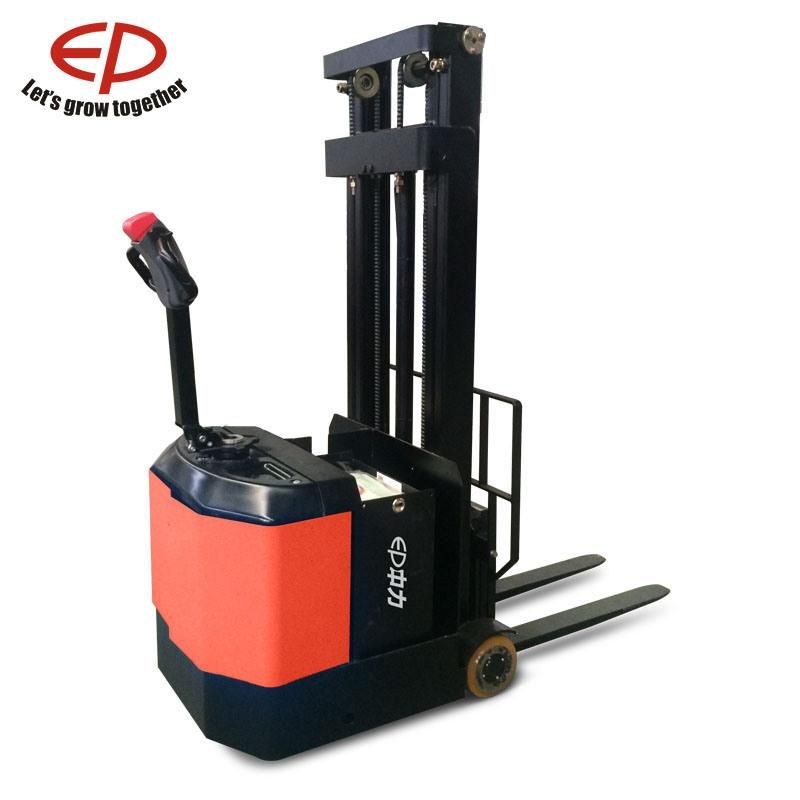

Small Turning Radius Required AC Electric Stacker for Non-Standard Pallet
ZHEJIANG EP EQUIPMENT IMP. & EXP. CO., LTD.- Cab Location：Not Adjustable
- Type：Stacker
- Power：AC Motor
- Load Capacity：600kg
- Fuel：Electric
- Load center：500mm
Base Info
- Model NO.：ES06-CA
- Lift height：2920mm
- Condition：New
- Turning Radius：920mm
- Service Weight(Include Battery)：1300kg
- Fork Length：920mm
- Fork Width：200-560mm
- Lowered Height：50mm
- Wheelbase：700mm
- Tyre Type：PU
- Operator Type：Pedestrian
- Battery Voltage：24V,165ah
- Travel Speed,Laden/Unladen：4.5 Km,H
- Lifting Speed,Laden/Unladen：0.127,0.23 M,S
- Lowering Speed,Laden/Unladen：0.26,0.2
- Steering Type：Mechanical
- Service Brake Type：Electromagnetic
- Battery Weight：160kg
- Transport Package：Standard
- Specification：1920*850*2035mm
- Trademark：EP
- Origin：Zhengjiang, China
- HS Code：8427209000
- Production Capacity：4000 Units,Year
Description

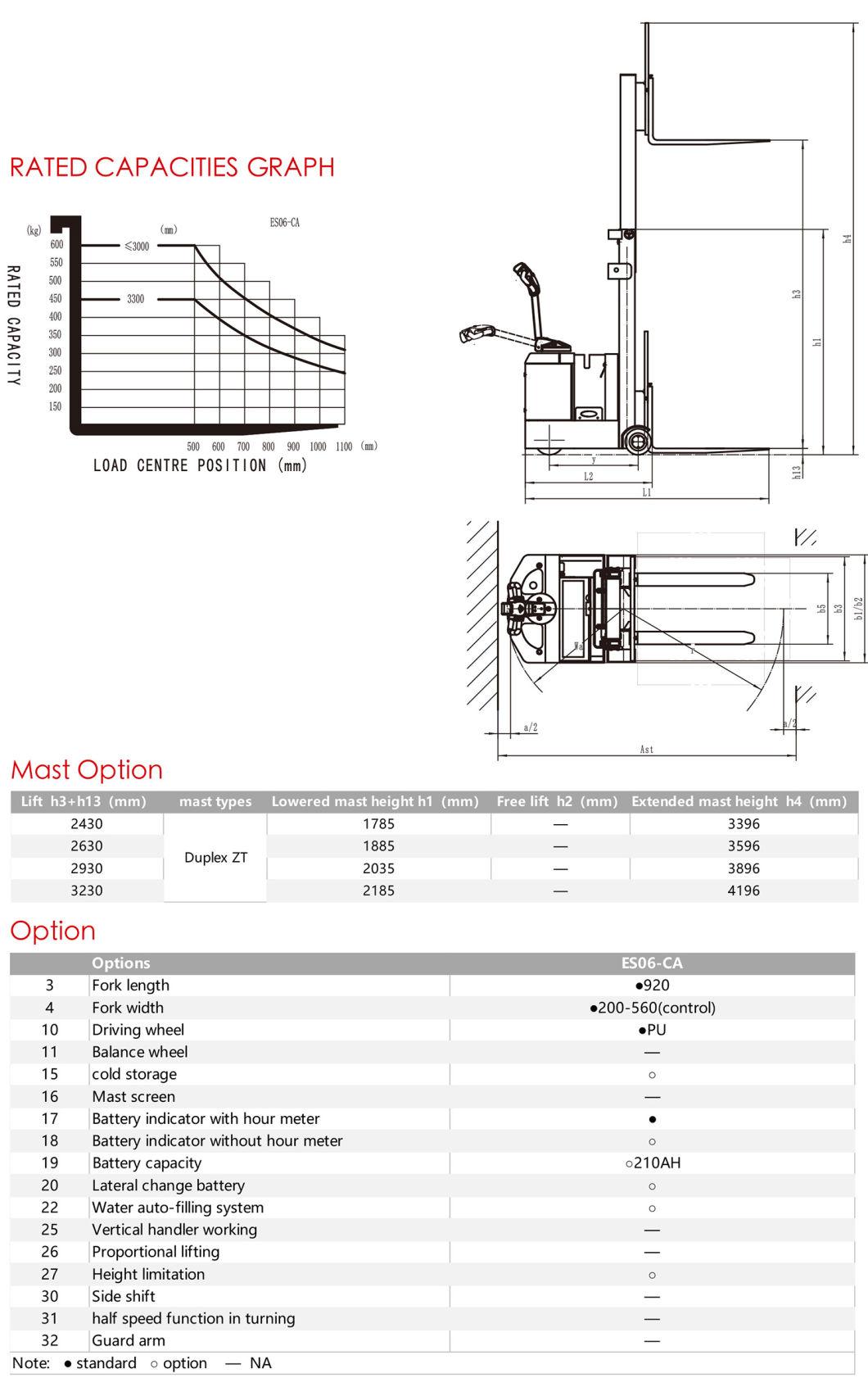

Distinguishing mark 1.1 Manufacturer EP 1.2 Model designation ES06-CA 1.3 Drive unit Electrical 1.4 Operator type pedestrian 1.5 rated capacity Q kg 600 1.6 Load center distance c mm 500 1.8 Load distance,centre of drive axle to fork x mm 109 1.9 Wheelbase y mm 700 Weight 2.1 Service weight (include battery) kg 1300 2.2 Axle loading, laden driving side/loading side kg 300/1900 2.3 Axle loading, unladen driving side/loading side kg 860/440 Types,Chassis 3.1 Tyre type Driving wheels/Loading wheels PU/PU 3.2 Tyre size, driving wheels(diameter×width) mm Φ230× 75 3.3 Tyre size, loading wheels(diameter×width) mm Φ204×76 3.4 Tyre size, caster wheels(diameter×width) mm - 3.5 Wheels, number driving,caster/loading (x=drive wheels) mm 1x,0/2 3.6 Track width, front,driving side b10 mm 722 3.7 Track width,rear,loading side b11 mm - Dimensions 4.1 Tilt of mast/fork carriage forward/backward α/β ° / 4.2 Height, mast lowered h1 mm 2035 4.3 Free lift h2 mm / 4.4 Lift height h3 mm 2920 4.5 Height, mast extended h4 mm 3896 4.9 Height drawbar in driving position min./max. h14 mm 990/1500 4.10 Height of wheel arms h8 mm 230 4.15 Lowered height h13 mm 50 4.19 Overall length l1 mm 1920 4.20 Length to face of forks l2 mm 1000 4.21 Overall width b1/ b2 mm 850/798 4.22 Fork dimensions s/ e/ l mm 35/100/920 4.24 Fork carriage width b3 mm 820 4.25 Distance between fork-arms b5 mm 200-560 4.31 Ground clearance, laden, below mast m1 mm 50 4.32 Ground clearance, center of wheelbase m2 mm 50 4.34.1 Aisle width for pallets 1000 × 1200 crossways Ast mm 2380 4.34.2 Aisle width for pallets 800 × 1200 lengthways Ast mm 2490 4.35 Turning radius Wa mm 920 Performance data 5.1 Travel speed, laden/ unladen km/ h 4.5 5.2 Lifting speed, laden/ unladen m/ s 0.127/0.23 5.3 Lowering speed, laden/ unladen m/ s 0.26/0.2 5.8 Max. gradeability, laden/unladen % 5.0/8.0 5.10 Service brake type Electromagnetic Electric-engine 6.1 Drive motor rating S2 60 min kW 1.5 6.2 Lift motor rating at S3 15% kW 2.2 6.3 The maximum allowed size battery mm 660/230/open 6.4 Battery voltage/nominal capacity K5 V/ Ah 24/165 6.5 Battery weight kg 160 Addition data 8.1 Type of drive unit AC 10.5 Steering type Mechanical 10.7 Sound pressure level at the driver's ear dB(A) 74
