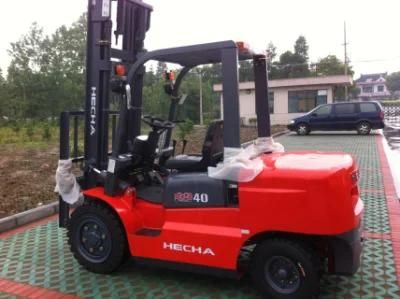

Hecha 4 Ton Diesel of Forklift Truck with Isuzu Engine
HECHA INTELLIGENT EQUIPMENT CO., LTD.- Type：Diesel
- Power：Diesel Engine
- Load Capacity：1T - 5T
- Colour：Red
- Transport Package：Without Package
- Specification：CE ISO9001: 2008 GOST
Base Info
- Model NO.：FD40T
- Trademark：HECHA
- Origin：China
- HS Code：8427209000
- Production Capacity：2000PCS Years
Description
500Lifting height mm 3000 Operating at maximum height mm 4230 Mast tilt angle
6 // 12 degree Hold under mast mm 160 Turning Radius mm 2760 2760 2800 Drive speeds(F/B) Km/h 19//11 Lifting speed mm/s 410/430 410/430 380/430 Falling speed mm/s 380 Gradeability % 20 20 18 Complete size(LxW) mm 4170x1480 4170x1480 4214x1480 Fork size(LxWxT) 1070x150x55 No fork size 3060 3060 3104 Closed mast height 2245 Overhead guard height 2350 Fork spacing adjustment mm 300-1340 Wheelbase mm 2000 Wheel distance(F/B) mm 1180/1190 Stopping distance (Unloaded) mm 6000 Tire(F/B) - 300-15-18PR/7.00-12-12PR Engine model - LR4B3-G88 Engine displacement L 4.58 Rate power/speed Kw/Rpm 57/2200 Engine rate torque Nm/rpm 285/1300-1500 Fule tank capacity L 80 Total weight Kg 6190 6380 6700
