• Model NO.：CPD15T3
• Condition：New
• Item：1.5ton 3-Wheel Electric Forklift
• Item No：Cpd15t3
• Standard Lift Height：3000mm
• Fork Size：40×100×920mm
• Capacity：1500kg
• Overall Size：3160*1080*2080mm
• Turning Radius：2175mm
• Battery Weight：588mm
• Service Weight：2300kg
• Warrenty：12month
• Transport Package：Seaworthy Packing
• Specification：CE, SGS, ISO
• Trademark：SHYTGER
• Origin：Shanghai, China
• HS Code：84279000
• Production Capacity：3000units,Year

 Characteristics1.1Manufacturer HYTGER1.2Model designation CPD15T31.3Drive unit Battery1.4Operator type Rider seated1.5Load capacityQ (kg)15001.6Load centerc (mm)5001.7Load distancex (mm)3581.8Wheelbasey (mm)1410 Weights2.1Service weightkg23002.2Axle loading, laden front/ rearkg3440/3602.3Axle loading, unladen front/ rearkg970/1330 Wheels, Chassis3.1Tyre type Pneumatic tyre3.2Tyre size, front 6.0-93.3Tyre size, rear 15X4.5-83.5Wheels, number front/ rear (x=drive wheels) 2x/ 23.6Tread, frontb10 (mm)8903.7Tread, rearb11 (mm)180 Dimensions4.10Mast/ fork carriage tilt, forward/ backwardα/ β (°)6/114.11Height, mast loweredh1 (mm)20804.12Free lifth2 (mm)1204.13Lift heighth3 (mm)30004.14Height, mast extendedh4 (mm)40154.15Height of overhead guard (cabin)h6 (mm)20804.16Seat heighth7 (mm)9854.17Overall lengthl1 (mm)31604.18Length to face of forksl2 (mm)22404.19Overall widthb1/ b2 (mm)10804.20Fork dimensionss/ e/ l (mm)40×100×9204.21Fork carriage type A,B 2A4.22Fork carriage widthb3 (mm)10404.23Ground clearance, laden, below mastm1 (mm)904.24Ground clearance, center of wheelbasem2 (mm)1004.25Aisle width, 1000×1200 pallet crosswaysAst (mm)42654.26Aisle width, 800×1200 pallet lengthwaysAst (mm)42904.27Turning radiusWa (mm)2175 Performance5.1Travel speed, laden/ unladenkm/ h10/125.2Lifting speed, laden/ unladenm/ s0.25/0.45.3Lowering speed, laden/ unladenm/ s0.45/0.445.4Maximum drawbar pull, laden S2 5 min.N110005.5Maximum gradeability, laden/ unladen S2 5 min.%10.5/ 145.6Service brake Hydraulic/mechanical Drive6.1Drive motor rating S2 60 min.kW5.56.2Lift motor rating at S3 15%kW7.56.3Battery dimensions l/ w/ hmm1000*377*7606.4Battery voltage/ rated capacity (5h)V/ Ah48/3006.5Battery weightkg588 Others7.1Type of drive control  AC    ZAPI7.2Sound level at operator's eardB (A)70

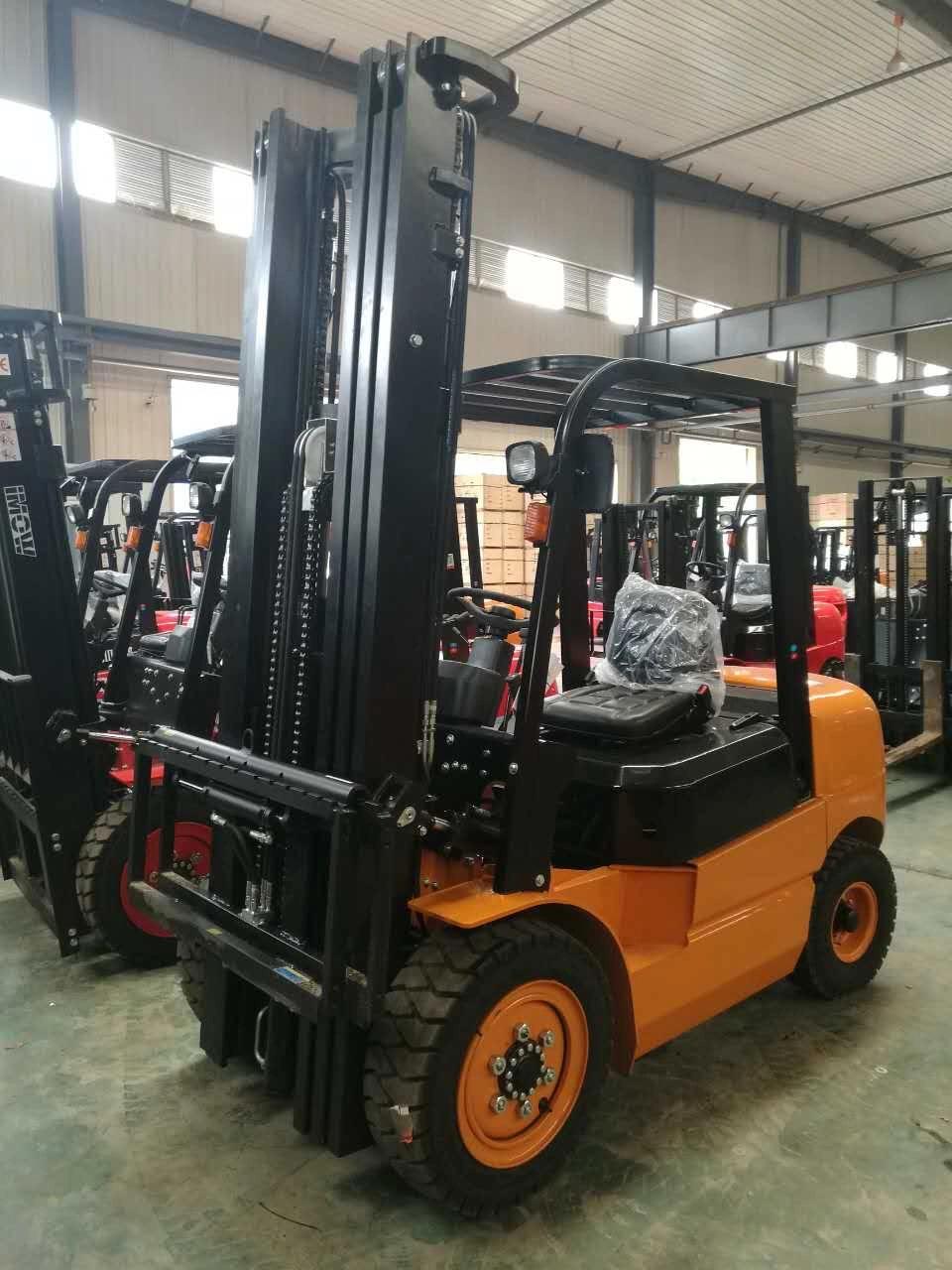

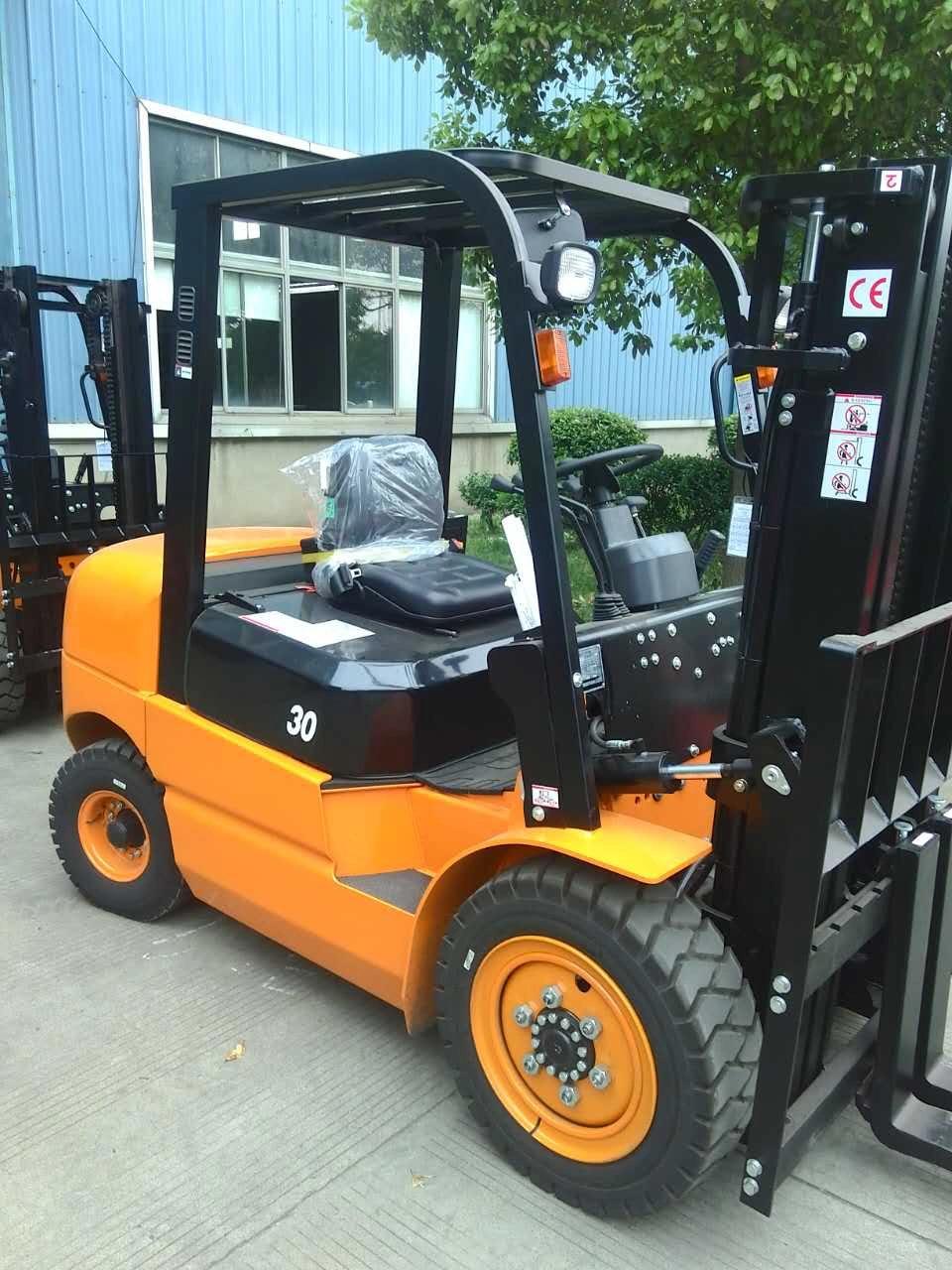

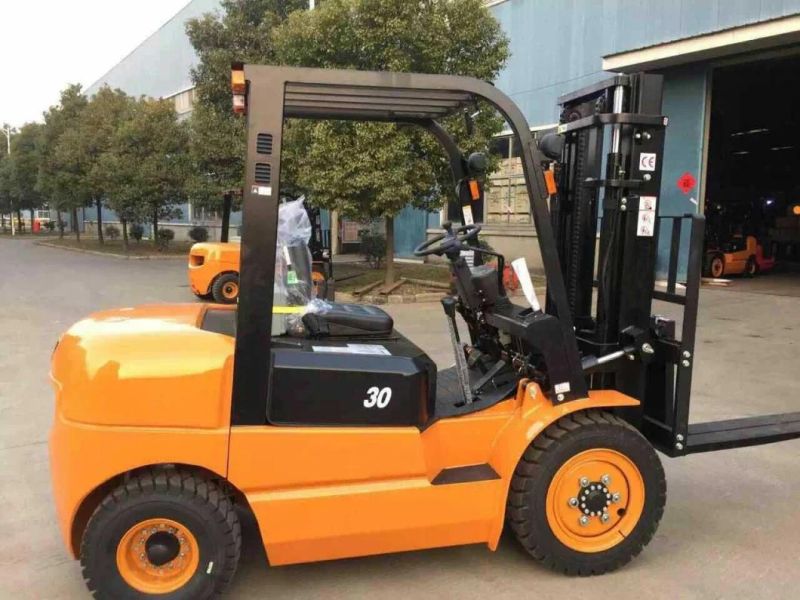

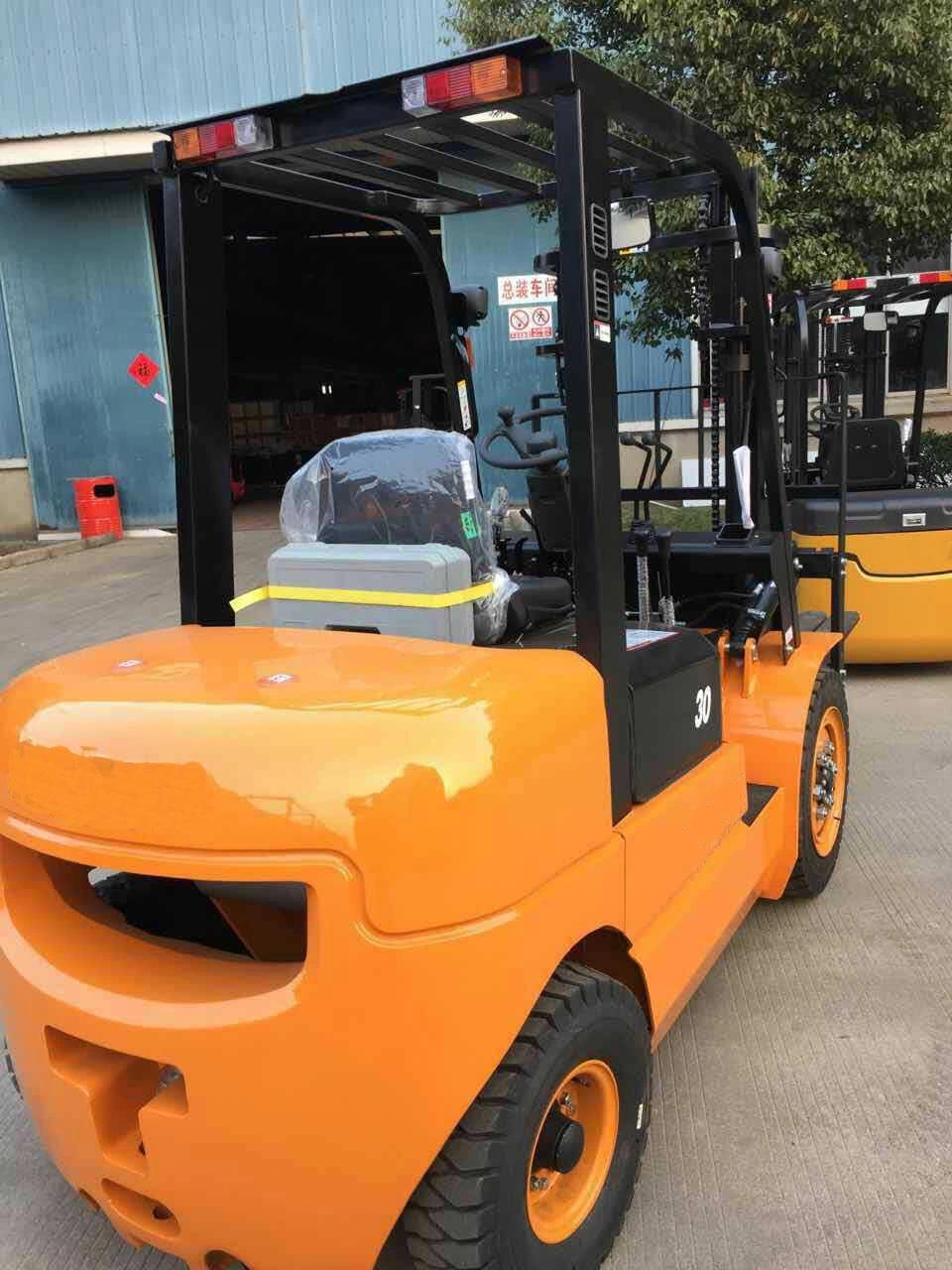

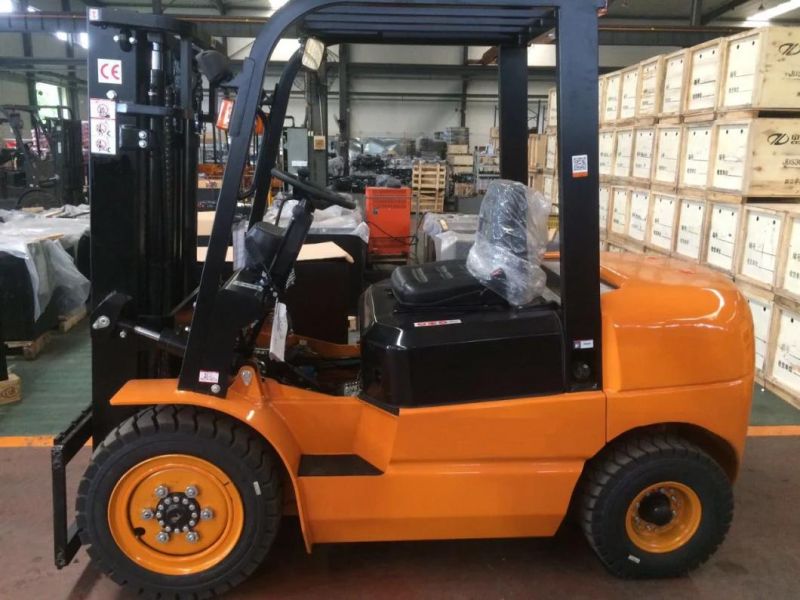

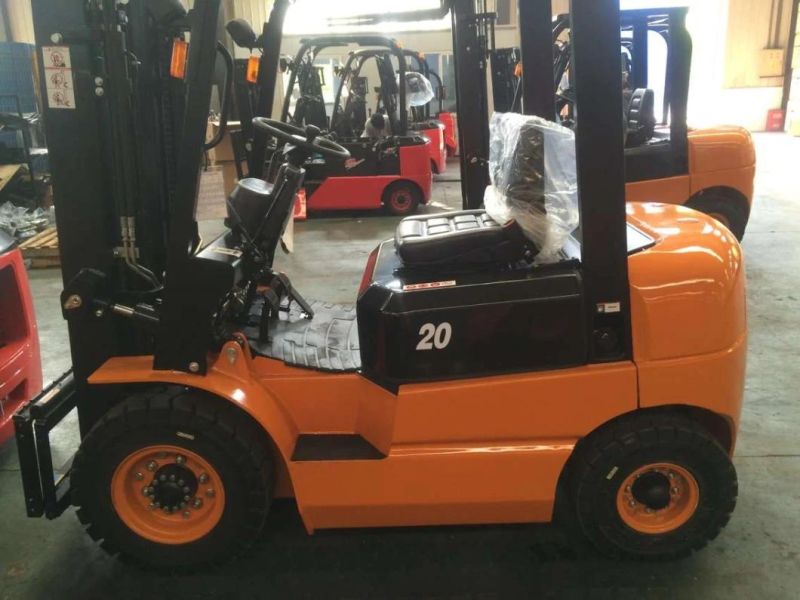

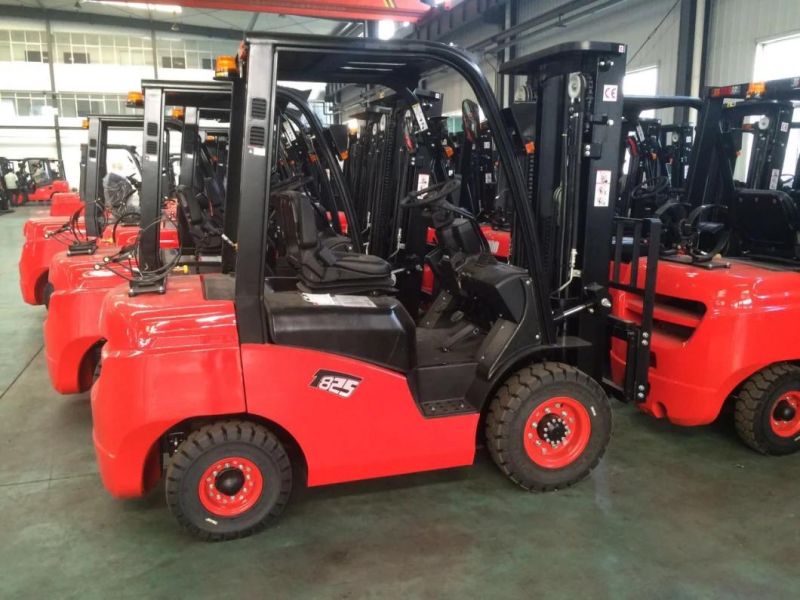

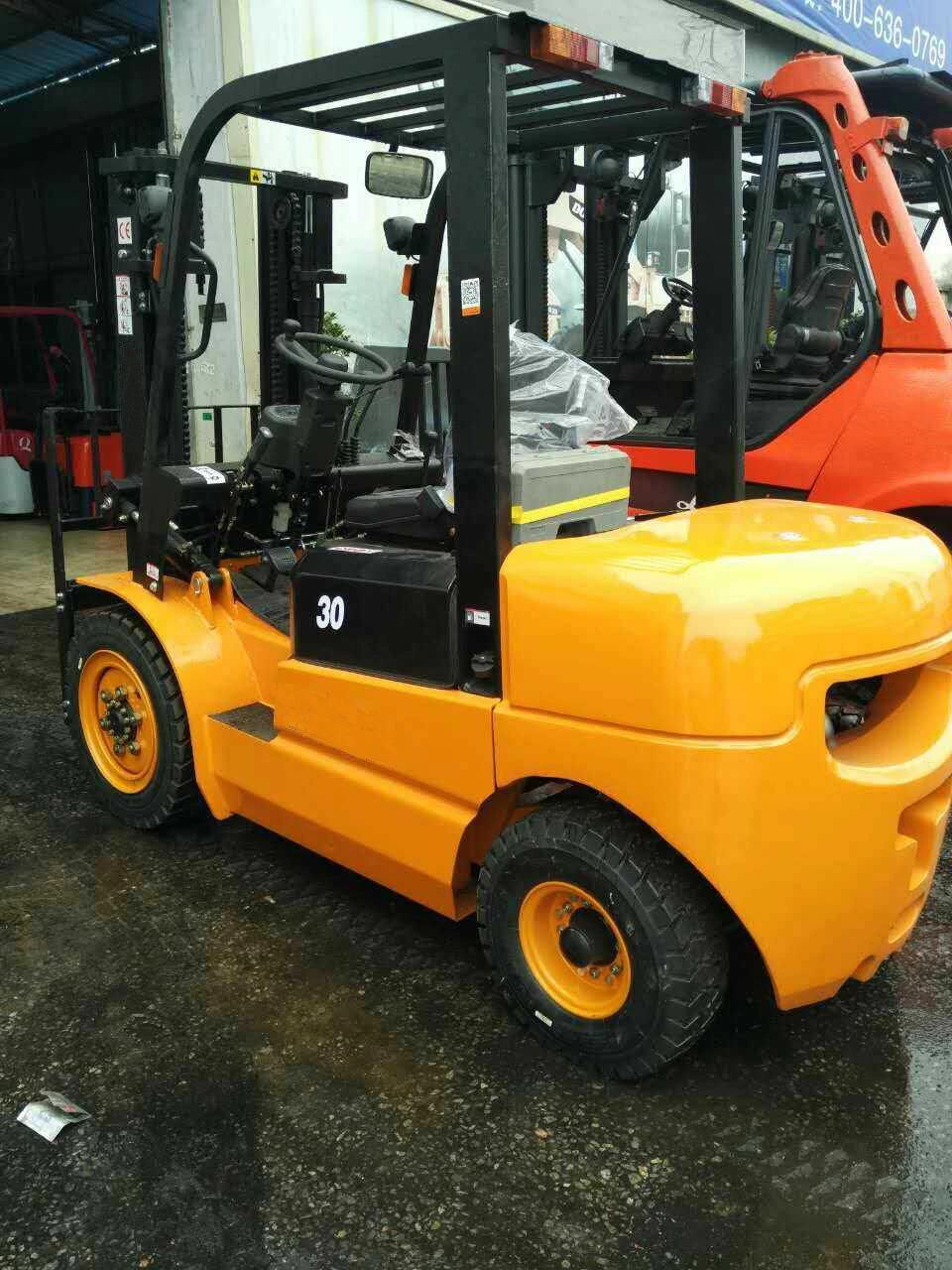

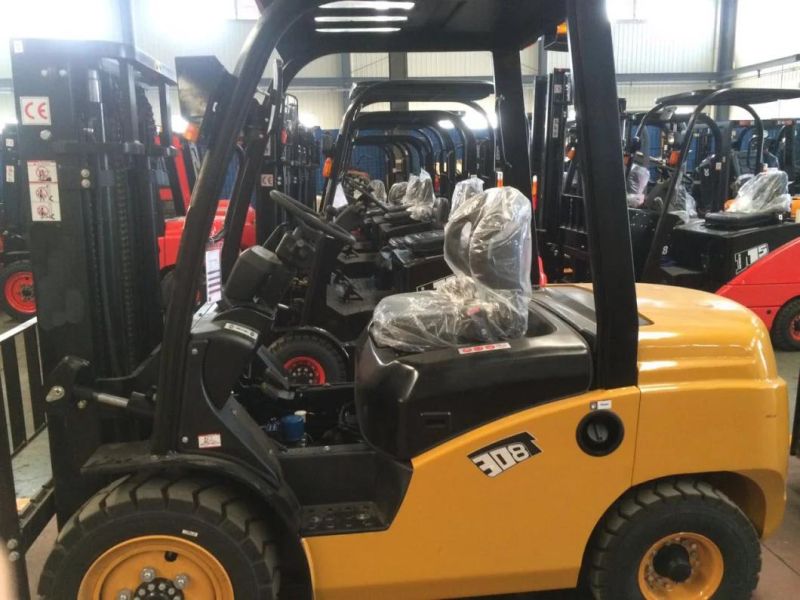

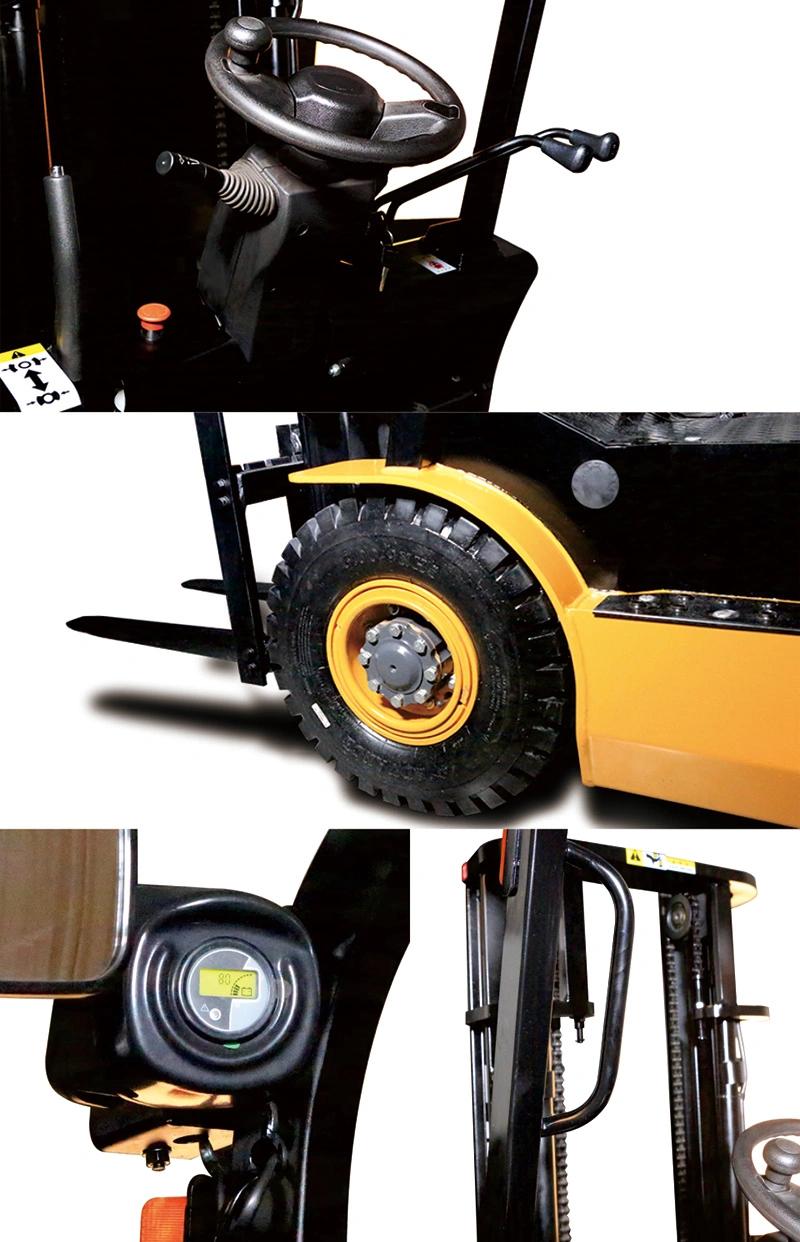

 Detailed Photoes Forklift:

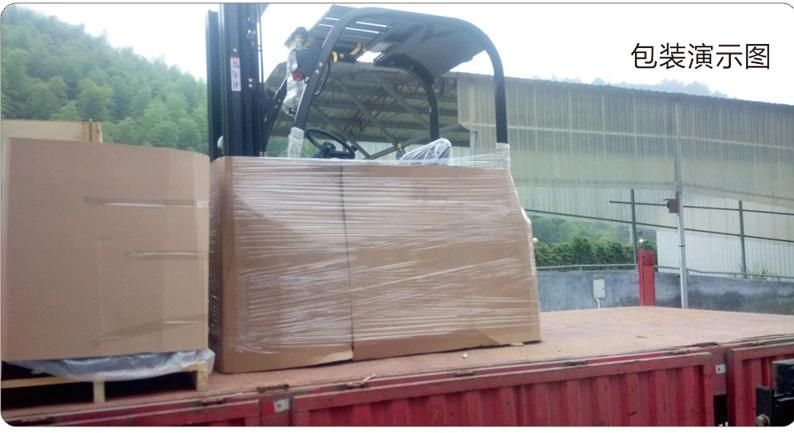

Packing Of Forklift:

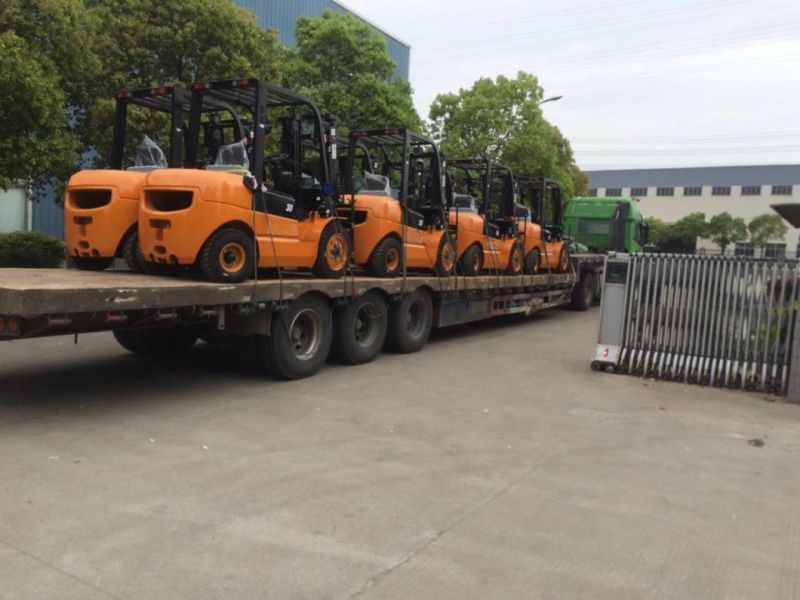

Shipment & Payment:
1.T/T(100% T/T,30% deposit for production, 70% balance of settlement for shipment)
2.L/C(100% L/C)
3.Shipment time:15-20 days after received the 70% balance.

FAQ:
1.Does the forklift engine can be changed?
Yes,Chinese or Japan brand engine are available here.

2.Does the color can be customized?
Yes,all color are available.

3.What kinds of forklift you can supply?
Diesel,gasoline,LPG dual fuel,electric power are available.
