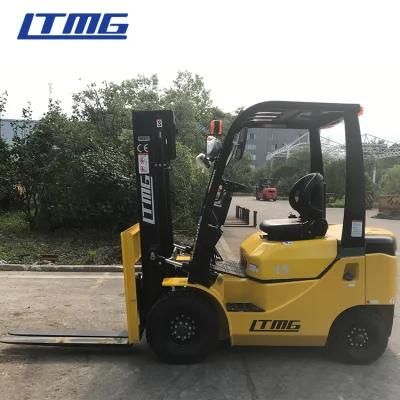

Ltmg New 3 Ton Manual Hydraulic Diesel Forklift Truck with Side Shifter

Xiamen LTMG Machinery Co., Ltd.
  • Cab Location：Adjustable
  • Type：Diesel Forklift
  • Power：Diesel Engine
  • Load Capacity：1T - 5T
  • Fuel：Diesel
  • Load center：500mm

Base Info

  • Model NO.：FD30
  • Lift height：3000~5000mm
  • Condition：New
  • Fork Size：1220*150*60mm
  • Turning Radius：2520mm
  • Truck Weight：4150kg
  • Engine：Isuzu
  • Rated Power：39kw,2650rpm
  • Min.Ground Clearence：135mm
  • Wheelbase：1700mm
  • Grade Ability：20%
  • Tire：Pneumatic
  • Product Name：Ltmg New 3 Ton 5 Ton Diesel Forklift Truck with Si
  • Product Type：Diesel Forklift
  • Transport Package：Container
  • Specification：2770mm*1225mm*2115mm
  • Trademark：LTMG
  • Origin：China
  • HS Code：84272090
  • Production Capacity：5000sets,Year

Description

Model Power shift T/M FD30Manual shift T/M              FD30Load capacity  kg3000Load center  mm500Power unit   Diesel  Operator type   Driver/seat Tire type   PneumaticWheel Front/rear 2/2Max. lifting height   mm3000Free lift  mm150Fork size                     L*W*Tmm1070*125*45Tilt range  Mast forward/backwarddeg6/12Overall length(without fork)   mm2705Total width  mm1225Mast height (fork lowering)   mm2075Overall height fork raised  With backrest  mm4250Height to head guard         mm2140Turning radius(outside)              mm2445Front face of fork to front axle mm480Min. right angle stacking aislewithout load length&clearance mm2925Speed Max Travelling full/no load km/h18/19.5Lifting full/no load mm/s450/500Lowering full/no load  mm/s450/450Max.drawbar pull            Power shift T/M full/no load    kg1500/1000Manual shift T/M full/no load  kg1550/1000Gradeability at 1.6km/hPower shift T/M full/no load       %18/20Manual shift T/M full/no load  %18/20Truck weight kg4380Weight  distribution              Full load front/rear            kg6490/890No load front/rear           kg1670/2700Tires Numberfront/rear2/2Modelfront axle 28x9-15-12PRrear axle6.50-10-10PRWheelbase  mm1700Tread Front/rearmm1000/970Ground clearance   At lowest point(mast) mm120Framemm135Brake Service  brake Hydraulic-foot pedal                                        Parking brake Mechanical-hand lever                                 Battery   Voltage/capacityV/AH12/80Engine                                         Model ISUZU C240Rated powerkw/rpm34.3/2500Rated torqueN.m/rpm138/1800Number of cylinders 4PlacementL2.369Fuel tank capacityL70Transmission                             Speed forward/backwardPower shift T/M
Manual shift T/M  1-1 power shift T/M
2-2 manual shift T/M

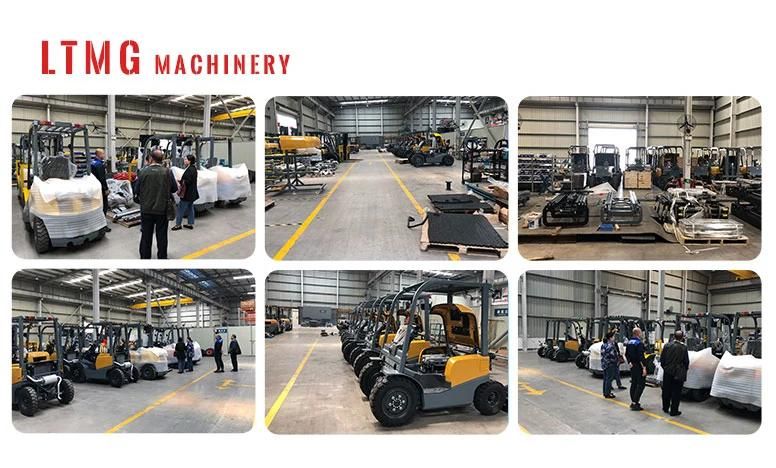

Our Factory

Ltmg New 3 Ton Manual Hydraulic Diesel Forklift Truck with Side Shifter
Ltmg New 3 Ton Manual Hydraulic Diesel Forklift Truck with Side Shifter

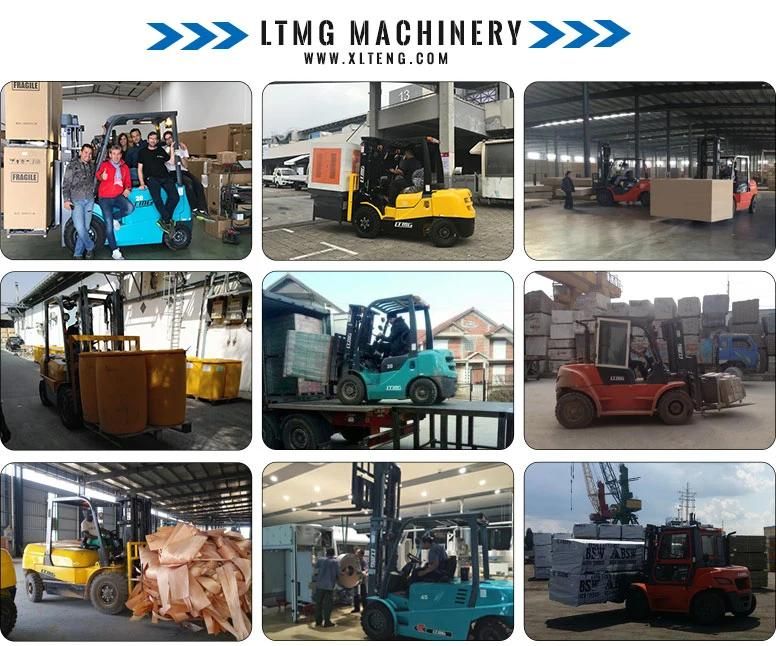

Forklift application &comments

Our LTMG Forklift is widely used in the port, wharf, industrial and mining enterprises, station, warehouse, and others.
The quality of our LTMG forklift has been recognized by our customers.
Ltmg New 3 Ton Manual Hydraulic Diesel Forklift Truck with Side Shifter
Ltmg New 3 Ton Manual Hydraulic Diesel Forklift Truck with Side Shifter


Our customer
Ltmg New 3 Ton Manual Hydraulic Diesel Forklift Truck with Side Shifter

After sales service

LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.

All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.

Detail clauses and policies please check our website and product certificate.


Ltmg New 3 Ton Manual Hydraulic Diesel Forklift Truck with Side Shifter


Welcome to contact us for further questions!
We have very stronger technique team to serve after sales service.
Welcome to contact us about any quality problem.
