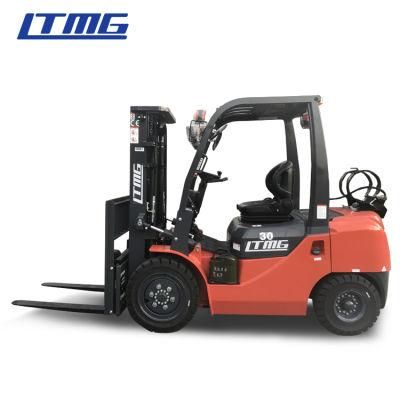

• Model NO.：FD25
• Lift height：3000~5000mm
• Condition：New
• Max. Lifting Height：3000mm
• Fork Size：1070mm*122mm*40mm
• Weight：3670kg
• Engine：Isuzu or Mitsubishi or Xinchai
• Rated Power：34.3kw,2500rpm
• Wheelbase：1600mm
• Overall Length(Without Fork) ：2530mm
• Ground Clearance：115mm

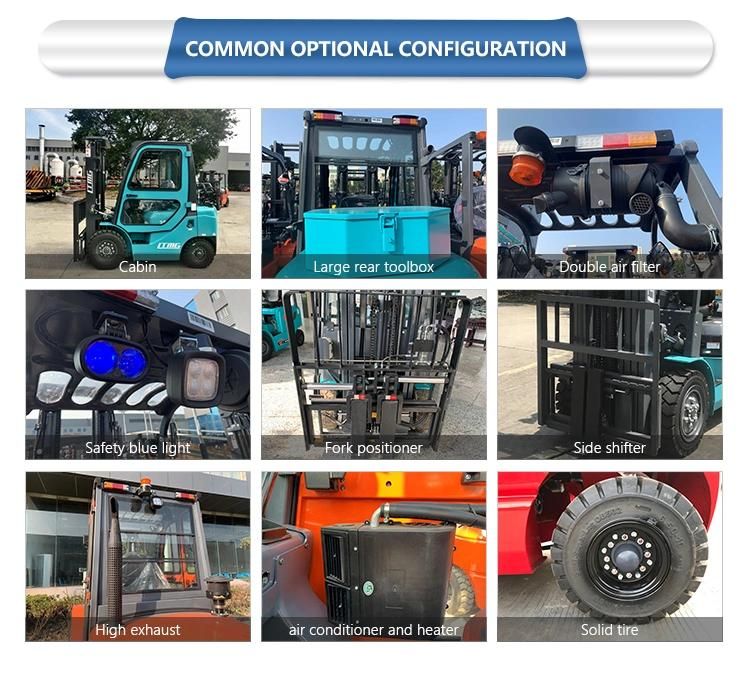

• Optional：AC Cab, Longer Forks, Side Shifter, etc
• Tire：Pneumatic or Solid
• Transport Package：Container
• Specification：2530mm*1150mm*2120mm
• Trademark：LTMG
• Origin：China
• HS Code：84272090
• Production Capacity：300sets,Month

                                         Features UnitLTMGFD25Performance Load Capacitykg2500 Load centermm500 Max. lifting heighmm3000 Free liftmm150  Speed      Max Travelling  full load   km/h18no load   km/h19.5 Lifting  full load   mm/s450no load   mm/s500 Lowering full load   mm/s450no load   mm/s450Turning raduis(outside)mm2445Min. right angle stacking aisle    mm2952DimensionOverall length(without fork)    mm2530Total widthmm1150 Mast height (fork lowering)   mm1995Overall height fork raised (With backrest)       mm4030Height to head guard mm2120Fork size              L×W×T mm1070×122×40Tilt range           Mast forward/backward  deg6/12Ground clearence At lowest point(mast)    mm120Framemm115Wheelbasemm1700TreadFrontmm1000Rearmm970 Front face of fork to front axle mm480 Truck weight(no load)kg43004380TiresFront 28×9-15-12PRRear  6.50-10-10PREngine Model C2404JG2Rated powerkw/rpm38.3/250044.8/2450Rated torqueNm/rpm154/1600)186/1800Number of cylinders 44Displacement L2.3693.059


LTMG always treat after-sale as important as sale.
Nowadays more than 50 agents around the world can supply LTMg professional after-sale service.
All the product of LTMg supplied with 1 year or 2000 working hours(which occurs first)period quality warranty.
Detail clauses and policies please check our website and product certificate.
