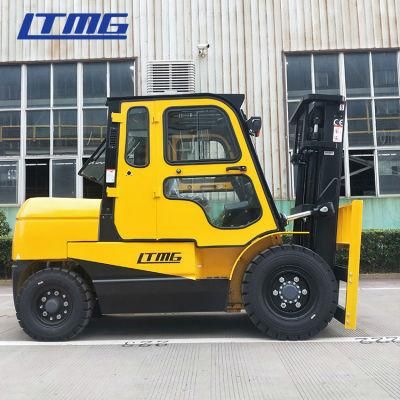

• Model NO.：FD50
• Load center：600mm
• Lift height：3000~5000mm
• Condition：New
• Fork Size：1220mm*150mm*60mm
• Weight：7830kg
• Engine：Mitsubishi
• Wheelbase：2000mm
• Color：Decided by Buyer
• Hydraulic System Pressure ：200
• Ground Clearence：240mm
• Fuel Tank：80L
• Transport Package：Container
• Specification：3183mm*1485mm*2390mm
• Trademark：LTMG
• Origin：China
• HS Code：84272090
• Production Capacity：2000 Set,Month

Model  FD50Load capacity kg5000Load center mm600Power unit  DieselOperator type  Driver/seatTire type  PnenumaticWheelFront/rear 2/2Max. lifting height mm3000Free lift mm140Fork sizeL*W*Tmm1220*150*60Tilt rangeMast forward/backwarddeg6/12Overall length(without fork)SpeedWeightTiresNumberModelGround clearenceBrakeEngineModel  MITSUBISHI S6SRated power kw/rpm52/2300Rated torque N-m/rpm248/1700Number of cylinders  6Displacement L4.996Fuel tank capacity L80TransmissionShift stage(front/rear-type) 2-1 power shift T/MOperating pressureHydraulic system pressurekg/cm²200
