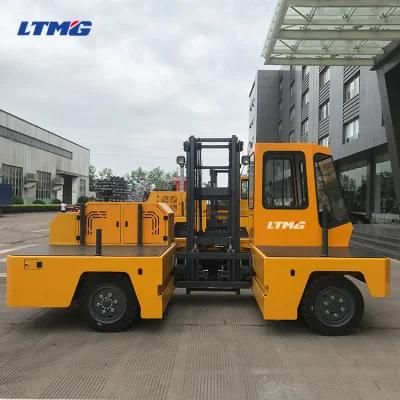

Ltmg 10 Ton Diesel Forklift with Fork Positioner and 1520mm Fork Length
Xiamen LTMG Machinery Co., Ltd.- Cab Location：Not Adjustable
- Type：Heavy Forklift
- Power：Diesel Engine
- Load Capacity：10t
- Fuel：Diesel
- Load center：600 mm
Base Info
- Model NO.：FD100
- Lift height：3000-6000 mm
- Condition：New
- Engine：Isuzu
- Transmission：Hydraulic
- Fork Size：1220*175*75 mm
- Mast Height (Fork Lowering)：2850 mm
- Truck Weight：12450 Kg
- Tire Type：Pneumatic
- Height to Head Guard：2560 mm
- Tilt Range：6,12 Degree
- Turning Radius：3900 mm
- Wheel：4,2
- Transport Package：Container
- Specification：4255*2245*2850 mm
- Trademark：LTMG
- Origin：China
- HS Code：84272090
- Production Capacity：1000sets,Year
Description
Features 1 Manufacturer LTMG 2 Model FD100 3 Load capacity kg 10000 4 Load center mm 600 5 Power unit Diesel 6 Operator type Driver/seat 7 Tire type Pneumatic 8 Wheel Front/rear 4/2 Dimension 9 Max. lifting height mm 3000 10 Free lift mm 205 11 Fork size L*W*T mm 1220*175*75 12 Tilt range Mast forward/backward deg 6/12 13 Overall length(without fork) mm 4255 14 Total width mm 2245 15 Mast height (fork lowering) mm 2850 16 Overall height fork raised With backrest mm 4330 17 Height to head guard mm 2560 18 Turning radius(outside) mm 3900 19 Front face of fork to front axle mm 710 20 Min. right angle stacking aisle pallet size :
1100×1100 add clearance mm 6250 Performance 21 Speed Max Travelling full/no load km/h 24/30 22 Lifting full/no load mm/s 390/410 23 Lowering full/no load mm/s 470/340 24 Max.drawbar pull full/no load kg 5850/3200 25 Gradeability at 1.6km/h full load % 22 Max. Gradeability full/no load % 24/20 Weight 26 Truck weight kg 12450 27 Weight distribution Full load front/rear kg 20160/2290 28 No load front/rear kg 5480/6970 Frame 29 Tires Number front/rear 4/2 30 Model front axle 9.00x20-14PR 31 rear axle 9.00x20-14PR 32 Wheelbase mm 2800 33 Tread Front/rear mm 1600/1700 34 Ground clearance At lowest point(mast) mm 245 Frame mm 320 35 Brake Service brake power brake Parking brake Mechanical-hand lever Engine 36 Battery Voltage/capacity V/AH 2x12V-80AH 37 Engine Model ISUZU 6BG1 Rated power kw/rpm 82.3/2000 Rated torque N-m/rpm 418/1500 Number of cylinders 6 Displacement L 6.494 Fuel tank capacity L 140 38 Transmission shift stage(front/rear-type) 2-2 automatic 39 Operating pressure Hydraulic system pressure kg/cm² 200
Product Features
1.Equipped with Chinese powerful and reliable engines with excellent environmental performance; Original imported Isuzu, Mitsubishi and Cummins engines are optional.
2.Work lights and warning lights make it safer and more efficient even in poor lighting conditions
3.New designed overhead guard protective device prevent the sudden accidents: The lifting system adopts buffering technology to reduce shock and vibration of the mast.
4.High strength-solder bath mast. Wide filed of the front vision ensures the safety of the operation and improves work efficiency.
After sales service
LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.
FAQ
1.What the Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate.
Some of our products meets the EPA requirements.
2.Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.
3.How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first.
Details to see the LTMG warranty policy for each model.
4.Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.
5.What the payment terms do you accept?
On T/T term 30% down payment is required in advance,and 70% balance shall be settled before shipment.
6.What logistics ways we can work for shipment?
We can ship construction machinery by various transportation tools.
1.For 90% of our shipment,we will go by sea,to all main continents such as South America,Middle East,Africa,Oceania and Europe etc,either by container or Bulk shipment.
2.For neighborhood countries of China,such as Russia,Mongolia, Kazakhstan,Uzbekistan etc., we can ship trucks by railway.
3.For light spare parts in urgent demand,we can ship it by international courier service,such as DHL,TNT,UPS,or Fedex.
7.Delivery time:
Standard configuration products are always in stock. The production period of Customizing products is from 7 days to 60 days.
Factory
