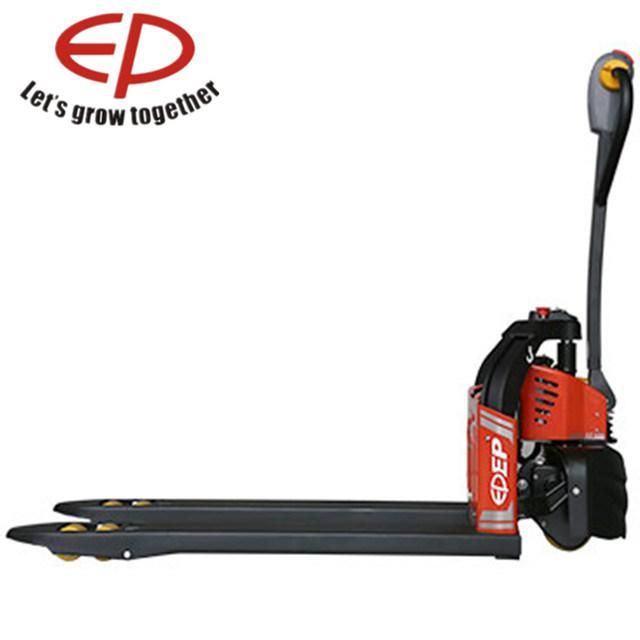

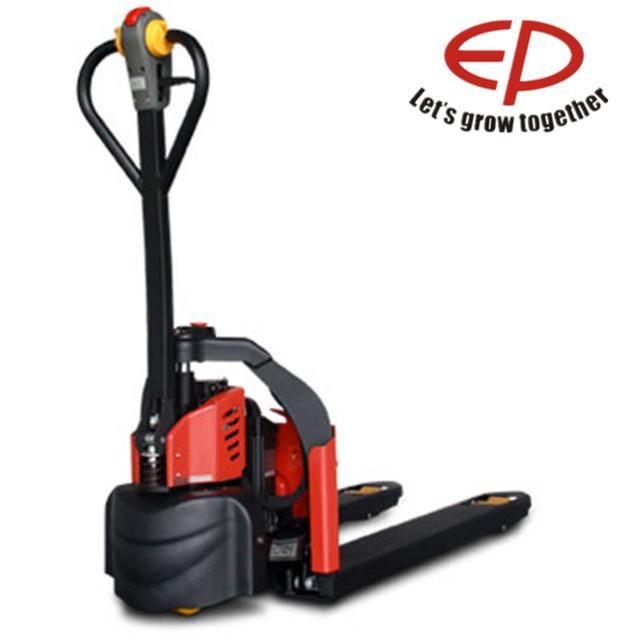

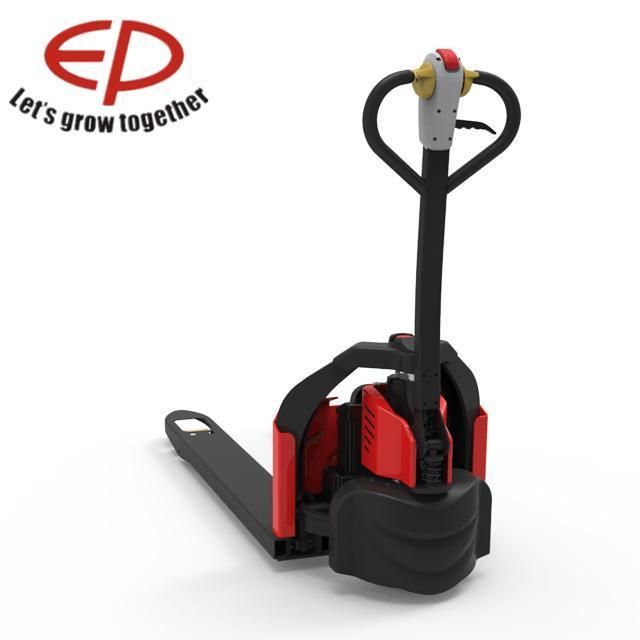

• Model NO.：EPT12-EZ
• Lift height：115mm
• Condition：New
• Rated Loading Capacity：1200kg
• Min. Lifting Height：80mm
• Fork Length：1150mm
• Fork Width：150mm
• Service Weight：116kg
• Tyre Type：PU,PU
• Travel Speed：3.8,4 Km,H
• Lifting Speed：0.02,0.025 M,S
• Battery Voltage：24V,20ah
• Certification：Ce
• Transport Package：Standard Export Packing
• Specification：1540mm*560mm*800mm
• Trademark：EP
• Origin：Zhejiang
• HS Code：8427109000
• Production Capacity：50000,Year

Characteristics1.2Model designation EPT12-EZ1.3Drive unit Battery1.4Operator type Walkie1.5Load capacityQ (kg)12001.6Load centerc (mm)6001.8Load distance (Raised/ Lowered)x (mm)9501.9Wheelbasey (mm)1190 Weights2.1Service weight (Incl. battery)kg1202.2Axle loading, laden operator/load sidekg410/9102.3Axle loading, unladen operator/load sidekg100/20 Wheels, Chassis3.1Tyre type PU/ PU3.2Tyre size, operator side 130x553.3Tyre size, load side 80x603.5Wheels, number operator/load side (x=drive wheels) 1x2/ 43.7Tread, load sideb₁₁ (mm)410 Dimensions4.4Lift heighth₃ (mm)1154.9Height of tiller arm in operating position, min/ maxh₁₄ (mm)800/11704.15Fork height, loweredh₁₃ (mm)854.19Overall lengthl₁ (mm)15404.20Length to face of forksl₂ (mm)3004.21Overall widthb₁/ b₂ (mm)560 6854.22Fork dimensionss/ e/ l (mm)53/ 150/ 11504.25Fork spread, min/ maxb₅ (mm)560/ 6854.32Ground clearance, center of wheelbasem₂ (mm)274.33Aisle width, 1000×1200 pallet crosswaysAst (mm)16404.34Aisle width, 800×1200 pallet lengthwaysAst (mm)18404.35Outer turning radiusWa (mm)1390 Performance5.1Travel speed, laden/ unladenkm/ h3.8/ 45.2Lifting speed, laden/ unladenm/ s0.02/ 0.0255.3Lowering speed, laden/ unladenm/ s0.06/ 0.035.8Maximum gradeability, laden/ unladen S₂ 5 min.%2/ 85.10Service brake Electromagnetic Drive6.1Drive motor rating S₂ 60 min.kW0.166.2Lift motor rating at S₃ 15%kW Lithium6.4Battery voltage/ rated capacity (5h)V/ Ah24/ 206.5Battery weightkg3.7 Others8.1Type of drive control DC8.4Sound level at operator's eardB (A)74
