Fork Lift 3 Ton Diesel Power Forklift
Jinan Shine International Trade Co., Ltd.- Cab Location：Adjustable
- Type：Heavy Forklift
- Power：Diesel Engine
- Load Capacity：1T - 5T
- Fuel：Diesel
- Load center：500mm
Base Info
- Model NO.：FD30
- Lift height：>5000mm
- Condition：New
- Engine：Japan Isuzu C240 or China Xc490
- Hydraulic System：Japan Shimadzu
- Gear：USA Eaton Steering Gear
- Transmission：Automatic Transmission
- Seat：Luxury Suspension Seat
- Radiator：Copper Radiator
- Light：All LED Light
- Mirror：3 Way Wider Back Mirror
- Overhead Guard：Water Proof Overhead Guard
- Spare Parts：Free Filters and Seals Maintance Parts
- Attachment：Customized
- Mast：3m-6m
- Transport Package：Container Package
- Specification：3 Ton
- Trademark：SNSC
- Origin：China
- HS Code：84272090
- Production Capacity：8000sets,Year
Description
SpecificationsUnit FD30 1 Characteristics Power - diesel 2 Rated Capacity kg 3000 3 Center of load mm 500 4 Lifting height mm 3000 5 Free lifting height mm 145 6 Forks L×W×H mm 1070×125×45 7 Tilt Forward/Backward . 6/12 8 Min.turning radius mm 2600 9 Min.ground clearance(Mast) mm 120 10 Overhead guard height mm 2170 11 Front overhang mm 545 12 Performance Max.traveling speed(loaded) km/h 20 13 Max.lifting speed(loaded/empty) mm/s 470/520 14 Drawback pull/Grade ability kN/% 18/20 15 Dimensions Overall length (without fork) mm 2825 16 Overall width mm 1230 17 Mast lowered height mm 2065 18 Mast extended height mm 4260 19 Chassis Tire Front - 28×9-15-12PR 20 Rear - 6.50-10-10PR 21 Wheelbase mm 1800 22 Tread width Front/Rear mm 1000/970 23 Curb weight None-load kg 4250 24 Powertrain Battery Voltage/Capacity V/Ah 12/90 25 Engine Model - XC490BPG 26 Rated power kw/r.p.m 37/2650 27 Rated torque Nm/r.p.m 148/2000 28 Cylinder amount - 4 29 Bore×Stroke mm 90×105 30 Displacement - 2.54 31 Fuel tank L 70 32 Transmission - 1/1 automatic transmission 33 Working pressure MPa 17.5
Forklift Catalogue:
Diesel Forklift Truck Range from 1 to 10tons; (FD30,FD35,FD40,FD45,FD50,FD60,FD70)
Electric Forklift Truck Range from 1.5 to 3.5tons; (FB15, FB20, FB25, FB30, FB35)
LPG & Gasoline Forklifts Range from 1.5 to 3.5tons; (FL15, FL20, FL25, FL30, FL35)
Warehouse Logistic Forklift 1 to 3tons Reach Truck / Pallet Truck / Stacker ; (YB16,YB20,DB16,DB20)

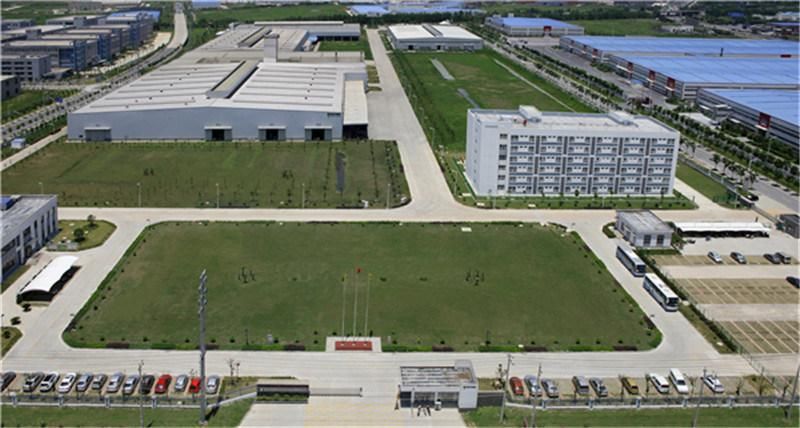

Our Company:
We, SNSC, are top quality forklift manufacture in China, with 130,000 square meters production area, 30,000 units production capacity per year,5000 sets export volume.
We regarde "Quality product , reasonable price , efficient production time and good after-sales service" as our tenet.
We hope to cooperate with more customers for mutual development and benifits. Welcome to contact us with your demands.
