• Model NO.：FD100
• Lift height：3000~5000mm
• Condition：New
• Fork Size：1220mm*175mm*75mm
• Weight：12450kg
• Engine：Isuzu,Chaochai
• Wheel Base：2800mm
• Warranty：1 Year or 2000 Working Hours
• Color：Decided by Buyer
• Max.Lifting Height：3000mm
• Rated Power：112kw,2000rpm
• Ground Clearance：245mm
• Optional：Air Conditioner Side Shifter
• Transport Package：Nude Packing, Fixed in Container
• Specification：4255mm*2245mm*2850mm
• Trademark：LTMG
• Origin：China
• HS Code：84272090
• Production Capacity：800sets,Year

Manufacturer  LTMGModel Power shift T/MFD100Load capacity kg10000Load center mm600Power unit  DieselOperator type  Driver/seatTire typeFront/rear PneumaticWheelFront/rear 4/2Max. lifting height mm3000Free lift mm205Fork sizeL*W*Tmm1220*175*75Tilt rangeMast forward/backwarddeg6/12Overall length mm4255Total width mm2245Mast height (fork lowering) mm2850Overall height fork raisedWith backrestmm4430Height to head guard mm2560Turning radius(outside) mm3900Front face of fork to front axle mm710Min. right angle stacking aislewithout load length& clearancemm6250SpeedMax Travelling   full/no loadkm/h24/30Lifting full/no loadmm/s390/410Lowering full/no loadmm/s470/340Max.drawbar pullfull/no loadkg5850/3200Gradeability at 1.6km/hfull load%22Max. Gradeabilityfull/no load%24/20Truck weight kg12450Weight  distributionFull load front/rearkg20160/2290No load front/rearkg5480/6970TiresNumberfront/rear4/2Modelfront axle9.00x20-14PRrear axle9.00x20-14PRWheelbase mm2800TreadFront/rearmm1600/1700At lowest point(mast)mm245Ground clearanceFramemm320BrakeService brake Brake boosterParking brake Mechanical-handBatteryVoltage/capacityV/AH2x12V-80AHEngineModel ISUZU 6BG1Chaochai 6102BGRated powerPS(kw/rpm)112/2000110/2500Rated torqueg-m max.(N.m)42.5/150036/1650Number of cylinders 66PlacementL6.4945.785Fuel tank capacityL140TransmissionSpeed forward/backwardPower shift T/M Manual shift T/M2-2 power shift T/M
Product Features:


1.Equipped with powerful and reliable original imported Isuzu  with excellent environmental performance, Commins engine are optional.



2.Ergonomic adjustable seat:designed according to the ergonomic principles, make the operation much comfortable and also relieves the fatigue caused by long continuous operation.



3.Bigger and non-slip step make operating convenient and safe.



4.The standard LED lamps and warning lights make it safer ,more energy efficient and create better working condition.



5.Install heavy-duty driving axle to ensure safety work at bad working conditions.



6.The full free 3-stage mast adopt German import channel With advanced welding technology , Increase the stability of ascension,durability and the width of front mast view,  reduce the height of the instrument stand, expand the visibility of pallet fork tip and goods.

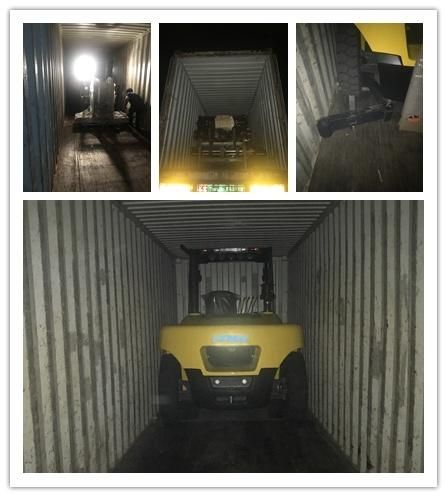

Shipping&packaging




After sales service

LTMG always treat after-sale service as important as the product quality.

LTMG grants our clients a twelve-month-period or 2000 working hours warranty for any machine purchased from us.

LTMG can also help clients coordinate with trained service personnel to provide you detailed and extensive knowledge about your specific machine. With our technical advises, your machine service life can be significantly prolonged and sustained with high capacity.

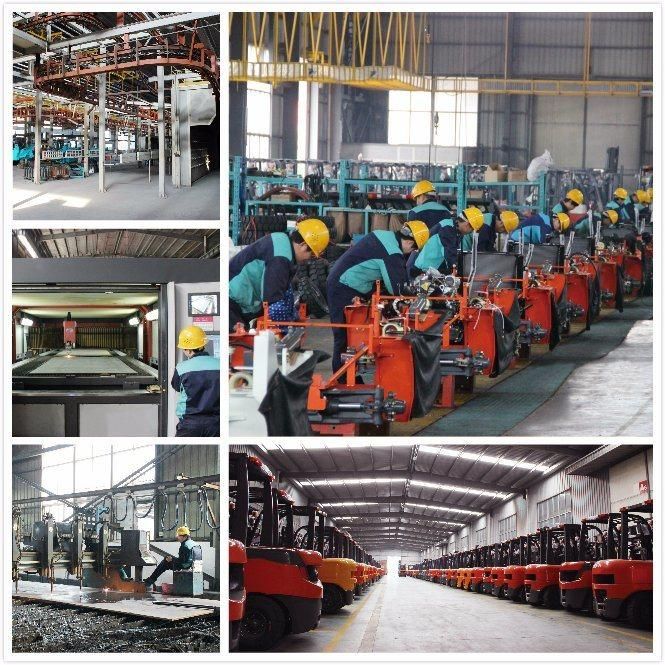

Our Factory&Customer
