• Model NO.：MJ-30DH-612000
• Advantage：High Quality Forklift Parts
• Manufacturer：Genuine Forklift Parts Maker
• Transport Package：Corrugated Carton with Plywood Case
• Specification：55*38*8 cm
• Trademark：Leading forklift parts
• Origin：China
• HS Code：8481901000
• Production Capacity：10000 PCS , Month

Basic Info.

Model NO. MJ-30DH-612000 Advantage High Quality Forklift Parts Manufacturer Genuine Forklift Parts Maker Transport Package Corrugated Carton with Plywood Case Specification 55*38*8 cm Trademark Leading forklift parts Origin China HS Code 8481901000 Production Capacity 10000 PCS / Month

Product Description

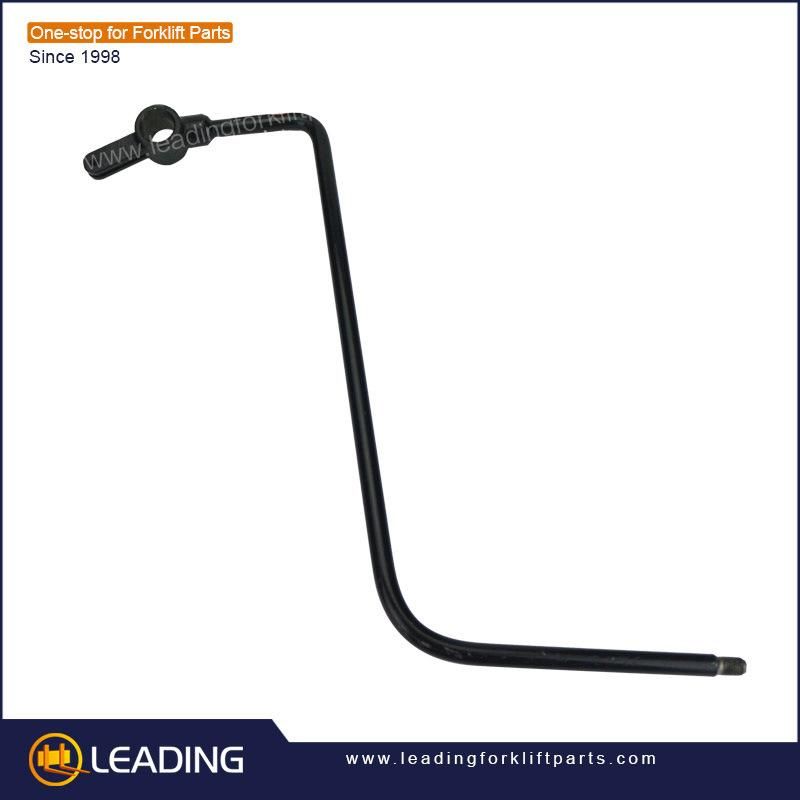

Product Title: Forklift valve parts multi-way valve level forklift control level
Product Model: Forklift multi-way valve level MJ-30DH-612000




Item	Description
Product Name	Forklift multi-way valve level  (Heli 3T / 2section)
P/N	MJ-30DH-612000
Applied Model	For Heli Hangcha forklift truck 20-35H  (Genuine forklift parts)
Net Weight (kg)	0.70
Gross Weight (kg)	0.8
Qty per Carton	1
Carton Size (cm)	55*38*8

Feature of forklift directional valve linkage level:
1. High-quality carbon steel, strong strength to anti-deform
2. Blackening treatment of surface to prevent rust
3. The stem position is accurate and gap is small which does not shake

The function of linkage control level and multi-way directional valve:
Forklift mast and various attachment actions are controlled by multi-way directional valves, and the operation control of the multi-way valve is achieved by the control linkage system, the control system includes joystick, lever and connection pin, etc. , the lever at both ends through the connection pin and joystick, multi-way valve connection, the joystick can be achieved multi-valve action, In turn, the mast  and the various attachment actions of the furniture are realized.
The joystick has a position requirement in the design, but in the actual production process due to the manufacturing error of the components and the cumulative error of assembly, each lever does not reach the required position after assembly, and it is necessary to adjust the length of the lever to adjust the position of the lever.
At present, the lever is mainly composed of a round rod and two joints, one end of the round rod is welded with one joint, one end and the other joint is threaded, it is through this thread connection to adjust the length of the lever.
