Gabelstapler Hydraulic Forklift 2000kg 2500kg 2 Ton 2.5 Ton 3 Tones Diesel Forklift with Block Clamp

XIAMEN LTMG CO., LTD.
  • Cab Location：Not Adjustable
  • Type：Powered Pallet Truck
  • Power：Diesel Engine
  • Load Capacity：2.5 Ton
  • Fuel：Diesel
  • Load center：500mm

Base Info

  • Model NO.：FD25
  • Lift height：3000~5000mm
  • Condition：New
  • Max. Lifting Height：3000mm
  • Fork Size：1070mm*122mm*40mm
  • Weight：3670kg
  • Engine：Chinese,Janpanese Engine
  • Rated Power：34.3kw,2500rpm
  • Wheelbase：1600mm
  • Overall Length(Without Fork) ：2530mm
  • Ground Clearance：115mm
  • Truck Weight：3670kg
  • Tire：Pneumatic Tires or Solid Tires
  • Attachments：Brick Clamp,Block Clamp
  • Optional：Side Shifter, Fork Positioner, Cabin
  • Transport Package：Container
  • Specification：2530mm*1150mm*2120mm
  • Trademark：LTMG
  • Origin：China
  • HS Code：84272090
  • Production Capacity：800sets,Month

Description

Model                                   Power shift T/M         FD25TManual shift T/M      FD25CLoad capacity                        kg2500Load center  mm500Power unit   DieselOperator type  Driver/seat Tire type      Pneumatic Wheel  Front/rear 2/2Max. lifting height                   mm3000Free lift                            mm160Fork size             L*W*Tmm1070*122*40Tilt range Mast forward/backward             deg6/12Overall length(without fork)     mm2530Total width   mm1150Mast height (fork lowering)    mm1995Overall height fork raised      With backrest                             mm4030Height to head guard              mm2120Turning radius(outside)    mm2240Front face of fork to front axle mm450Min. right angle stacking aisle without load length&clearance  mm2690SpeedMax Travelling      full/no load km/h17/19Lifting           full/no load mm/s550/580Lowering      full/no load    mm/s450/550Max.drawbar pull                  Power shift T/M    full/no load                                      kg1670/830Manual shift T/M  full/no load    kg1700/830Gradeability at 1.6km/h         Power shift T/M    full/no load%23/18Manual shift T/M  full/no load%18/18Truck weight  kg3670Weight  distribution            Full load   front/rearkg5410/760No load    front/rearkg1430/2240Tires                                      Numberfront/rear2/2Modelfront axle 7.00-12-12PRrear axle6.00-9-10PRWheelbase                              mm1600Tread                                              Front/rearmm970/970Ground clearance                 At lowest point(mast)                 mm110Framemm115Brake                                           Service  brake Hydraulic-foot pedal  Parking brake Mechanical-hand lever Battery                                         Voltage/capacityV/AH12/80Engine                                         Model ISUZU C240Rated powerkw/rpm34.3/2500Rated torqueN.m138/1800Number of cylinders 4PlacementL2.369Fuel tank capacityL70Transmission                             Speed forward/backward   Power shift T/M  Manual shift T/M              1-1 power shift T/M
2-2 manual shiftT/M    Operating pressure Hydraulic system pressure  kg/cm²180

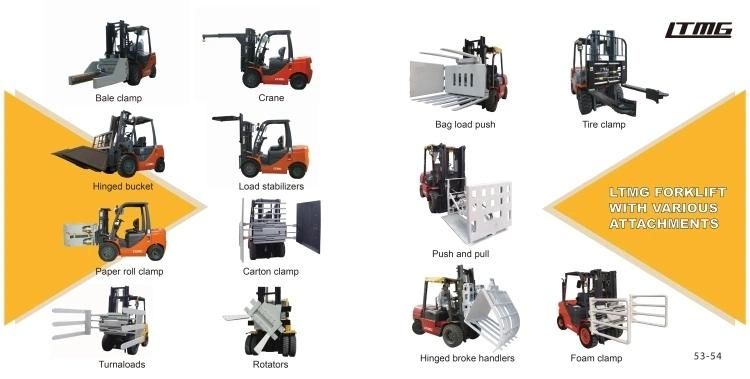

Attachments
Gabelstapler Hydraulic Forklift 2000kg 2500kg 2 Ton 2.5 Ton 3 Tones Diesel Forklift with Block Clamp

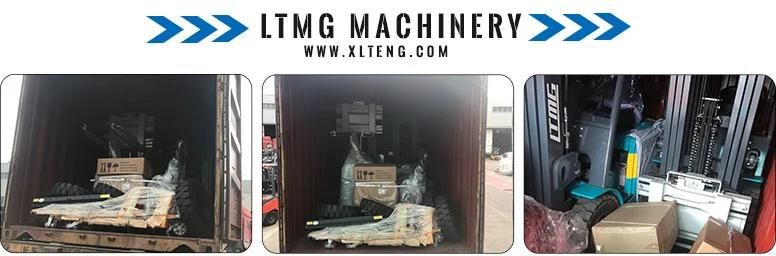

Shipping & Delivering

Gabelstapler Hydraulic Forklift 2000kg 2500kg 2 Ton 2.5 Ton 3 Tones Diesel Forklift with Block Clamp

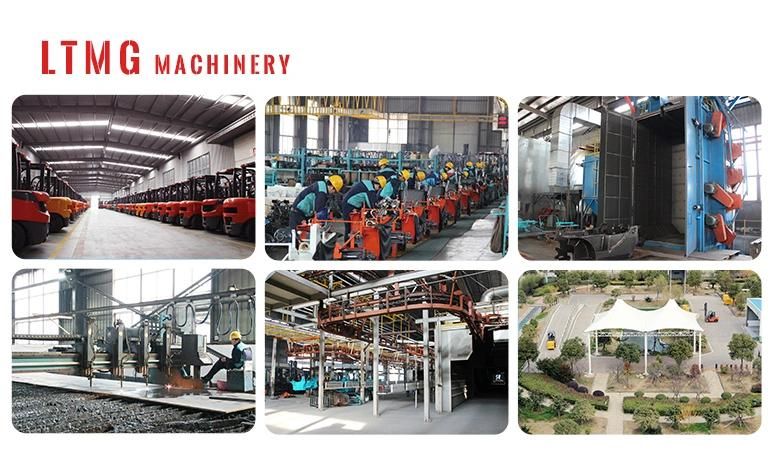

Our Factory
Gabelstapler Hydraulic Forklift 2000kg 2500kg 2 Ton 2.5 Ton 3 Tones Diesel Forklift with Block Clamp

Certificate

Gabelstapler Hydraulic Forklift 2000kg 2500kg 2 Ton 2.5 Ton 3 Tones Diesel Forklift with Block Clamp

LTMG Customers

Gabelstapler Hydraulic Forklift 2000kg 2500kg 2 Ton 2.5 Ton 3 Tones Diesel Forklift with Block Clamp

After-sale service

LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.

All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.

Detail clauses and policies please check our website and product certificate.
