• Model NO.：FG60
• Lift height：3000~5000mm
• Condition：New
• Fork Size：1220mm*150mm*60mm
• Weight：9150kg
• Engine：GM
• Wheelbase：2250mm
• Color：Decided by Buyer
• Certificate：EPA ISO Ce
• Max.Lifting Height：3000mm
• Rated Power：56kw,2200rpm
• Warranty：1 Year,2000 Working Hours
• Turning Radius：3250 mm
• Transport Package：Container
• Specification：3450mm*2010mm*2500mm
• Trademark：LTMG
• Origin：China
• HS Code：8427209000
• Production Capacity：800sets,Year

General1Model FG602Power type LPG3Rated Capacitykg60004Load centremm600Characteristic&Dimension5Lift Heightmm30006Fork SizeL×W×T   mm1220×150×607Mast title AngleF/RDeg6°/12°8Front Overhang (Wheel center to fork face)mm5909Ground clearance (Bottom of mast)mm20010Overall DimensionLength to face of fork (without fork)mm345011Overall widthmm201012Mast Lowered Heightmm255013Mast Extended Height (with backrest)mm438014Overhead Guard Heightmm247015Turning Radius (outside)mm325016Min. intersecting aislemm2960Performance17SpeedTravel(no load)km/h3018Lifting(full load)mm/s50019Max Gradeability%20Chassis 20TireFront 8.25-15-14 PR21Rear 8.25-15-14 PR22Wheelbasemm225023Service Weightkg9150Power&Transmission24BatteryVoltage/Capacity                                      V/Ah(12V/80AH) × 225EngineModel GM4.3L26Manufacture GM27Rated output/r.p.m.kwt/r.p.m56/220028Rated torque/r.p.m.N·mt/r.p.m240/75029No.of Cylinder 630Bore×Strokemm101.6×88.3931Displacementcc430032 Fuel Tank CapacityL14033TransmissionType Hydraulic34StageFWD/RVS 2/235Operating pressure for attachmentMpa19

Product Features

1.Safe:
LED work lights and warning lights make it safer and more efficient evenin poor lighting conditions.
New designed overhead guard protective device prevent the sudden accidents.
Thicker reinforcing plate ensure the safety and efficiency.

2.Easy to operate:
Linde-Technology single chain with reinforced load backrest--makes an excellent and wider field of visionfor operator.

3.Beautiful and comfortable:
New suspension adjustable seat makes the long time operating more comfortable.
Step area is 1.5 times larger with lower step height than fellow forklifts.

4.Durable:
Sunken tilt cylinder under the floor build broader flat floor and less abrasion.
Change plastic slider to alloy copper slider, reduce the abrasion and narrow the gap between masts.
Thicker steering axle bridge deck.

5.Environmental:
Middle muffler, more environmental.

6.High technology:
Maintenance free radiators adopt Germany technology.

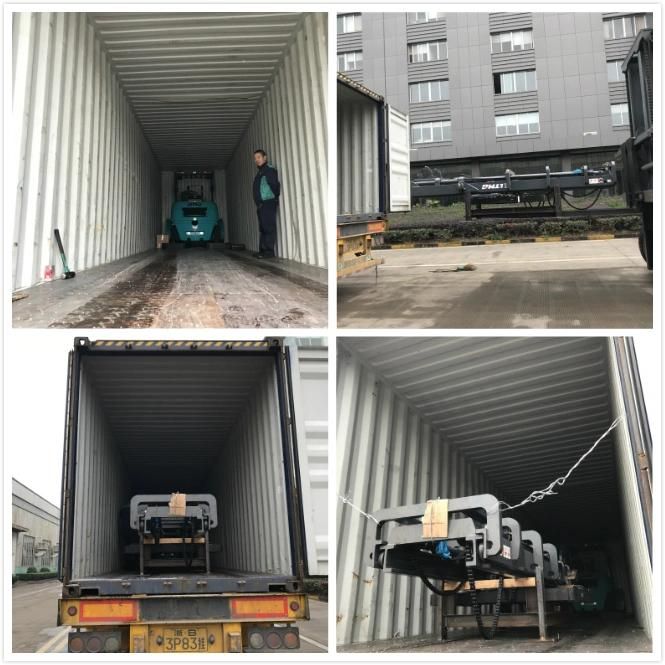

Packaging and shipping


LTMG Factory


LTMG Clients


After sales service

LTMG always treat after-sale service more important than sale.
Nowadays more than 30 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.
