• Model NO.：FB30
• Load center：500mm
• Lift height：3000~5000mm
• Condition：New
• Fork Size：1070mm*125mm*45mm
• Wheelbase：1600mm
• Weight：4660kg
• Color：Could Be Designed by Buyer
• Max. Lifting Height：3000mm
• Overall Length(Without Fork)：2510mm
• Tire Type：Pneumatic
• Total Width：1225mm
• Transport Package：Container
• Specification：2510mm*1225mm*2190mm
• Trademark：LTMG
• Origin：China
• HS Code：8427109000
• Production Capacity：800sets,Year

Manufacturer   LTMGModel     FB30Load capacity    kg3000Load center mm500Power unit   BatteryOperator type   Driver/seat         Tire type   Pneumatic                  Wheel(x=driving)  Front/rear 2X/2Max. lifting height    mm3000Free lift    mm165Fork size L*W*Tmm1070*125*45Tilt range     Mast forward/backward deg6/12Overall length(without fork)  mm2510Total width  mm1225Mast height (fork lowering) mm2075Overall height fork raised With backrest mm4250Height to head guard mm2190Turning radius(outside) mm2140Load distance mm480Min. right angle stacking aisle not add load length&clearancemm2625Speed  Max Travellingfull load km/h13.5Max Travellingno loadkm/h15Liftingfull load mm/s240Liftingno load mm/s450Gradeability    full load%12.5Truck weight(with standard battery) kg4660Weight  distribution Fullloadfront/rear  kg6770/890Noloadfront/rear kg1885/2775TiresNumber           front/rear  2/2Model  front axle  28*9-15-12PRrear axle18*7-8-14PRWheel base  mm1600Tread    Front/rearmm1000/950Ground clearance  At lowest point(mast)mm140Frame mm120Brake Service brake   Hydraulic-foot pedal  Parking brake Mechanical-hand lever  BatteryVoltage/capacity  V/AH/5hr72V-480Weight with box (standard)kg 1220Electric motor    AC Driving motor  kw16.6DC Hydraulic driving motor  kw10 AC Hydraulic driving motor (as option)kw13.4Control type Driving AC  , lifting DC
Driving AC  , lifting AC
(as option ) Operating pressure kg/cm²175

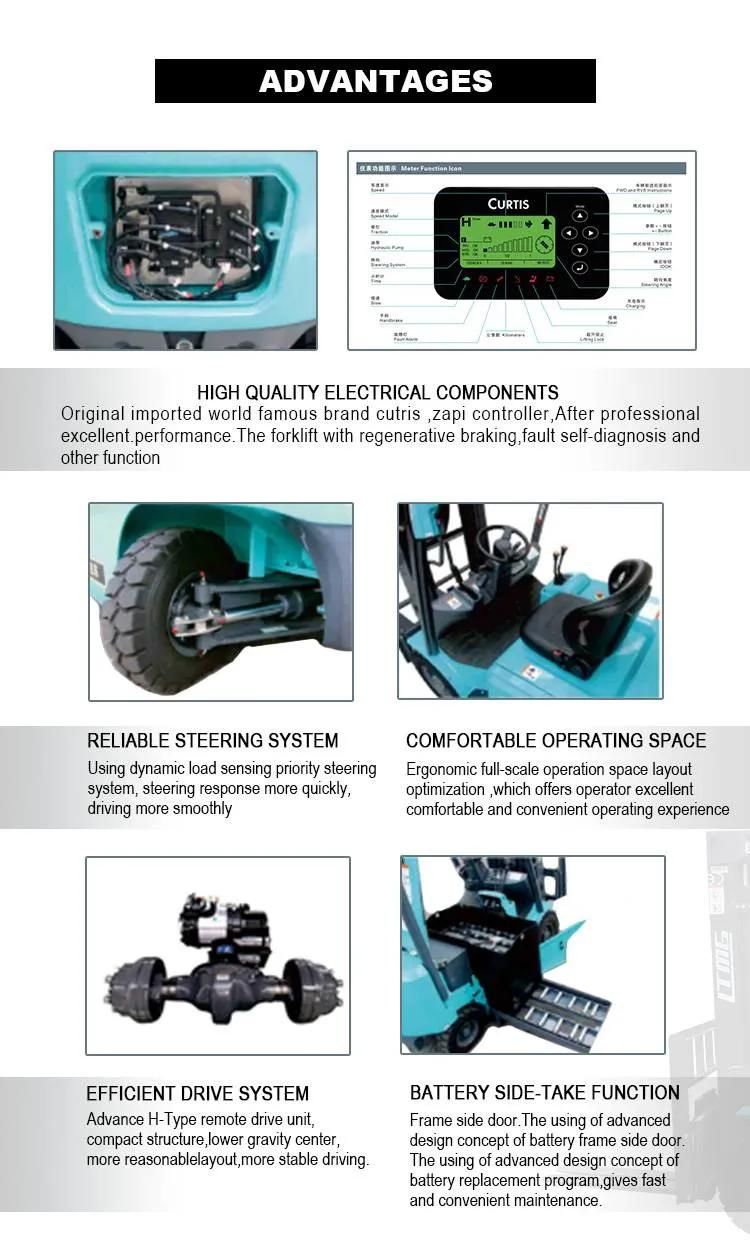

Product Features

1. New designed overhead guard protective device prevent the sudden accidents:The lifting system adopts
buffering technology to reduce shock and vibration of the mast.

2. Economical, environmentally friendly
it won't be emissions, and does not produce noise. In the running process does not produce carbon monoxide,
carbon dioxide, nitrogen oxide or other causes of global warming and air pollution harmful gases

3. Shock-absorbing landing function, can reduce due to a crash when the fork decline;
The fork lift mast vibration generated at the junction is also reduced, thereby eliminating operator attached
to the cargo scattered for fear, shock or damage arising mental tension.

4.The forklift can freely operate even in cramped and narrow channel.
In addition, with EPS power, the forklift can easily turning even in low speed.

After sales service

Nowadays we have been sell more than 60 countries. All the products of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please see to our website and product's quality certificate.

Factory Show
LTMG machinery is engaged in forklift industry over 20 years.We produce a wide range of forklifts, loaders and airport tractors
