China Best Choice 7 Ton Diesel Forklift Specification
XIAMEN LTMG CO., LTD.- Warranty：1 Year , 2000 Working Hours
- Cab Location：Not Adjustable
- Type：Diesel Forklift
- Power：Diesel Engine
- Load Capacity：5T - 10T
- Fuel：Diesel
Base Info
- Model NO.：FD70
- Load center：>500mm
- Lift height：3000~5000mm
- Condition：New
- Fork Size：1220*150*70mm
- Weight：9750kg
- Engine：Chinese Engine,Isuzu
- Wheelbase：2250mm
- Color：Could Be Designed by Buyer
- Free Lift：205mm
- Tire Type：Pneumatic
- Rated Power：82.3kw,2000rpm
- Height to Head Guard：2470mm
- Transport Package：Nude Packing, Fixed in Container
- Specification：3560*2010*2500mm
- Trademark：LTMG
- Origin：China
- HS Code：84272090
- Production Capacity：1000sets,Year
Description
Manufacturer LTMA LTMG Model FD50TF FD70 Load capacity kg 5000 7000 Load center mm 500 600 Power unit Diesel Diesel Operator type Driver/seat Driver/seat Tire type Pnenumatic Pnenumatic Wheel Front/rear 2/2 4/2 Max. lifting height mm 3000 3000 Free lift mm 140 210 Fork size L*W*T mm 1070*150*55 1220*150*70 Tilt range Mast forward/backward deg 6/12 6/12 Overall length(without fork) mm 3245 3560 Total width mm 1430 2010 Mast height (fork lowering) mm 2270 2500 Overall height fork raised With backrest mm 4110 4415 Height to head guard mm 2265 2470 Turning raduis(outside) mm 2910 3350 Front face of fork to front axle mm 615 620 Min. right angle stacking aisle mm 2960 3040 Speed Max Travelling full/no load km/h 18/19 26/30 Lifting full/no load mm/s 380/430 450/550 Lowering full/no load mm/s 380/340 450/500 Max.drawbar pull full/no load kg 4500/2000 5400/2200 Gradeability at 1.6km/h full/no load % 25 29 Truck weight kg 8150 9750 Weight distribution Full load front/rear kg 10280/1790 14520/1930 No load front/rear kg 3330/4500 3760/5690 Tires Number front/rear 2/2 4/2 Tires Model front axle 300-15-18PR 8.25x15-14PR rear axle 7.00-12-12PR 8.25x15-14PR Wheelbase mm 2000 2250 Tread Front/rear mm 1180/1190 1470/1700 Ground clearence At lowest point(mast) mm 100 190 Frame mm 240 230 Service brake Power brake power brake Parking brake Mechanical-hand lever Mechanical-hand lever Battery Voltage/capacity V/AH 2-12/80 2x12V-80AH Engine Model ISUZU 6bg1 ISUZU 6BG1 Rated power kw/rpm 82.3/2000 82.3/2000 Rated torque N.m/rpm 416/1400-1600 418/1500 Number of cylinders 6 6 Placement L 6.494 6.494 Fuel tank capacity L 140 140 Hydraulic system pressure kg/cm² 200 200

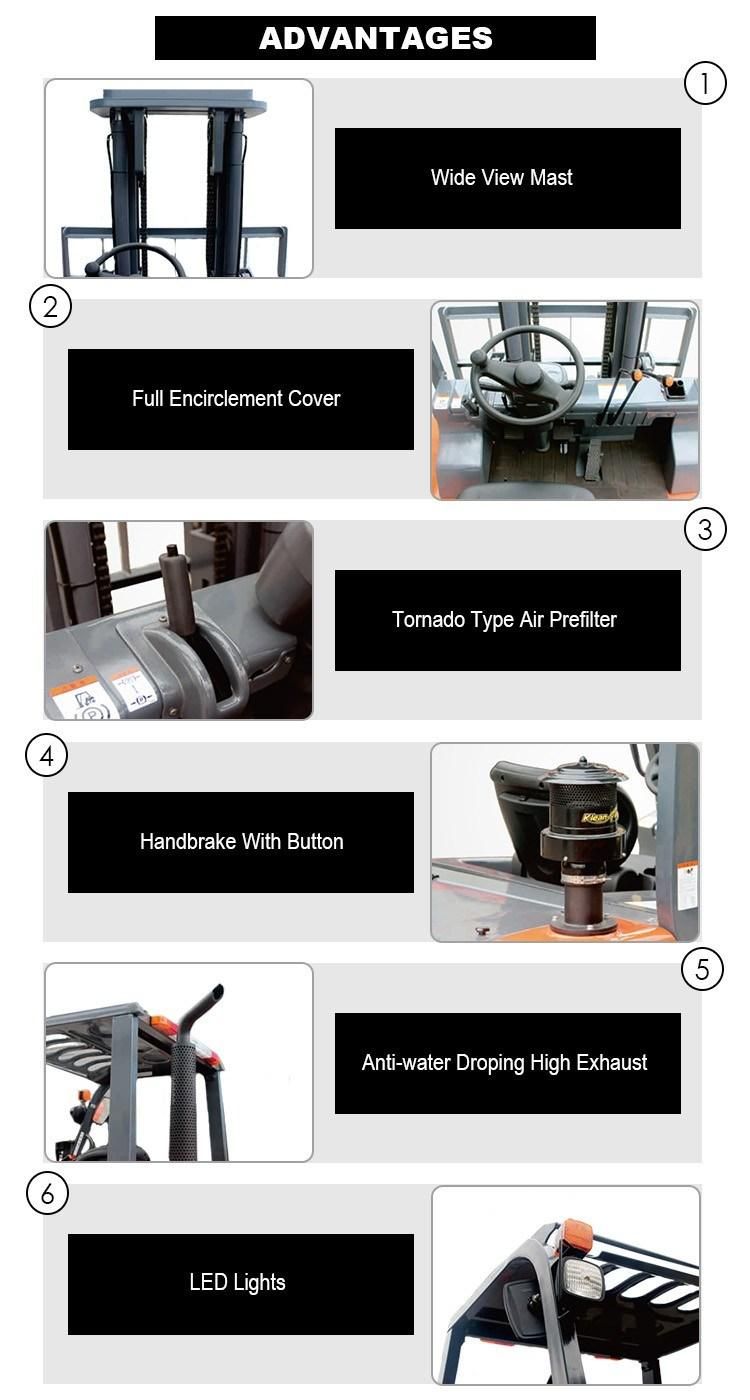

Product Features
1. Equipped with Chinese powerful and reliable engines with excellent environmental performance; Original imported Isuzu, Mitsubishi and Cummins engines are optional.
2. Work lights and warning lights make it safer and more efficient even in poor lighting conditions
3. New designed overhead guard protective device prevent the sudden accidents: The lifting system adopts buffering technology to reduce shock and vibration of the mast.
4.high strength-solder bath mast. Wide filed of the front vision ensures the safety of the operation and improves work efficiency.
Factory Show
LTMG machinery is engaged in forklift industry over 20 years.We produce a wide range of forklifts, loaders and airport tractors
Customers Show/Application Show
Our LTMG Forklift is widely used in the port, wharf, industrial and mining enterprises, station, warehouse, and others.
The quality of our LTMG forklift has been recognized by our customers
After Sales Service
LTMG grants our clients a twelve-month-period or 2000 working hours warranty for any machine purchased from us.
LTMG can also help clients coordinate with trained service personnel to provide you detailed and extensive knowledge about your specific machine. With our technical advises, your machine service life can be significantly prolonged and sustained with high capacity.
