• Model NO.：FD320
• Load center：1250mm
• Lift height：3000~5000mm
• Condition：New
• Product Name：Ltmg Large Diesel Forklift 30 Ton 32 Ton Heavy Dut
• Product Type：Heavy Duty Forklift
• Item：30 Ton Forklift
• Truck Weight：38000kg
• Fork Size：2400*300*120 mm
• Engine：Weichai Engine
• Tire Specs：14.00-24-32pr
• Color：Yellow
• Mast：2 Stage,3 Stage
• Wheel(F/R)：4,2
• Ground Clearance：265mm
• Transmission：Hydraulic
• Certificate：CE,ISO
• Tire Type：Pneumatic
• Transport Package：Container
• Specification：9640*3200*3960mm
• Trademark：LTMG
• Origin：China
• HS Code：8427209000
• Production Capacity：800sets,Year

ModelUnitFD300Rated load 30000Load center 1250Mast tilt angle (front/rear)º6/12Overall dimensionsLengthMm9640WidthMm3200HeightMm4000Mast lifting heightMm3500Fork size (L*W*H)Mm2440X320X110Min.Turning radiusMm6800Max.Travel speed (with load)Km/h28Lifting speed (with load)Mm/s260Gradeability (with load)%20WeightKg39500Front 4X14.00-24/28PRRear 2X14.00-24/28PRWheel treadFrontMm2490RearMm2450WheelbaseMm4800Min.Ground clearanceMm350Model WD10G240E21Rated power/rotate speedKW/r.Pm175/2200Max.Torque/rotate speedN.M/r.Pm1000N·m /1600 rpm

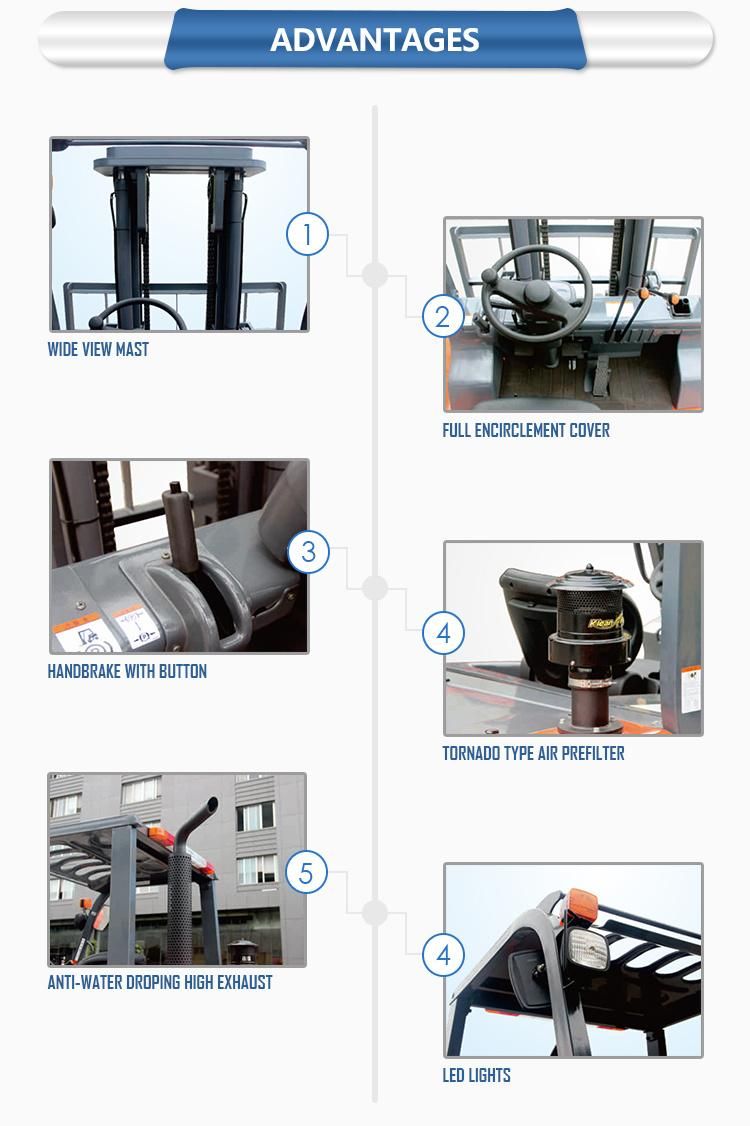

Product Features

1.Equipped with Chinese powerful and reliable engines with excellent environmental performance

2.Install heavy-duty driving axle to ensure safety work at bad working conditions

3.Adopt advanced load sense technology which offers flow for steering system to save energy ,
Protect environment ,and lower the system heat.

4.High intake will help improve engine intake cleanliness;Built-in air filter, making the car more beautiful

5.High technology:Maintenance free radiators adopt Germany technology.

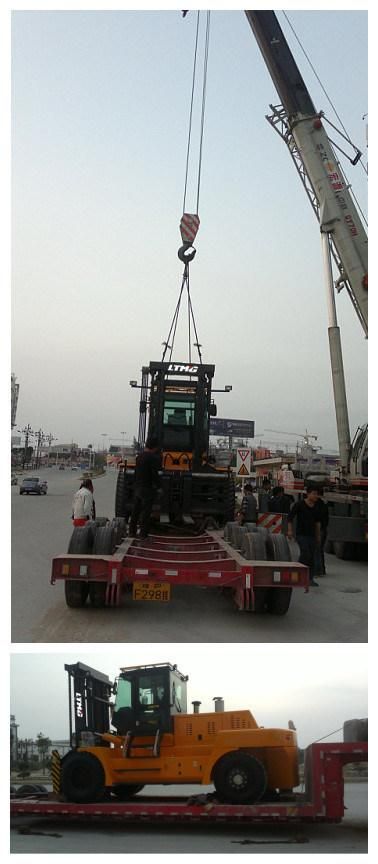

Packing & Shipping

Factory Show
LTMG machinery is engaged in forklift industry over 20 years.We produce a wide range of forklifts, loaders and airport tractors



Customers Show/Application Show
Our LTMG Forklift is widely used in the port, wharf, industrial and mining enterprises, station, warehouse, and others.
The quality of our LTMG forklift has been recognized by our customers.



After sales service

LTMG always treat after-sale service important as the same as product quality.
LTMG grants our clients a twelve-month-period or 2000-hours warranty for any machine purchased from us.
LTMG can also help clients coordinate with trained service personnel to provide you detailed and extensive knowledge about your specific machine.With our technical advises, your machine service life can be significantly prolonged and sustained with high capacity.
