• Model NO.：FB35
• Lift height：3000~5000mm
• Condition：New
• Fork Size：1070mm*125mm*50mm
• Weight：5190kg
• Wheelbase：1600mm
• Load Distance：485mm
• Max. Lifting Height：3000mm
• Overall Length(Without Fork) ：2550mm
• Ground Clearance ：120mm
• Ground Clearance：120mm
• Gradeability：12.5
• Turning Radius(Outside)：2180mm
• Transport Package：Container
• Specification：2550mm*1225mm*2190mm
• Trademark：LTMG
• Origin：China
• HS Code：8427109000
• Production Capacity：800sets,Year

Manufacturer    LTMGModel   FB35Load capacity  kg3500Load center mm500Power unit   BatteryOperator type    Driver/seatTire type Front/rear   Pneumatic/SolidWheel(x=driving)  Front/rear   2X/2Max. lifting height  mm3000Free lift mm165Fork sizeL*W*Tmm1070*125*50Tilt rangeMast forward/backwarddeg6/12Overall length(without fork) mm2550Total width  mm1225Mast height (fork lowering)  mm2075Overall height fork raisedWith backrest mm4250Height to head guard  mm2190Turning radius(outside)  mm2180Load distance mm485Min. right angle stacking aisle  not add load length&clearancemm2665Speed  Max Travellingfull loadkm/h13Max Travellingno load km/h14.5Liftingfull load mm/s220Liftingno loadmm/s450Gradeability full load%12.5Truck weight(with standard battery)   kg5190Weight  distribution Fulloadfront/rearkg7480/1210Noloadfront/rearkg2000/3190TiresNumber front/rear   2/2Model frontaxle 28*9-15-12PRrear axle     18*7-8Wheelbase mm1600Tread  Front/rearmm1000/950Ground clearance  At lowest point(mast) mm140Frame mm120Brake Servicebrake Hydraulic-foot pedal Parking brake Mechanical-hand lever BatteryVoltage/capacity  V/AH/5hr72V-560Weight with box (standard) kg 1290Electric motorAC Driving motor       kw16.6DC Hydraulic driving motor kw13 AC Hydraulic driving motor (as option)kw13.4Control type Driving AC  , lifting DC
Driving AC  , lifting AC(as option )Operating pressure kg/cm²175
Product Features

1.The standard LED lamps and warning lights make it safer,more energy efficient and create better working condition.
2.Thicker reinforcing plate ensures the safety and efficiency.
3.New designed overhead guard protective device prevent the sudden accidents.
4.Driver could easy to read and understand it according to the right instrument panel with clear meter display.
5.High voltage and large capacity battery can supply the forklift with strong power;GS & HOPPECKE battery group is optional according to customers' requirements.

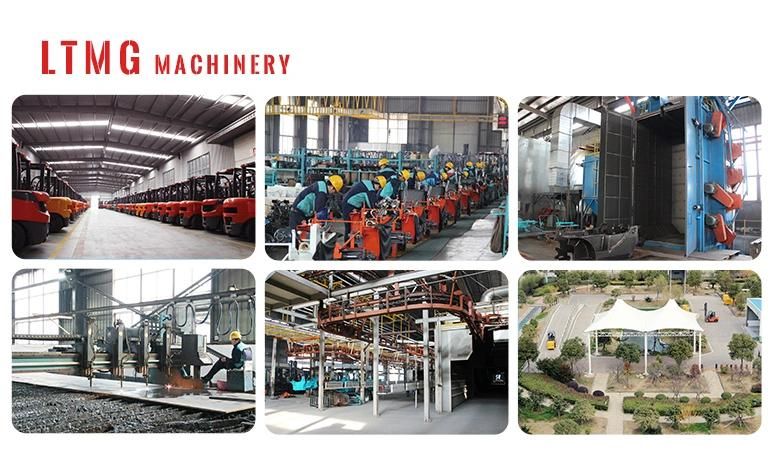

Factory Show
LTMG machinery is engaged in forklift industry over 20 years.We produce a wide range of forklifts, loaders and airport tractors
If you are interested in our product,you could visit our website.
Website:
Ltmg.group
http://ltmamachine.en.made-in-china.com (Group)
http://ltmamachine.en.made-in-china.com  (Forklift)
http://ltmamachine.en.made-in-china.com  (Loader)
http://ltmamachine.en.made-in-china.com (Airport GSE)

Customers Show/Application Show
Our LTMG Forklift is widely used in the port, wharf, industrial and mining enterprises, station, warehouse, and others.
The quality of our LTMG forklift has been recognized by our customers.


After sales service
LTMG always treat after-sale service as important as sale.
Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with 1 year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.
