• Model NO.：FD20
• Lift height：3000-6000
• Condition：New
• Mast Type：Duplex 3m, Triplex Full Free 4.5m,6m
• Engine Model：Chinese Xinchai Engine, Japanese Isuz, Mitsubishi
• Side Shifter：Can Be Customized
• Transmission Type：Auto Electric Hydraulic Transmission
• Steering Gear：USA Eaton Brand
• Hydraulic System：Japanese Hydraulic System
• Title Cylinder Anti-Dust Protection：Yes
• Paper Roll Clamp：Can Be Customized
• Solid Tire：Can Be Customized
• Color：Red,Yellow,Green,Customized
• Transport Package：Nude Package,Container Delivery
• Specification：2570*1175*2120 mm
• Trademark：SNSC
• Origin：China
• HS Code：84272090
• Production Capacity：500units,Month

mast typelifting heightstandard duplex mast3m-4mduplex full free mast3m-4mtriplex full free mast3.6m/4m/4.5m/5m/5.5m/6m/7m

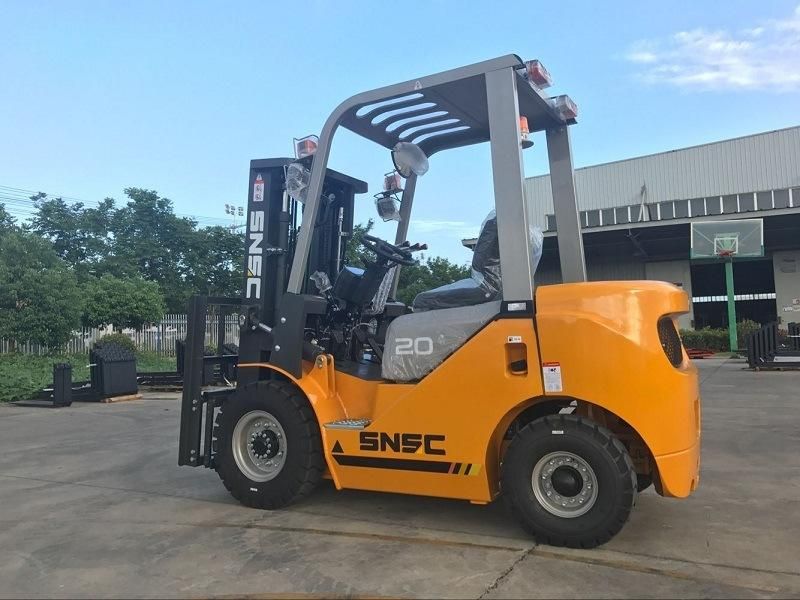

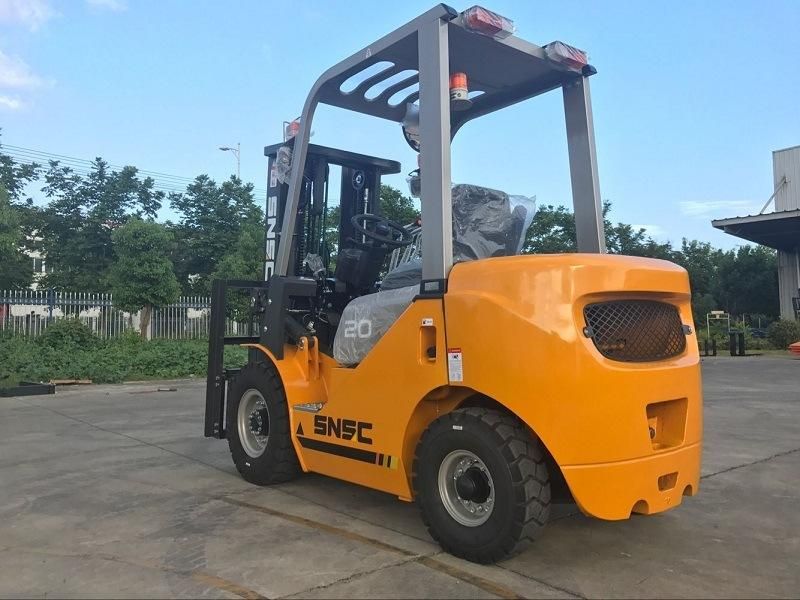

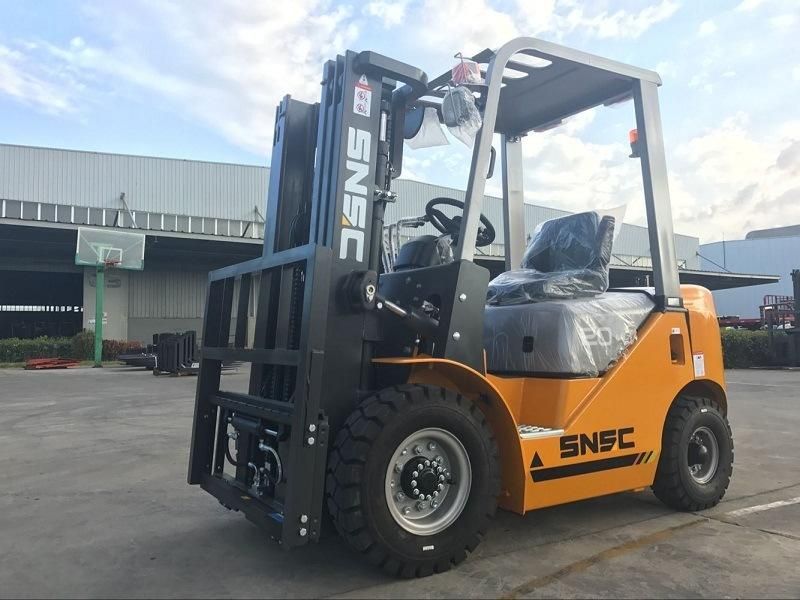

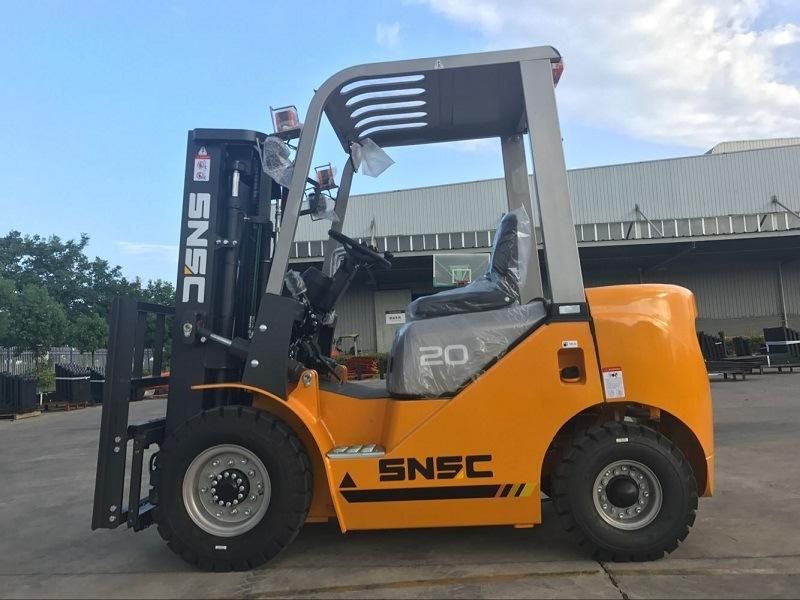

Specifications of SNSC forklift 2ton diesel forklift truck
This is our standard 2ton diesel forklift techincal specifications.
We also can customized the fork lifter according to our customer's demands and working conditions.FD20 FORKLIFT SPECIFICATIONSNo.SpecificationsUnitFD2011CharacteristicsPower diesel22Rated Capacitykg200033Center of loadmm50044Lifting heightmm300055Free lifting heightmm13566Forks L×W×Hmm1070x122x4077Tilt Forward/Backward.6/1288Min.turning radiusmm224099Min.ground clearance(Mast)mm1101010Overhead guard heightmm21201111Height from seat to overhead guardmm9431212Front overhangmm4731313PerfMax.traveling speed(loaded)km/h191414Max.lifting speed(loaded/empty)mm/s470/5101515Drawbar pull/GradeabilitykN/%17/201616DimensionsOverall length (without fork)mm25701717Overall widthmm11751818Mast lowered height mm19901919Mast extended heightmm40002020ChassisTireFront 7.00-12-12PR2121Rear 6.00-9-10PR2222Wheelbasemm16002323Tread widthFront/Rearmm970/9702424Curb weightNone-loadkg33502525PowertrainBatteryVoltage/CapacityV/Ah12/902626EngineModel XC490BPG2727Rated powerkw/r.p.m37/26502828Rated torqueNm/r.p.m148/20002929Cylinder amount 43030Bore×Stroke mm90x1003131Displacement 2.543232Fuel tankL603333Transmission 1/1 automatic transmission3434Working pressureMPa17.5

Our Factory Strength
We, SNSC  fork lifter factory, are top 3 fork lifter montacargas manufactures and top 20 in the world. with 130,000 square meters production area, over 500 employees,30,000 units forklifter diesel truck production capacity per year,5000 sets export volume.
We are big fork lifter manufacture not small maker. We are responsible for our customers and forklifters.
''QUALITY LEADING THE FUTURE" is our belief for ever.
We'd like to offer our best quality forklift to our customers from all over the world.


Packing and delivery
Our 2ton DIESEL forklift can be delivered by container or ro-ro shipment.
One 20'GP containr can hold 3 units 2tons diesel forklifts;
one 40'GP container can hold 6 units 2ton diesel engine forklift trucks.


Related SNSC forklift products:
Our SNSC forklifts have different forklift series that can meet our customer's different needs.
1. Counter Balanced Diesel powered forklift truck range from 1.5 to 10ton;(FD30,FD35,FD40,FD45,FD50,FD60,FD70)
2. Battery powered electric forklift truck range from 1.5 to 3.5ton;
(FB15, FB20, FB25, FB30, FB35)
3. Counter Balanced LPG and gasoline powered dual fuel forklift trucks range from 1.5 to 3.5 ton;
(FL15, FL18, FL20, FL25, FL30, FL35)
4. warehouse equipments, like electric pallet truck, electric reach truck, electric stacker & electric trailer, scissor lift, double deep electric reach truck, racks.

If you have interests in our 2ton diesel forklift, welcome you to contact Nicole.
