Optional Attachments for Different Usage Purpose Forklift Truck
Henan Haiheng Import and Export Co., Ltd.- Type:Powered Pallet Truck
- Power:Diesel Engine
- Load Capacity:1T - 5T
- Fuel:Diesel
- Load center:500mm
- Lift height:3000~5000mm
Base Info
- Model NO.:HH-15-1
- Condition:New
- Configuration:According to Your Request
- Rated Capacity:3000kg
- Power Type:Diesel
- Travel Speed:18,19
- Wheelbase:1700mm
- Fork Size:1070X125X45
- Tire Type:Pneumatic
- Wheel:2,2
- Gearbox Change Speed Type:Hydraulic,Mechanical
- Free Lift Height:145mm
- Transport Package:DHL, FedEx, TNT, UPS. EMS, etc.
- Specification:CE, ISO
- Trademark:CHHGC
- Origin:Henan, China
- HS Code:84272
- Production Capacity:5000PCS,Year
Description
GeneralManufacturer
CHHGC Model
HH20 HH25 HH30 HH35 Rated capacity kg 2000 2500 3000 3500 Load center mm 500 Gearbox change speed type
Hydraulic/Mechanical Power type
Diesel Tire type Front/ Rear
Pneumatic Wheels Front/ Rear
2/2 Dimensions Lift height mm 3000 Free lift height mm 140 145 Fork size L*W*T mm 1070x120x40 1070x120x45 1070x125x45 1070x130x45 Mast tilt angle Fwd/Bwd deg 6/12 Overall length (without fork) mm 2510 2580 2720 2775 Overall width mm 1150 1225 Mast height fork lowered mm 2050 2080 2230 Overall height fork raised mm 4040 4272 Overall height (overhead guard) mm 2060 2090 Turning radius (outside) mm 2170 2240 2460 2540 Load distance (centerline of front axle to front face of forks) mm 484 489 494 500 Travel speed (full load /no load ) (Hydraulic) km/h 17/19 18/19
Mechanical) shift 1 km/h 8.5/9 8.8/9
shift 2 km/h 18.5/19 18.5/20 Wheel base mm 1650 1700 Tread Front mm 970 1000
Rear mm 970 Min. Under-clearance (full load / no load ) Bottom of mast mm 85/105 110/135
Bottom of frame mm 115/120 135/140 Performance Speed Travel speed With load km/h 17 18
Without load km/h 19.5 19.5
Lifting speed With load mm/sec 470 430 400
Without load mm/sec 600 500 450 Max. Drawbar pull With/ without load kg 1250/850 1250/850 1100/1000 1304/1190
1650/850 1650/850 1350/1000 1696/1190 Max.Gradeability With/ without load % (fan) 20/20 17/18 15/18 15/18
21/22 18/19 19/20 15/18 Max.Gradeability
% 20 15 Weight Self weight kg 3550 3880 4380 4750 Weight distribution With load Front kg 4730 5480 6455 7320
Rear kg 590 700 825 930
Without load Front kg 1520 1465 1720 2040
Rear kg 1800 2215 2560 2710 Tyre Tyre Size Front
7.00-12-12PR 28x9-12-12PR 28x9-15-14PR
Rear
6.00-9-10PR 6.50-10-10PR Brake Brake Service
Hydraulic-Foot pedal
Parking
Mechanical-Hand lever Transmission Battery Voltage /Capacity V/AH 12/100 Internal combustion engine Model for option
1. XINCHANG ; 2. ISUZU ;3. YANMAR; 4. DEUTZ Transmission Type
Hydraulic/Mechanical
shift (Fwd/Rvs)
1/1 (2/2)
Work pressure Mpa 17.5
Optional Attachments Alternative attachmentsSideshifter Fork positioner Paper Roll Clamp Push/pull Carton Clamp Rotator Carpet boom Tipping Multi-Purpose Clamp Drum Clamp Turnaload turnafork Single Double Pallet Handlers Double Wide sideshifter Intelligent weighing fork Glass handler

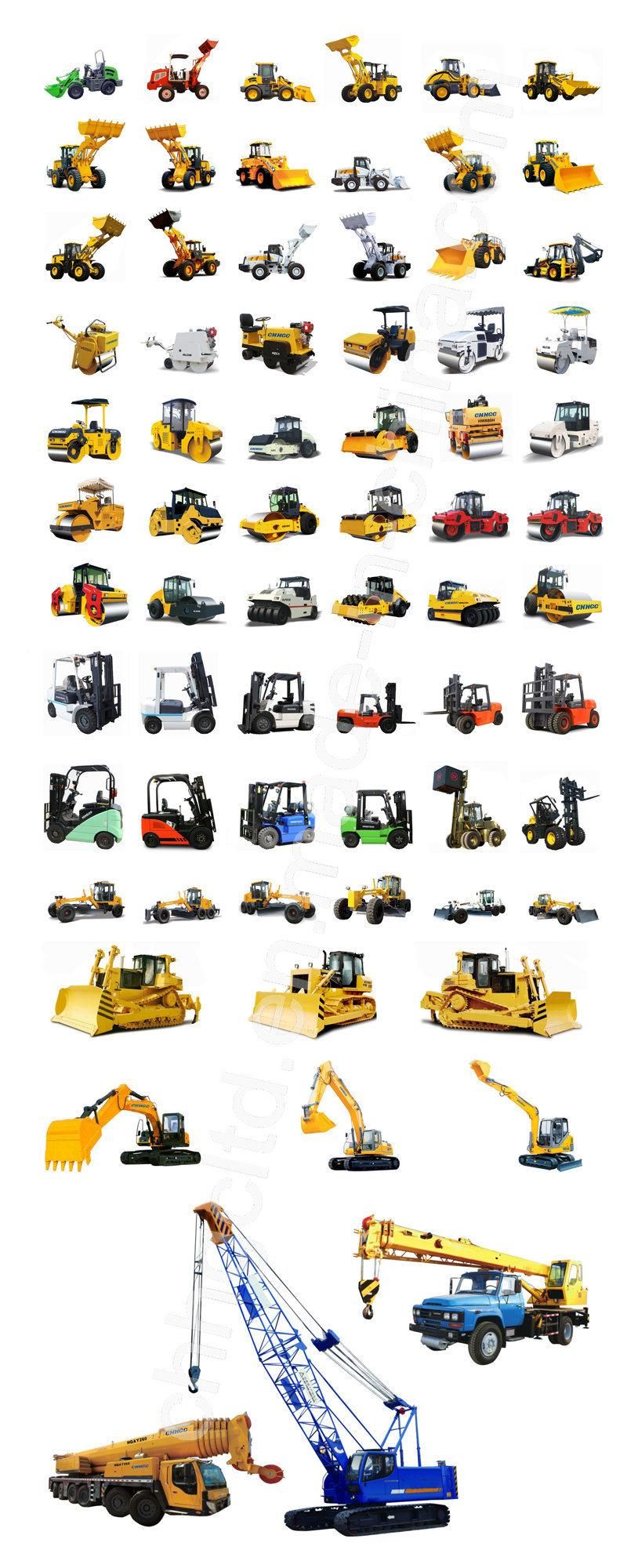

Our Products

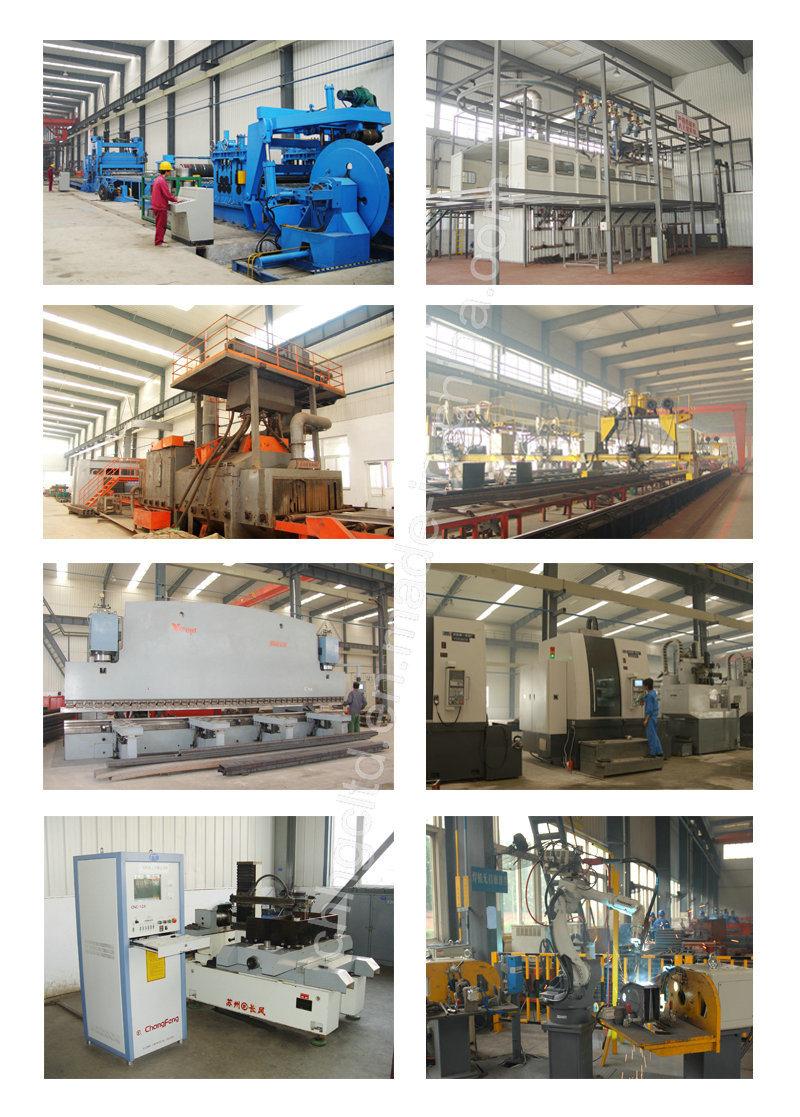

Workshop
Others
Why us?
1)A professional international sales team, which enable us to turn inquiries into final products and export them to numerous countries and regions without barriers;
2) A well managed quality control system to customize on clients requirements. We can design according to customers usage invironment.
3)Unparalleled after sales service
Our Advantages
1- With well experienced semi trailer production company to offer high quality and competitive prices forklift to our worldwide valuable customers.
2- An professional team which is experienced with international market and has strong technical capability to customized cost effective.
3- Sell well in the international markets, such as African market ( Sudan, Angola, Zimbabwe, Liberia, Djibouti, Congo, Kenya, Ghana ect. ), Middle East, South Asia and South-America market.
4- 2 Years Guarantee.
Quality Control
1- For each forklift, we always do the testing and inspect the quality.
2- We give inspection certificate according to customer demand for every trailer which given by an independent third party certification company
3- We provide out-standing quality assurance
4- No any quality complaints for 9 years.
Perfect Service & Support
1- Whenever reliability, safety and economic is needed, there is a a solution. CHHGC provides the best possible quality semi trailers to worldwide valuable customers.
2- With a full range of trailer spate parts support, spare parts supplying within 3 days
3- Seriously consider customer's requirements, and welcome different cooperation mode.
4- Provide professional trailer drawing
5- Considerate after-sales service & product maintenance
Packaging and Shipping
1. All the forklifts will be made anti rust before shipment
2. Different shipping method for different situation, Ro-Ro Vessel, Bulk Vessel, Flat-Rack, Container, etc
3. Shipment tracking service
FAQ
1. How about the products range do you produce?
We are specilized in producing forklift with 1.5tons to 36tons, load capacity.
2. Which brand engine do you have for?
We company choose good quality engine for, Changchai, Xichai, Weichai Power engine / cummins engine / Deutz diesel engine and so on optional.
3. What advantages of your products and company?
1. )adjusting design are available from us, to adapt the market and using environment better, and help customers gain more competitions in your market.
2. ) ROPS cabin, double-layer thick cab, more strong and resistant
3. ) adjusting steering wheel and adjusting seat, more comforable drive environment for driver
4. ) All of our products passed the strict test before sale to customers.
Optional Attachments Alternative attachments
Our Products

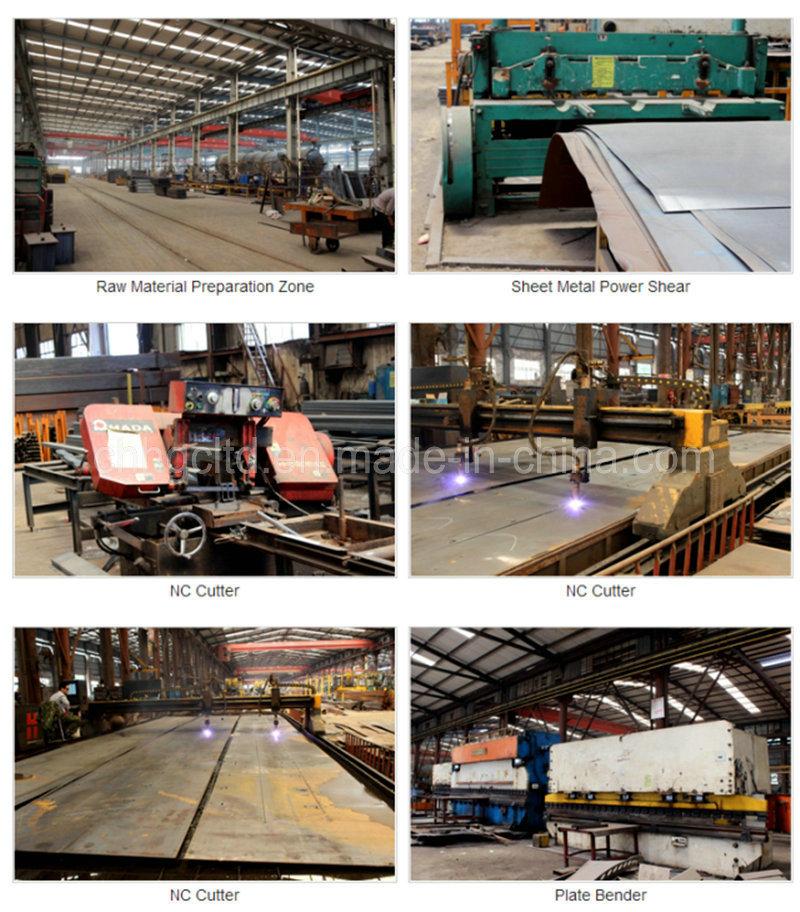

Workshop
Others
A: date of delivery: 15-25 days after received the deposit
B: payment terms: T/T(30% deposit, balance paid before shipment). Or L/C at sight
C: Guaranty period: one year or 2000hours upon receiving goods.
Why us?
1)A professional international sales team, which enable us to turn inquiries into final products and export them to numerous countries and regions without barriers;
2) A well managed quality control system to customize on clients requirements. We can design according to customers usage invironment.
3)Unparalleled after sales service
Our Advantages
1- With well experienced semi trailer production company to offer high quality and competitive prices forklift to our worldwide valuable customers.
2- An professional team which is experienced with international market and has strong technical capability to customized cost effective.
3- Sell well in the international markets, such as African market ( Sudan, Angola, Zimbabwe, Liberia, Djibouti, Congo, Kenya, Ghana ect. ), Middle East, South Asia and South-America market.
4- 2 Years Guarantee.
Quality Control
1- For each forklift, we always do the testing and inspect the quality.
2- We give inspection certificate according to customer demand for every trailer which given by an independent third party certification company
3- We provide out-standing quality assurance
4- No any quality complaints for 9 years.
Perfect Service & Support
1- Whenever reliability, safety and economic is needed, there is a a solution. CHHGC provides the best possible quality semi trailers to worldwide valuable customers.
2- With a full range of trailer spate parts support, spare parts supplying within 3 days
3- Seriously consider customer's requirements, and welcome different cooperation mode.
4- Provide professional trailer drawing
5- Considerate after-sales service & product maintenance
Packaging and Shipping
1. All the forklifts will be made anti rust before shipment
2. Different shipping method for different situation, Ro-Ro Vessel, Bulk Vessel, Flat-Rack, Container, etc
3. Shipment tracking service
FAQ
1. How about the products range do you produce?
We are specilized in producing forklift with 1.5tons to 36tons, load capacity.
2. Which brand engine do you have for?
We company choose good quality engine for, Changchai, Xichai, Weichai Power engine / cummins engine / Deutz diesel engine and so on optional.
3. What advantages of your products and company?
1. )adjusting design are available from us, to adapt the market and using environment better, and help customers gain more competitions in your market.
2. ) ROPS cabin, double-layer thick cab, more strong and resistant
3. ) adjusting steering wheel and adjusting seat, more comforable drive environment for driver
4. ) All of our products passed the strict test before sale to customers.
