• Model NO.：FG25
• Lift height：3000mm
• Condition：New
• Fork Size：1070mm*122mm*40mm
• Warranty：1 Year or 2000 Hours
• Weight：3580kg
• Tire Type：Pneumatic
• Engine：Nissan
• Color：Decided by Buyer
• Mast Height (Fork Lowering)：1995mm
• Free Lift：160mm
• Battery：12,60V,Ah
• Wheelbase：1600mm
• Transport Package：Container
• Specification：2530mm*1150mm*2120mm
• Trademark：LTMG
• Origin：China
• HS Code：8427209000
• Production Capacity：800sets,Year

Features   Manufacturer                            LTMGModel                                         FG25Load capacity                        kg2500Load center mm500Power unit   Gasoline/LPGOperator type  Driver/seat Tire type     Front/rear PnenumaticWheel Front/rear 2/2Dimension Max. lifting height                    mm3000Free lift                        mm160Fork size        L*W*Tmm1070*122*40Tilt range                               Mast forward/backward            deg6/12Overall length(without fork)     mm2530Total width    mm1150Mast height (fork lowering)   mm1995Overall height fork raised       With backrest                             mm4030Height to head guard              mm2120Turning raduis(outside)           mm2240Front face of fork to front axle mm450Min. right angle stacking aislewithout load length&clearence                    mm2690PerformanceSpeedMax Travelling                   full/no loadkm/h17/19Lifting             full/no load        mm/s550/580Lowering           full/no load                    mm/s450/550Max.drawbar pull                   Power shift T/M                 full/no load                                        kg1650/830Gradeability at 1.6km/h        Power shift T/M           full/no load                                      %22/18Weight           Truck weight  kg3580Weight   distribution            Full load             front/rear        kg5370/710No   load                 front/rear      kg1390/2190Frame          Tires                                       Numberfront/rear2/2Modelfront axle 7.00-12-12PRrear axle6.00-9-10PRWheelbase                              mm1600Tread                                                Front/rearmm970/970Ground clearence                 At lowest point(mast)                mm110Framemm115Brake                                           Service brake Hydraulic-foot pedal                                            Parking brake Mechanical-hand lever                                          Engine       Battery                                         Voltage/capacityV/AH12/60Engine                                         Model Nissan K25Rated powerPS(kw/rpm)47/2250(34.6/2250)Rated torquekg-m   max.(N.m)15.7/1600(153/1600)Number of cylinders 4PlacementL2.065Fuel tank capacityL70Transmission     Speed forward/backward          Power shift T/M                        1-1 power shift T/M   Operating pressure                   Hydraulic system pressure         kg/cm²180
Product Features
      The standard LED lamps and warning lights make it safer,more energy efficient and create better werking condition.

1. Equipped with USA IMPCO gas system which is more reliable.
2. Thicker reinforcing plate ensures the safety and efficiency.
3. New designed overhead guard protective device prevent the sudden accidents.

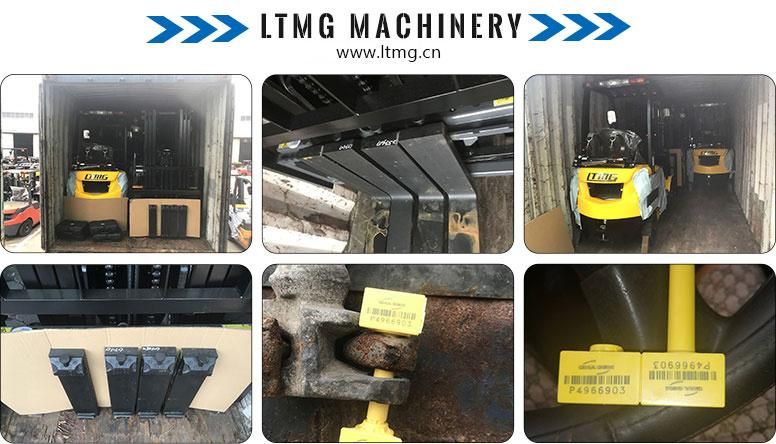

Packaging and shipping


LTMG Factory


LTMG Clients

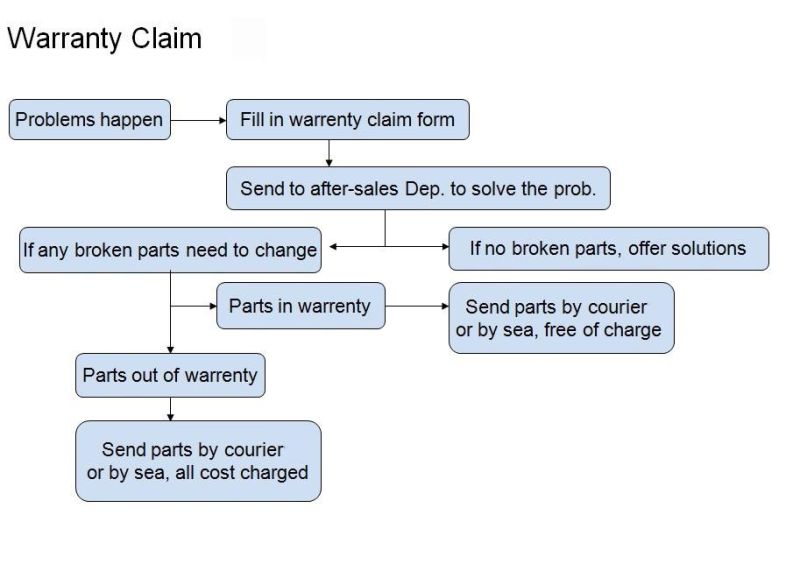

After sales service

LTMG always treat after-sale service as important as sale.
Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with one year or 2000 working hours period quality warranty.
Detail clauses and policies please check our website and product certificate.

FAQ

1.What the Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate.
Some of our products meets the EPA requirements.
LTMG neverrecruit Underage labor.

2.Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.

3.How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first.
Details to see the LTMG warranty policy for each model.

4.Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.

5.What the payment terms do you accept?
On T/T term 30% down payment is required in advance,and 70% balance shall be settled before shipment.

6.What logistics ways we can work for shipment?
We can ship construction machinery by various transportation tools.
1.For 90% of our shipment,we will go by sea,to all main continents such as South America,Middle East,Africa,Oceania and Europe etc,either by container or Bulk shipment.
2.For neighborhood countries of China,such as Russia,Mongolia, Kazakhstan,Uzbekistan etc., we can ship trucks by railway.
3.For light spare parts in urgent demand,we can ship it by international courier service,such as DHL,TNT,UPS,or Fedex.

7.Delivery time:
Standard configuration products are always in stock. The production period of Customizing products is from 7 days to 60 days.
