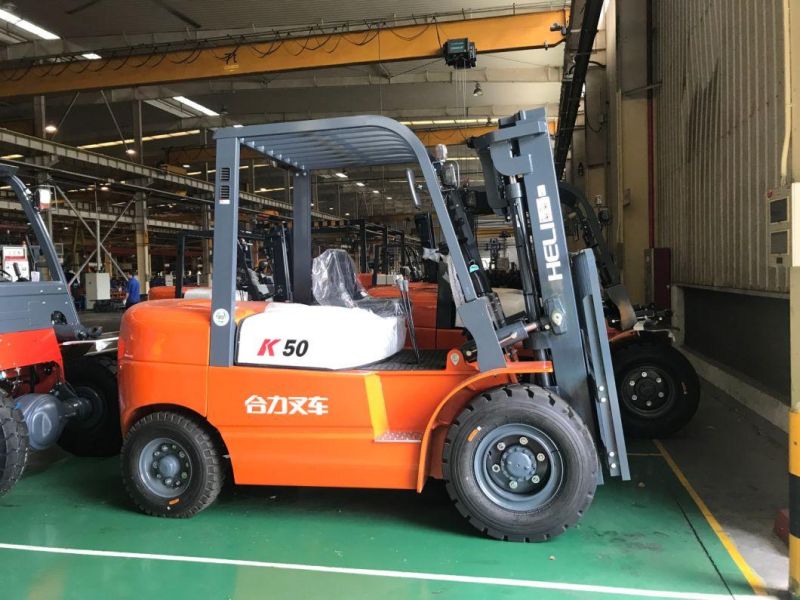

3ton Heli Diesel Forklift Cpcd30 for Sale
Maxizm Construction Machinery (Qingdao) Co., Ltd.- Cab Location：Adjustable
- Type：Diesel Forklift
- Power：Diesel Engine
- Load Capacity：1T - 5T
- Fuel：Diesel
- Load center：500mm
Base Info
- Model NO.：cpcd30
- Lift height：3000~5000mm
- Condition：New
- Power Type：Diesel
- Rated Capacity：3000kg
- Center：600mm
- Max. Lift Height：2065mm
- Free Lift Height：160mm
- Transport Package：20gp Ship 5 Units
- Specification：1070x125x25
- Trademark：Heli
- Origin：China
- HS Code：8427209000
- Production Capacity：10000
Description
Model
CPCD30
Power type
Diesel
Rated capacity
Kg
3000
Load center
mm
500
Max. Lift height
mm
2065
Max. Fork lift height(with backrest)
mm
4262
Free lift height
mm
160
Fork size(L3xWxH)
mm
1070×125×45
Mast tilting angle
°
6/12
Front/Rear overhang
mm
479/495
Min. Ground clearance
mm
135
Overall
Length to face of forklift
mm
2065
Overall width
mm
1225
Overall length(with/without fork)
mm
3752/2682
Backrest height
mm
1227
Overhead guard height
mm
2070
Traction pin height
mm
310
Wheel base
mm
1700
Turning radius(exterior/interior)
mm
2400/200
Min. Right angle aisle width
mm
2380
Speeds
Drive speeds
Km/h
18/19
Lifting speeds
mm/s
440/480
Lowering speeds
mm/s
450/500
Max. Drawbar pull
KN
21/16
Max. Grade ability
%
20/20
Total weight
Kg
4270
Tires
Wheel no. X=drive wheel
2X/2
Front
28*9-15-12PR
Rear
6.5-10-10PR
Service brake
Hydraulic foot pedal lever
Parking brake
Mechanical hand lever
Tread
Front
mm
1000
Rear
mm
970
Engine
Model
QC490GP
Rated output
Kw/rpm
39/2650
Rated torque
N. M/rpm
162/1950
No. Of cylinder
4
Displacement
L
2.54
Gearbox
F/R
T/M 1-1 Power shift T/M T/M 2-2 Manual shift T/M
Fuel tank capacity
L
60
