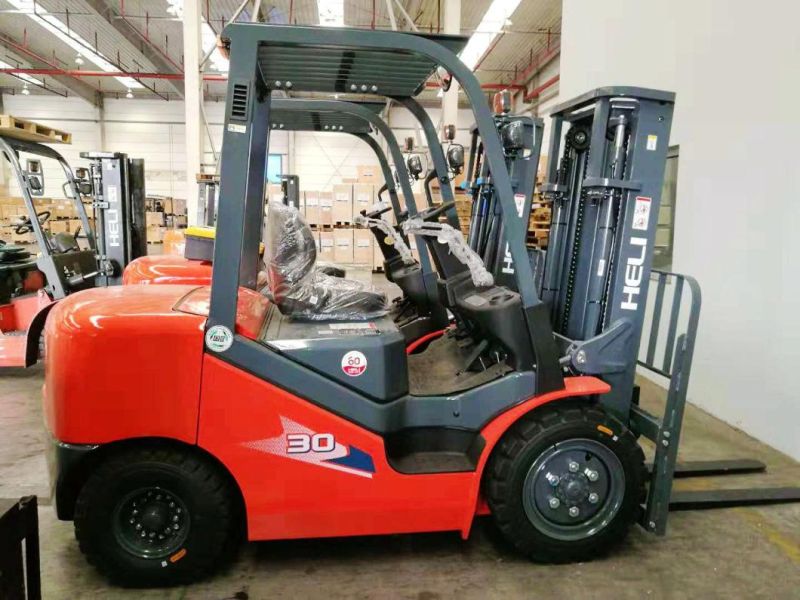

• Model NO.：CPCD30
• Lift height：3000~5000mm
• Condition：New
• Engine：QC490gp
• Rated Power：39kw
• Fork Size：1070X125X45mm
• Rated Torque：162n,M,1950rpm
• Transport Package：Nude Packaged
• Specification：2682x1225x2070mm
• Trademark：Heli
• Origin：Anhui, China
• HS Code：8427209000
• Production Capacity：50000PCS,Year

Model

CPCD30

Power type

Diesel

Rated capacity

Kg

3000

Load center

mm

500

Max. Lift height

mm

2065

Max. Fork lift height(with backrest)

mm

4262

Free lift height

mm

160

Fork size(L3xWxH)

mm

1070×125×45

Mast tilting angle

°

6/12

Front/Rear overhang

mm

479/495

Min. Ground clearance

mm

135

Overall

Length to face of forklift

mm

2065

Overall width

mm

1225

Overall length(with/without fork)

mm

3752/2682

Backrest height

mm

1227

Overhead guard height

mm

2070

Traction pin height

mm

310

Wheel base

mm

1700

Turning radius(exterior/interior)

mm

2400/200

Min. Right angle aisle width

mm

2380

Speeds

Drive speeds

Km/h

18/19

Lifting speeds

mm/s

440/480

Lowering speeds

mm/s

450/500

Max. Drawbar pull

KN

21/16

Max. Grade ability

%

20/20

Total weight

Kg

4270

Tires

Wheel no. X=drive wheel

2X/2

Front

28*9-15-12PR

Rear

6.5-10-10PR

Service brake

Hydraulic foot pedal lever

Parking brake

Mechanical hand lever

Tread

Front

mm

1000

Rear

mm

970

Engine

Model

QC490GP

Rated output

Kw/rpm

39/2650

Rated torque

N. M/rpm

162/1950

No. Of cylinder

4

Displacement

L

2.54

Gearbox

F/R

T/M 1-1 Power shift T/M T/M 2-2 Manual shift T/M

Fuel tank capacity

L

60
