• Model NO.：Cpqyd30
• Lift height：3000~5000mm
• Condition：New
• Max. Falling Speed：600mm,S
• Weight：4410kg
• Turning Radius：2480mm
• Rated Capacity：3000kg
• Engine Model：Nissan,Wf,by
• Transport Package：Nude Package
• Specification：2505*1160*2070mm

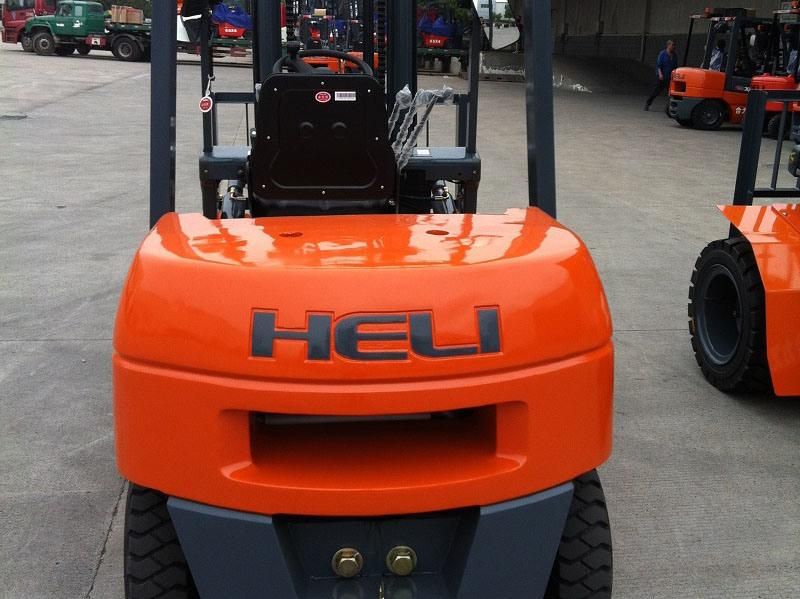

• Trademark：Heli
• Origin：China
• HS Code：84272090
• Production Capacity：1000units,Month

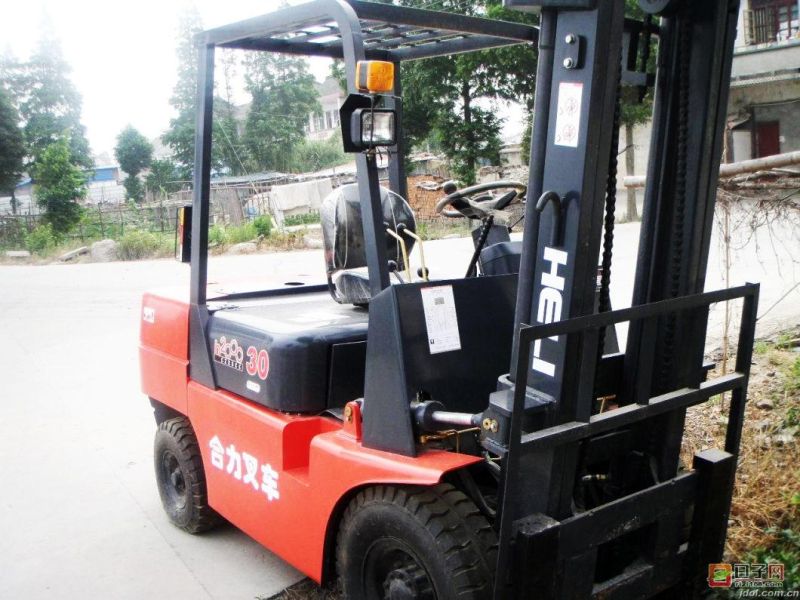

Model: CPQYD20/25/30 FeaturesPower-LP GasLP GasLP GasRated load capacitykg

2000

2500

3000Load centermm 500500500Lifting height mm 300030003000Fork size(LxWxT) mm1220x120x401220x120x451220x125x45Mast tilt angle(F/B)degree 6°/12°6°/12°6°/12°Free lift heightmm  140140140Turning radius(min)mm  221022802480Overhead guard heightmm207020702085PerformanceMax. traveling speed (Loaded/Unloaded)km/h19.5/2019.5/2019.5/20Max. lifting speed (Loaded/Unloaded)mm/s500/550500/550470/520Max. falling speedmm/s ≤600≤600≤600Gradeability% 201815SizeOverall lengthmm  254326082760Overall widthmm  116011701230
