• Model NO.：FD200
• Load center：1250mm
• Lift height：3000~5000mm
• Condition：New
• Fork Size：2440mm*280mm*110mm
• Weight：32000kg
• Engine：Shangchai
• Wheelbase：4400mm
• Color：Customized
• Mast Lifting Height：4000mm
• Free Lift：180mm
• Min. Turning Radius：6700mm
• Min. Ground Clearance：250mm
• Overall Dimensions：9190*3020*3610
• Transport Package：Nude Packing, Flat Rack
• Specification：9190mm*3020mm*3610mm
• Trademark：LTMG
• Origin：China
• HS Code：8427209000
• Production Capacity：1000set,Years

ModelUnitFD200Rated load 20000Load center 1250Free liftmm180Mast tilt angle (front/rear)º6/12Overall dimensionsLengthmm9190Widthmm3020Heightmm3610Mast lifting heightmm3500Fork size (L*W*H)mm2440X280X110Min. turning radiusmm6600Max. travel speed (with load)Km/h28Lifting speed (with load)mm/s180Gradeability (with load)%20WeightKg32000Front 4X14.00-24/28PRRear 2X14.00-24/28PRWheel treadFrontmm2200Rearmm2390Wheelbasemm4400Min. ground clearancemm250Model WD10G220Rated power/rotate speedKW/r.pm162/2200Max. torque/rotate speedN.m/r.pm850/1450

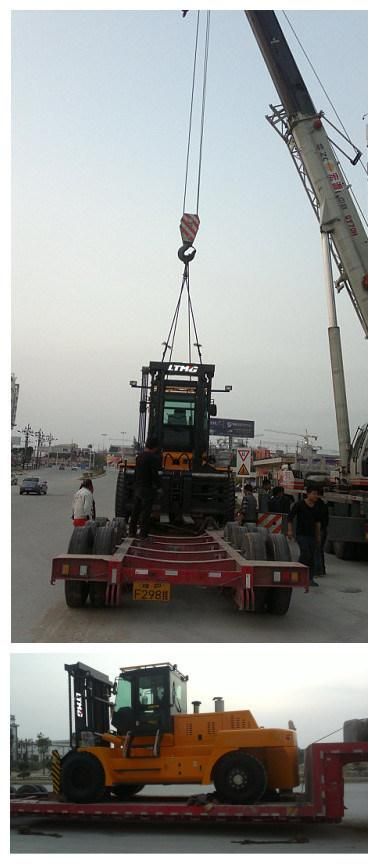

Packing and Shipping

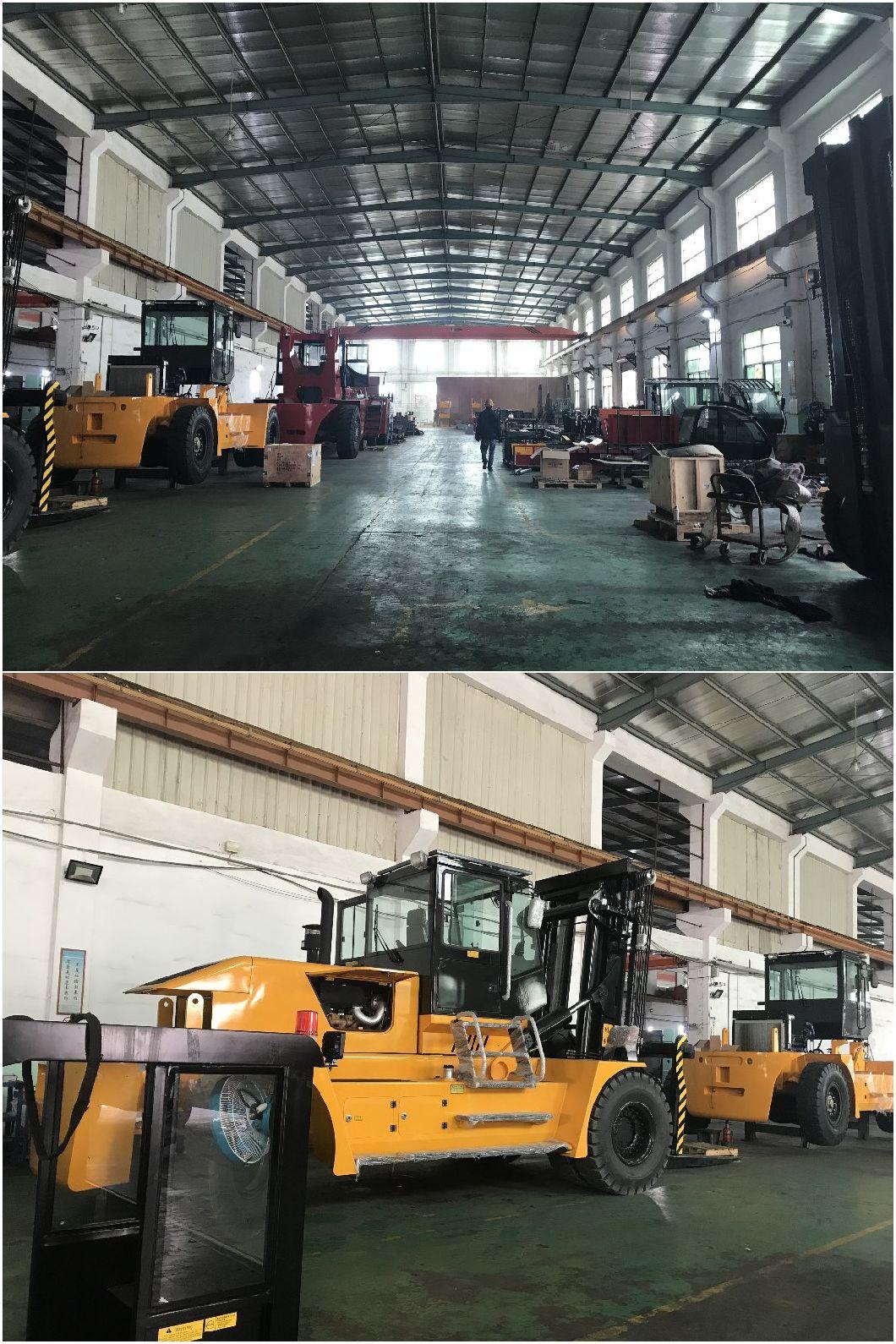

Our Factory




Our customers
LTMG Forklifts are widely used in the port, wharf, industrial and mining enterprises, station, warehouse, and others.
The quality of our LTMG forklift has been recognized by our customers.


After sales service


LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.

All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.

Detail clauses and policies please check our website and product certificate.



Welcome to contact us for further questions!
