• Model NO.：LTR150
• Lift height：3000 mm
• Condition：New
• Engine：Weichai
• Rated Power：162 Kw
• Wheelbase：3900 mm
• Transmissions：Hydraulic
• Fork Size：1600*180*100 mm
• Tilt Angle：8,12 Deg
• Wheel Loader：4,2
• Self Weight：23800 Kg
• Rated Torque：1460 N.M
• Turning Radius：5500 mm
• Front Overhang ：950mm
• Max.Grade Abnlity：25
• Transport Package：Container
• Specification：23800 kg
• Trademark：LTMG
• Origin：China
• HS Code：84272090
• Production Capacity：500units,Year

GeneralManufacture LTMGModel LTR150Power type DieselRated loading capacity Kg16000Load center mm800





DimensionsLift heightmm3000Free lift height mm195Fork size mm1600×180×100Fork distanceMin./Max.mm400/1480Mast tilt anglcFront/Afterdeg8/12Front overhang mm950


Overall dimensionsOverall length mm75000Overallwidth mm2600Mast lowered heightmm2980Mast extended heightmm4380Overhead guard heightmm32000Turning radius mm5500Min.right angle aisle widthmm3500

Performance
No load/Full loadTraveling Speed  km/h25/24Lifting speadmm/sec320/270Max.grade abnlity%25Max. Pull force(full load)KN95Self weight kg23800

ChassisTreadFront 26.5-25Rear 26.5-25Treadwidth Frontmm1500Rearmm1550Wheelbase mm3900 Min.Ground clearance  (No load/Full load)Mast mm230/220Framemm245/240



Drive unit&controlBatteryV/AH24/100×2



Engine Manufacture  WD10G220E11Manufacture WEICHAIRated power Kw/rpm162/2300Rated torqueN.m/rpm1460/2400NO.of cylinder 6Bore×Stroke mm126×130Displace ment L9.726Fule tank capacityL200
TransmissionsTypeLHydraulicShift          Front/rear  2/1Product Features

1.Safe:
LED work lights and warning lights make it safer and more efficient evenin poor lighting conditions.
New designed overhead guard protective device prevent the sudden accidents.
Thicker reinforcing plate ensure the safety and efficiency.

2.Easy to operate:
Linde-Technology single chain with reinforced load backrest--makes an excellent and wider field of visionfor operator.

3.Beautiful and comfortable:
New suspension adjustable seat makes the long time operating more comfortable.
Step area is 1.5 times larger with lower step height than fellow forklifts.

4.Durable:
Sunken tilt cylinder under the floor build broader flat floor and less abrasion.
Change plastic slider to alloy copper slider, reduce the abrasion and narrow the gap between masts.
Thicker steering axle bridge deck.

5.Environmental:
Middle muffler, more environmental.

6.High technology:
Maintenance free radiators adopt Germany technology.

Shipping & Package


After sales service

Nowadays more than 100 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.

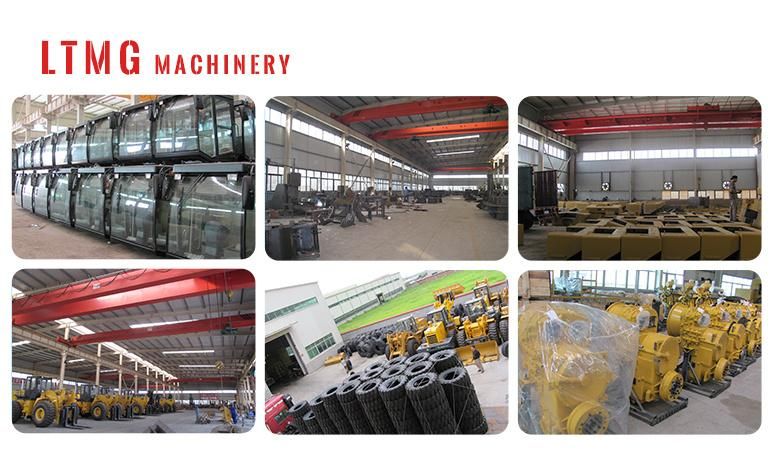

Company
