• Model NO.：FD70
• Lift height：3000~5000mm
• Condition：New
• Free Lifting Height：218mm
• Fork Size：1220*150*70mm
• Mast Tilt Angle：6,12 Degree
• Min. Ground Clearance：200mm
• Overhead Guard Height：2460mm
• Front Overhang：625mm
• Height From Seat to Overhead Guard：1050mm
• Max. Traveling Speed：26km,H
• Transport Package：Nude Package
• Trademark：SNSC
• Origin：China
• HS Code：84270290
• Production Capacity：100 Sets Per Month

SpecificationsUnitFD70FeaturesPower type  DieselRated load kg7000Load center mm600Lifting height mm3000Free lifting height mm218Fork size L*W*Tmm1220*150*70Mast tilt angleFront/RearPerformanceMax. travelling speedloadedkm/h26Max. lifting speedloaded/emptymm/s370/450Max. traction forceloadedKN51.4Max. climbing ability %20DimensionOverall lengthwithout forkmm3466Overall width mm2235Mast lowered height mm2500Mast extended height mm4417ChassisTyreFront 8.25-15-14PRRear 8.25-15-14PRWheel base mm2250Wheel threadFront/Rearmm1470/1700Weight(without load) kg9340PowertrainBattery V/AH(12/90)×2EngineModel XC6110Rated powerkm/r.p.m81/2500Rated torqueNm/r.p.m353/1700No. cylinder 6Bore x strokemm102×118Displacement L5.785Fuel tank capacity L140Transmission/shift  1/1 automatic transmissionOperation pressure Mpa20

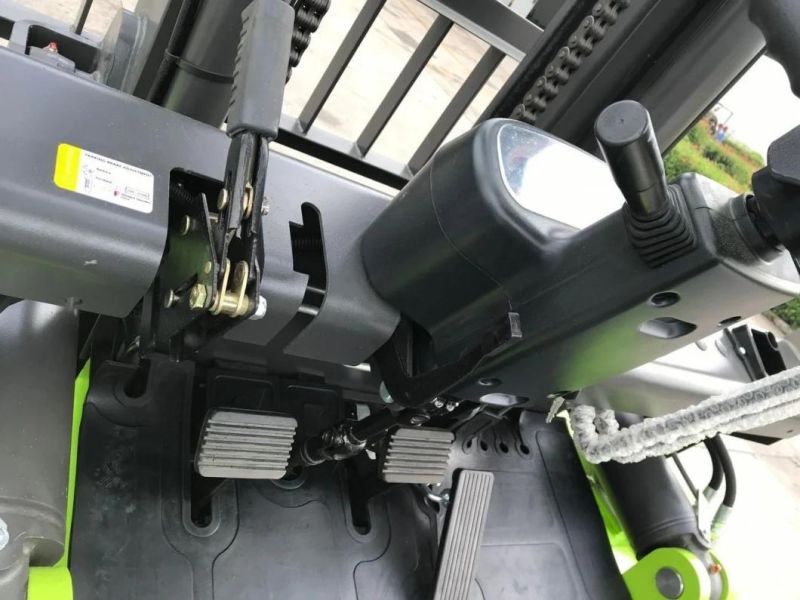

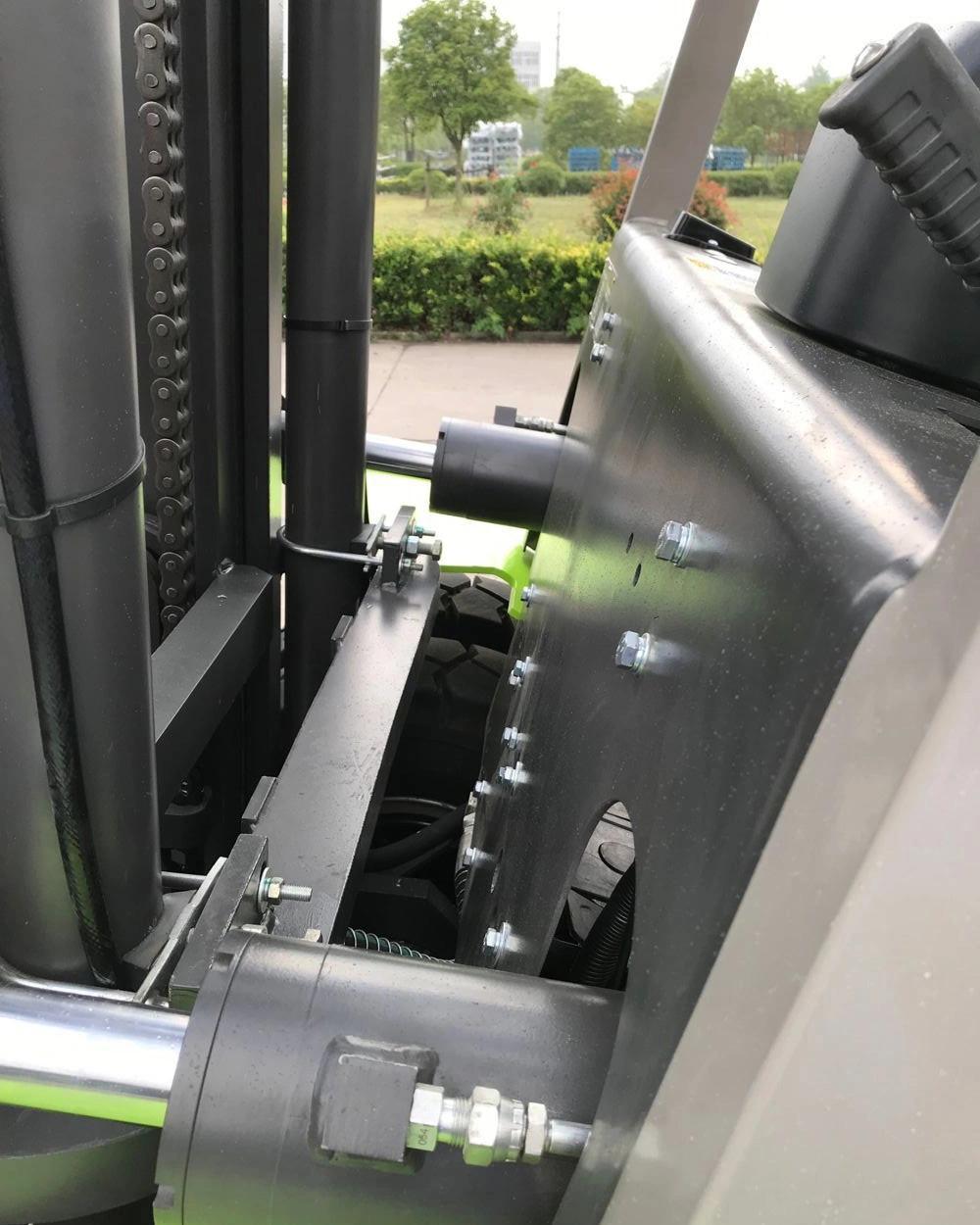

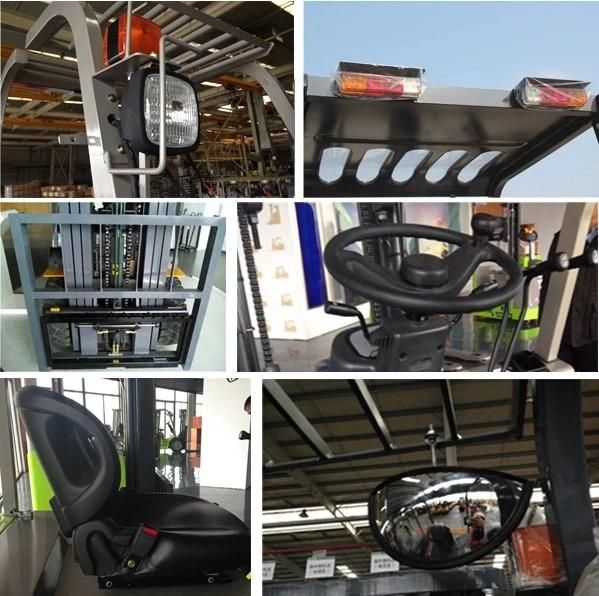

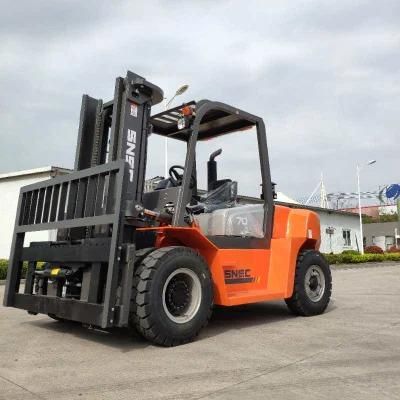

Details of 7Ton Diesel Forklift FD70



7ton Diesel Forklift Common Optionals:
Side shifter,Double front tires,Solid tire,Double air filter,Vertical exhaust,fork extension,Cab,Fork positioner, duplex/ triplex full free mast

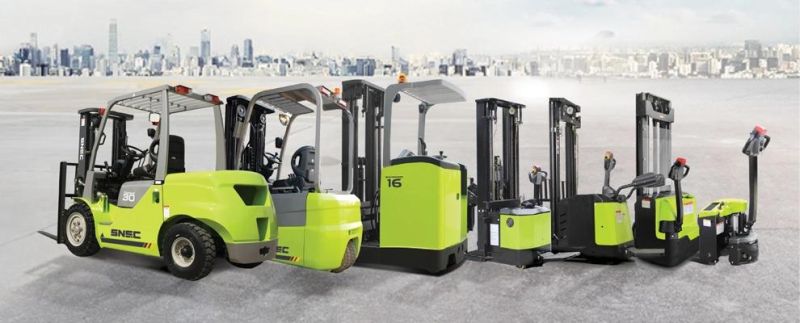

Forklift Catalogue:
Diesel Forklift capacity is from 1.5 ton diesel forklift to 10 ton diesel forklift;
(FD15/FD20/FD25/FD30/FD35/FD40/FD45/FD50/FD60/FD70/FD80/FD100)
Electric Forklift capacity is from 1.5ton battery forklift to 3.5ton battery forklift;
(FB15/FB20/FB25/FB30/FB35)
LPG&Gasoline Forklift capacity is from 1.5ton LPG forklift to 3.5ton LPG forklift;
(FL15/FL20/FL25/FL30/FL35)
Wearhouse material handling equipments include Electric Pallet Truck (TB)/Electric Stacker(DB)/ Electric Reach Truck(YB)/Electric Tractor(QB).

Company Introduction:
We, SNSC, are top quality forklift manufacture in China, with 130,000 square meters production area, 30,000 units production capacity per year,5000 sets export volume.

We regarde  "Quality product, reasonable price, efficient production time and good after-sale servie" as our tenet."

We hope to cooperate with more customers for mutual development and benifits. Welcome to contact us with your demands.
