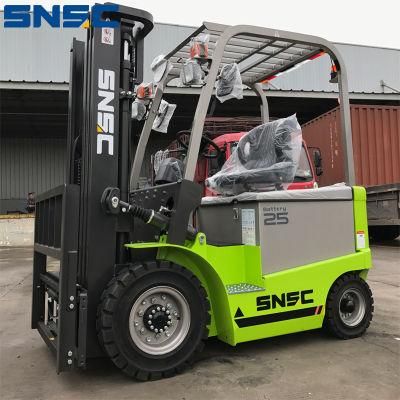

Snsc 2.5ton Battery Electric Forklift Truck Machine
Jinan Shine International Trade Co., Ltd.- Cab Location：Not Adjustable
- Type：Electric Forklift
- Power：AC Motor
- Load Capacity：1T - 5T
- Fuel：Electric
- Load center：500mm
Base Info
- Model NO.：FB25
- Lift height：3000~5000mm
- Condition：New
- Free Lifting Height：145mm
- Fork Size：1070*122*40mm
- Mast Tilt Angle：6,12 Degree
- Min. Ground Clearance：110mm
- Overhead Guard Height：2150mm
- Front Overhang：470mm
- The Turning Radius：2090mm
- Transport Package：Nude Package
- Trademark：SNSC
- Origin：China
- HS Code：84270290
- Production Capacity：100 Sets Per Month
Description
SpecificationsUnit FB25 Features Power type battery Rated load kg 2500 Load center mm 500 Lifting height mm 3000 Free lifting height mm 145 Fork size L*W*T mm 1070*122*40 Mast tilt angle Front/Rear Performance Max. travelling speed loaded km/h 13 Max. lifting speed loaded/empty mm/s 270/300 Max. climbing ability % 15 Dimension Overall length without fork mm 2310 Overall width mm 1150 Mast lowered height mm 1990 Mast extended height mm 4030 Chassis Tyre Front 7.00-12-12PR Rear 18X7-8-14PR Wheel base mm 1450 Wheel thread Front/Rear mm 960/950 Weight(without load) kg 4050 Powertrain Battery V/AH 48/630 motor Travelling kw 11 Lifting kw 10/14 Controller Curtis Control type 50%AC/100%AC Working pressure Mpa 17.5

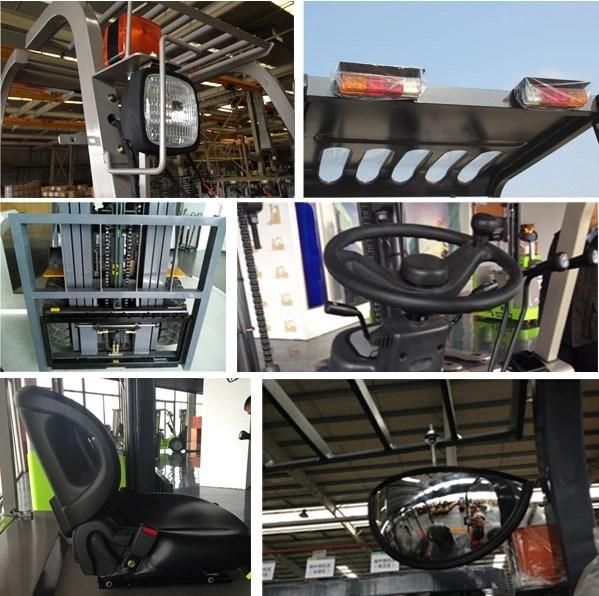

Details of 2.5Ton Electric Forklift FB25
2.5Ton Electric Forklift Common Optionals:
Side shifter,Double front tires,Solid tire,Double air filter,Vertical exhaust,fork extension,Cab,Fork positioner, duplex/ triplex full free mast
Forklift Catalogue:
Diesel Forklift capacity is from 1.5 ton diesel forklift to 10 ton diesel forklift;
(FD15/FD20/FD25/FD30/FD35/FD40/FD45/FD50/FD60/FD70/FD80/FD100)
Electric Forklift capacity is from 1.5ton battery forklift to 3.5ton battery forklift;
(FB15/FB20/FB25/FB30/FB35)
LPG&Gasoline Forklift capacity is from 1.5ton LPG forklift to 3.5ton LPG forklift;
(FL15/FL20/FL25/FL30/FL35)
Wearhouse material handling equipments include Electric Pallet Truck (TB)/Electric Stacker(DB)/ Electric Reach Truck(YB)/Electric Tractor(QB).
Company Introduction:
We, SNSC, are top quality forklift manufacture in China, with 130,000 square meters production area, 30,000 units production capacity per year,5000 sets export volume.
We regarde "Quality product, reasonable price, efficient production time and good after-sale servie" as our tenet."
We hope to cooperate with more customers for mutual development and benifits. Welcome to contact us with your demands.
