Big Promotion 5 Ton Diesel Forklift Trucks Machine From China
Jinan Shine International Trade Co., Ltd.- Cab Location：Not Adjustable
- Type：Diesel Forklift
- Power：Diesel Engine
- Load Capacity：1T - 5T
- Fuel：Diesel
- Load center：500mm
Base Info
- Model NO.：FD50
- Lift height：3000~5000mm
- Condition：New
- Product Name：Big Promotion 5 Ton Diesel Forklift Trucks Machine
- Free Lifting Height：145mm
- Fork Size：1070*150*50mm
- Mast Tilt Angle：6,12 Degree
- Min. Ground Clearance：160mm
- Overhead Guard Height：2350mm
- Front Overhang：565mm
- Height From Seat to Overhead Guard：1040mm
- Transport Package：Nude Package
- Trademark：SNSC
- Origin：China
- HS Code：84270290
- Production Capacity：100 Sets Per Month
Description
SpecificationsUnit FD50(Mini) Features Power type Diesel Rated load kg 5000 Load center mm 500 Lifting height mm 3900 Free lifting height mm 145 Fork size L*W*T mm 1070*150*50 Mast tilt angle Front/Rear Performance Max. travelling speed loaded km/h 18 Max. lifting speed loaded/empty mm/s 410/430 Max. traction force loaded KN 22 Max. climbing ability % 20 Dimension Overall length without fork mm 3100 Overall width mm 1490 Mast lowered height mm 2355 Mast extended height mm 4257 Chassis Tyre Front 300-15-18PR Rear 7.00-12-12PR Wheel base mm 2000 Wheel thread Front/Rear mm 1180/1190 Weight(without load) kg 6600 Powertrain Battery V/AH (12/90)×2 Engine Model QC 4C5/Mitsubishi S6S-228 Rated power km/r.p.m 60/2200 Rated torque Nm/r.p.m 300/1600-1800 No. cylinder 4 Bore x stroke mm 108×135 Displacement L 4.95 Fuel tank capacity L 100 Transmission/shift 1/1 automatic transmission Operation pressure Mpa 18.5

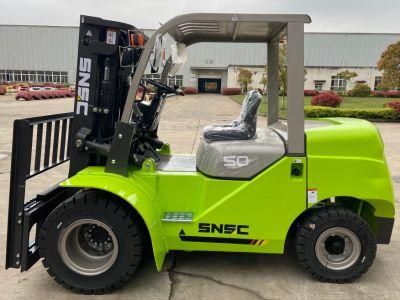

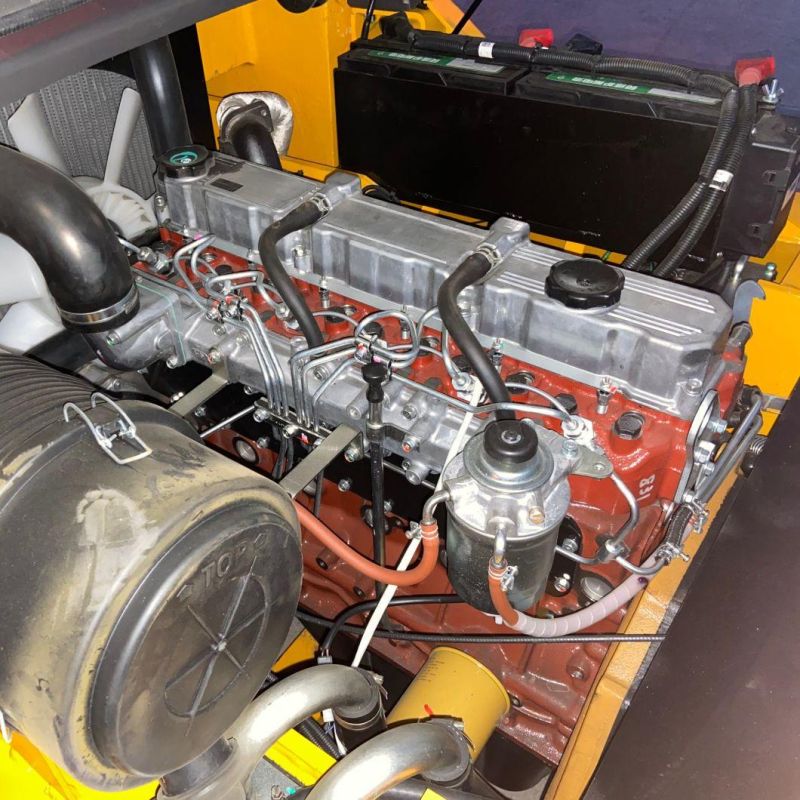

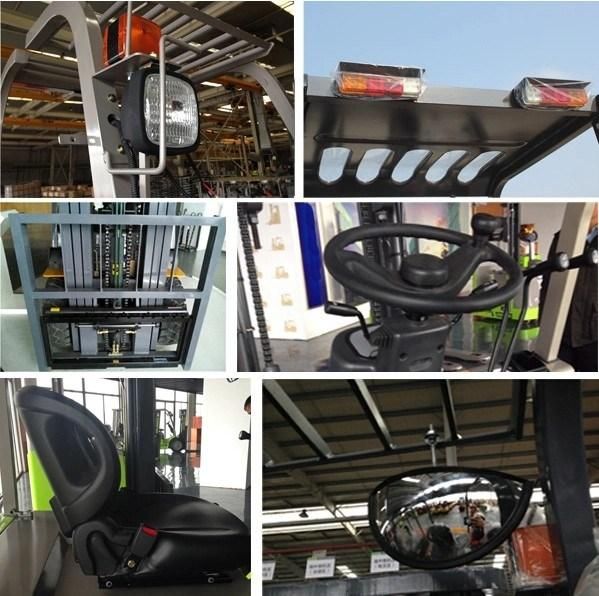

Detailed Pictures of Big Promotion 5 Ton Diesel Forklift Trucks Machine From China:

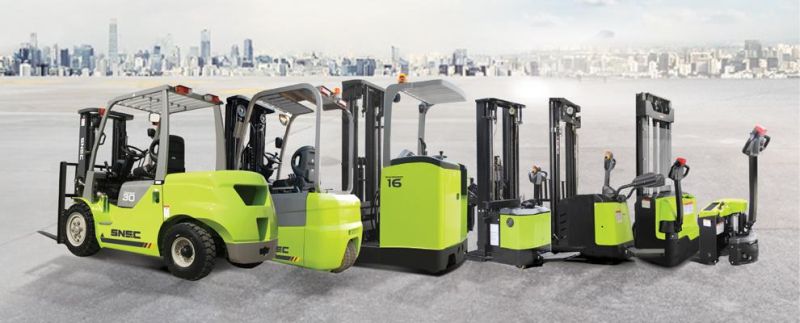

Forklift Catalogue:
Diesel Forklift capacity is from 1.5 ton diesel forklift to 10 ton diesel forklift;
(FD15/FD20/FD25/FD30/FD35/FD40/FD45/FD50/FD60/FD70/FD80/FD100)
Electric Forklift capacity is from 1.5ton battery forklift to 3.5ton battery forklift;
(FB15/FB20/FB25/FB30/FB35)
LPG&Gasoline Forklift capacity is from 1.5ton LPG forklift to 3.5ton LPG forklift;
(FL15/FL20/FL25/FL30/FL35)
Wearhouse material handling equipments include Electric Pallet Truck (TB)/Electric Stacker(DB)/ Electric Reach Truck(YB)/Electric Tractor(QB).
Company Introduction:
We, SNSC, are top quality forklift manufacture in China, with 130,000 square meters production area, 30,000 units production capacity per year,5000 sets export volume.
We regarde "Quality product, reasonable price, efficient production time and good after-sale servie" as our tenet."
We hope to cooperate with more customers for mutual development and benifits. SNSC is worth your trust and beyond your needs. Welcome to contact us with your demands.
