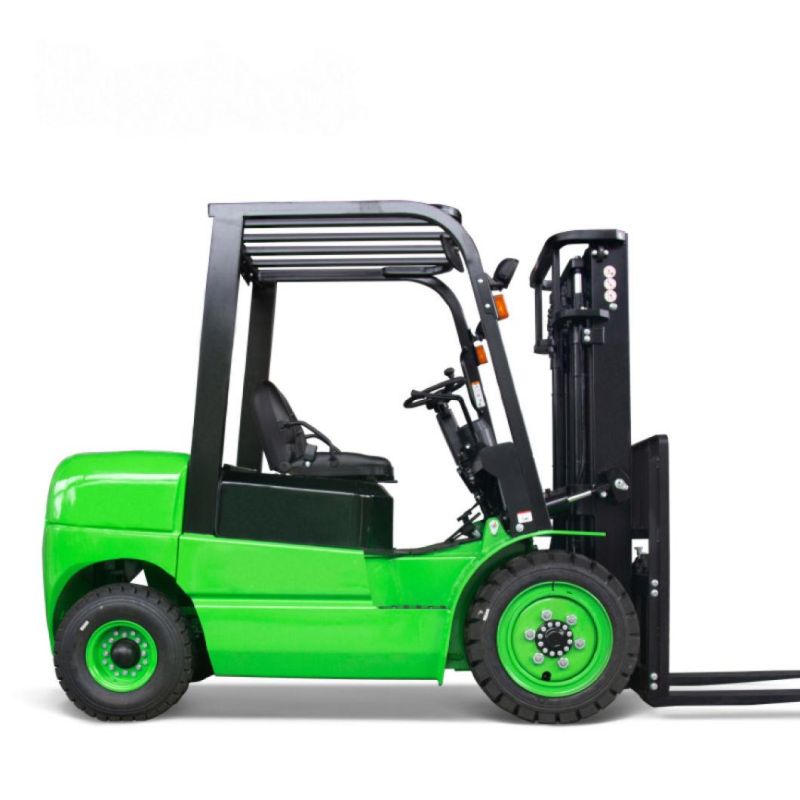

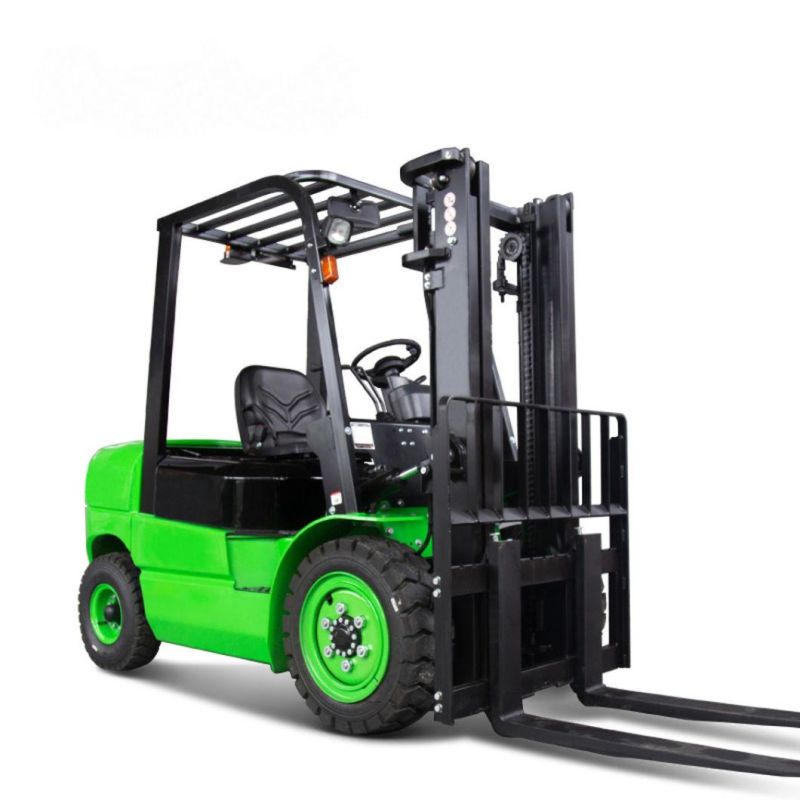

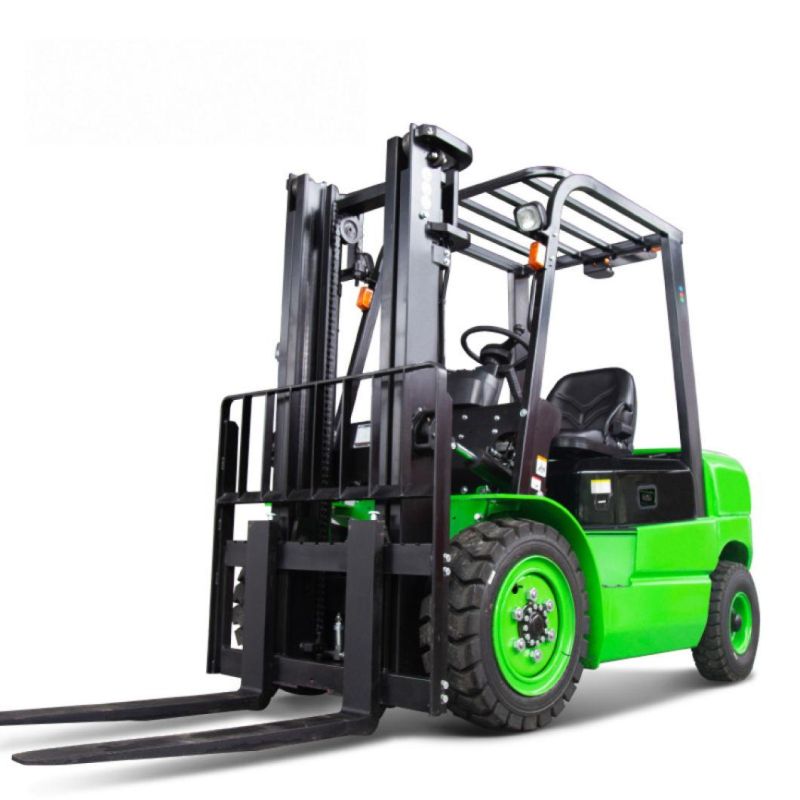

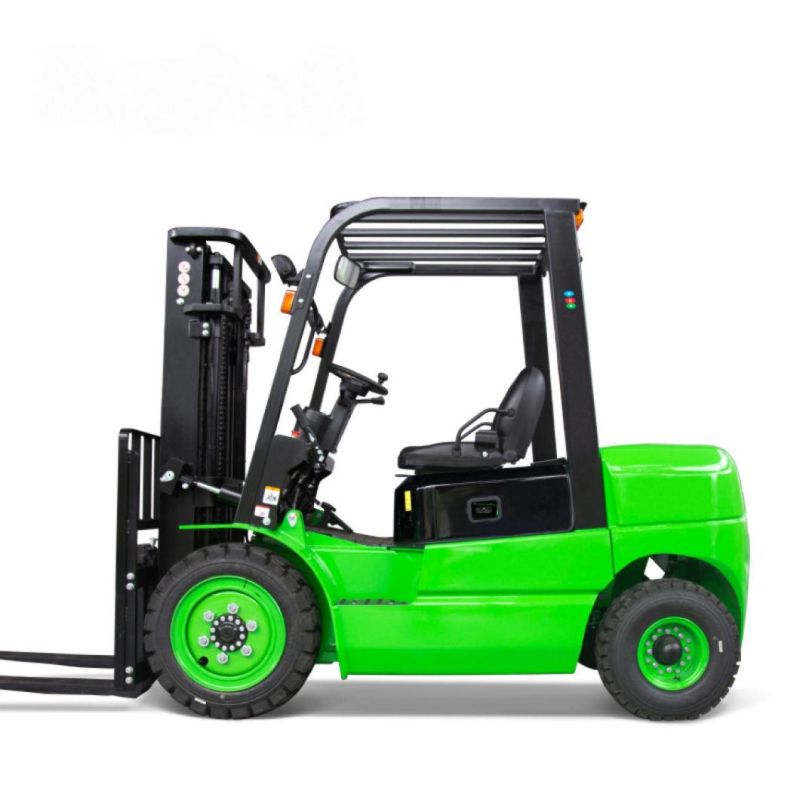

2.5ton Four Wheels Electric Forklift (T25)
Shanghai Hytger Industry & Trade Co., Ltd.- Type：Electric
- Power：AC Motor
- Load Capacity：1T - 5T
- Fuel：Electric
- Load center：500mm
- Lift height：3000~5000mm
Base Info
- Model NO.：T25
- Condition：New
- Name：Electric Froklift with 2 Stage 3 Lifting Freight
- Transport Package：Seaworthy Packing
- Specification：CE, SGS, ISO
- Trademark：SHYTGER
- Origin：Shanghai, China
- HS Code：84271010
- Production Capacity：3000units,Year
Description
Weights2.1 Service weight kg 3650 3650 4150 4170 4985 5100 2.2 Axle loading, laden front/ rear kg 4490/460 4920/530 5940/460 6600/500 7230/750 7800/800 2.3 Axle loading, unladen front/ rear kg 1440/2010 1540/2110 2220/2180 2290/2310 2140/2840 2200/2900 Wheels, Chassis 3.1 Tyre type Pneumatic Pneumatic Pneumatic Pneumatic Pneumatic Pneumatic 3.2 Tyre size, front 6.5-10-10PR 6.5-10-10PR 7.00-12-12PR 7.00-12-12PR 28X9-15 28X9-15 3.3 Tyre size, rear 5.00-8-10PR 5.00-8-10PR 18X7-8 18X7-8 18X7-8 18X7-8 3.5 Wheels, number front/ rear (x=drive wheels) 2x/ 2 2x/ 2 2x/ 2 2x/ 2 2x/ 2 2x/ 2 3.6 Tread, front b 10 (mm) 890 890 970 970 1000 1000 3.7 Tread, rear b 11 (mm) 920 920 950 950 980 980 Dimensions 4.1 Mast/ fork carriage tilt, forward/ backward α/ β (°) 6/ 12 6/ 12 6/ 12 6/ 12 6/ 12 6/ 12 4.2 Height, mast lowered h 1 (mm) 1995 1995 1995 1995 2025 2025 4.3 Free lift h 2 (mm) 135 135 100 100 100 100 4.4 Lift height h 3 (mm) 3000 3000 3000 3000 3000 3000 4.5 Height, mast extended h 4 (mm) 3955 3955 4220 4220 4250 4250 4.7 Height of overhead guard (cabin) h 6 (mm) 2170 2170 2230 2230 2230 2230 4.8 Seat height h 7 (mm) 1130 1130 1160 1160 1160 1160 4.12 Tow coupling height h 10 (mm) 335 335 310 310 310 310 4.19 Overall length l 1 (mm) 2995 2995 3350 3350 3620 3670 4.20 Length to face of forks l 2 (mm) 2075 2075 2280 2280 2550 2600 4.21 Overall width b 1 / b 2 (mm) 1080/1070 1080/1070 1150 1150 1220 1220 4.22 Fork dimensions s/ e/ l (mm) 40×100×920 40×100×920 40×120×1070 40×120×1070 45×125×1070 50×125×1070 4.24 Fork carriage width b 3 (mm) 1040 1040 1040 1040 1100 1100 4.31 Ground clearance, laden, below mast m 1 (mm) 110 110 110 110 130 130 4.32 Ground clearance, center of wheelbase m 2 (mm) 110 110 100 100 120 120 4.33 Aisle width, 1000×1200 pallet crossways Ast (mm) 3630 3630 3890 3990 4125 4225 4.34 Aisle width, 800×1200 pallet lengthways Ast (mm) 3430 3430 3690 3790 3925 4025 4.35 Outer turning radius Wa (mm) 1920 1920 2100 2100 2300 2300 4.36 Inner turing radius b 13 (mm) __ __ __ __ __ __ Performance 5.1 Travel speed, laden/ unladen km/ h 11.5/12 11.5/12 13/ 13.5 13/ 13.5 11/ 12 11/ 12 5.2 Lifting speed, laden/ unladen m/ s 0.3/0.45 0.3/ 0.45 0.3/ 0.45 0.3/ 0.45 0.23/ 0.37 0.23/ 0.37 5.3 Lowering speed, laden/ unladen m/ s 0.45/0.44 0.45/ 0.44 0.44/ 0.435 0.44/ 0.435 0.50/ 0.48 0.50/ 0.48 5.6 Maximum drawbar pull, laden S 2 5 min. N 11000 11000 17000 17000 18000 18000 5.8 Maximum gradeability, laden/ unladen S 2 5 min. % 10.5/14 10.5/ 14 10.5/ 14 10.5/ 14 10.5/ 12 10.5/ 12 5.10 Service brake Hydraulic/mechanical Hydraulic/mechanical Hydraulic/mechanical Hydraulic/mechanical Hydraulic/mechanical Hydraulic/mechanical Drive 6.1 Drive motor rating S 2 60 min. kW 7.5 7.5 11 11 11.75 11.75 6.2 Lift motor rating at S 3 15% kW 9.2 9.2 8.6 8.6 10 10 6.4 Battery voltage/ rated capacity (5h) V/ Ah 48/400(Max545) 48/400(Max545) 48/500(Max700) 48/630(Max700) 80/500(Max550) 80/500(Max550) 6.5 Battery weight kg 930 930 990 990 1492 1492 Battery dimensions l/ w/ h mm __ __ __ __ __ __ Others 8.1 Type of drive control AC ZAPI AC ZAPI AC ZAPI AC ZAPI AC ZAPI AC ZAPI 8.2 Operating pressure for attachments bar 145 145 175 175 180 180 8.4 Sound level at operator's ear dB (A) 70 70 72 72 75 75
