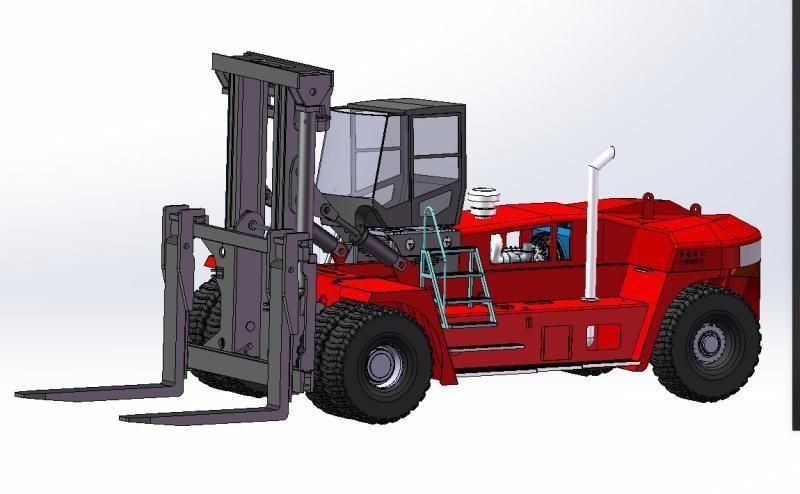

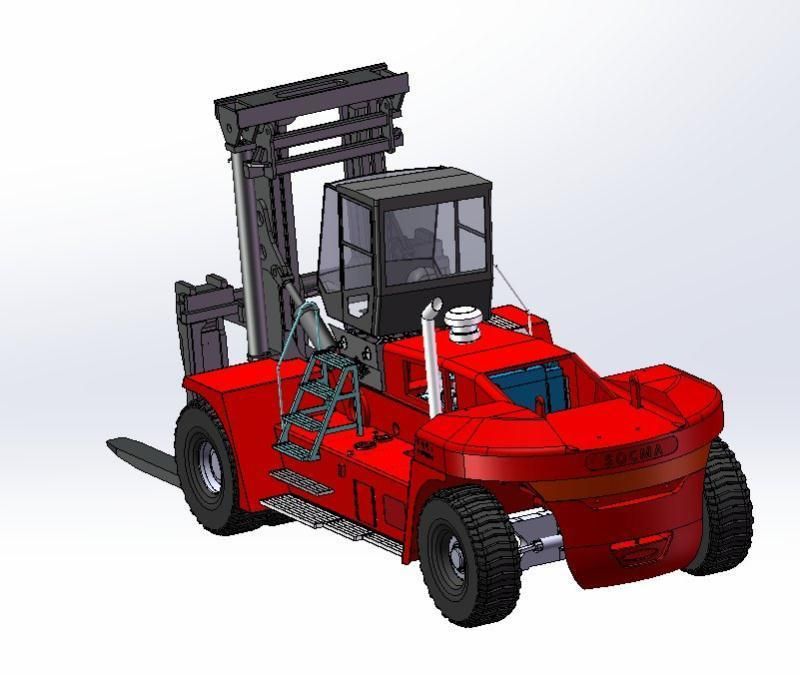

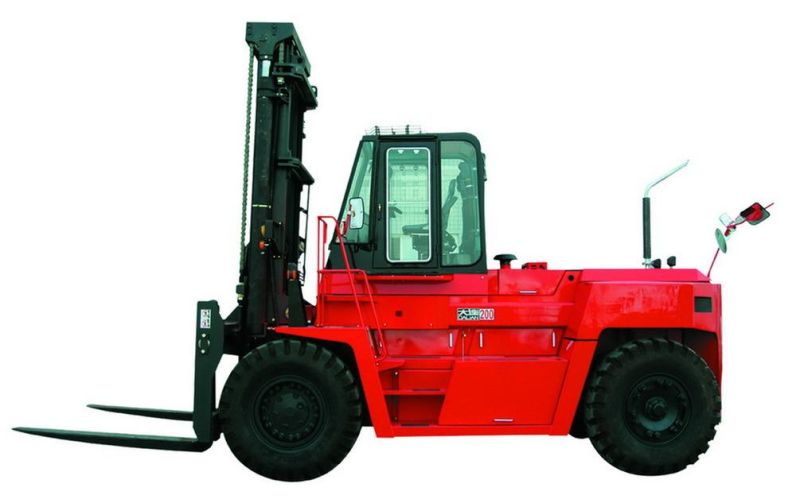

14-45t Heavy Big Power Diesel Forklift Fd14-Fd45t
Shanghai Hytger Industry & Trade Co., Ltd.- Type：Powered Pallet Truck
- Power：Diesel Engine
- Load Capacity：18T - 42T
- Fuel：Diesel
- Load center：500mm
- Lift height：3000~5000mm
Base Info
- Model NO.：FD14-FD45T
- Condition：New
- Name：14-45t Heavy Big Power Diesel Forklift
- Transport Package：Seaworthy Packing
- Specification：CE, SGS, ISO
- Trademark：SHYTGER
- Origin：Shanghai, China
- HS Code：84272090
- Production Capacity：3000units,Year
Description
Technical ParameterItem Unit FD150 FD160 FD200 FD250 FD300 FD350 Load capacity Kg 15000 16000 20000 25000 30000 35000 Weight Kg 20000 21000 26000 32000 39500 42000 Max. lifting height mm 3500 3500 3500 3500 3500 3500 Load center mm 600 600 900 1250 1250 1250 Max. lifting speed mm/s 300 300 180 180 260 260 Tilt angle (front/back) deg. 6/12 6/12 6/12 6/12 6/12 6/12 Travel Max. traveling speed Km/h 30 30 25 28 28 28 Min. turning radius mm 5800 5800 5800 6500 7200 7200 Min. ground clearance mm 250 265 250 230 350 410 Gradeability % 20 20 20 20 20 20 Overall length mm 7410 7580 8100 9115 9640 9700 Overall width mm 2750 2750 3020 3020 3200 3200 Overall height mm 3625 3625 3500 3610 4200 4300 Fork size (L*W*H) mm 1800*180*90 1800*180*90 2000*260*100 2440*280*110 2440*320*110 2500X340X120 Wheel base mm 3800 3800 4000 4400 4800 4800 Tread (front) mm 2060 2060 2200 2200 2490 2490 Tread (rear) mm 2330 2330 2390 2390 2450 2450 Engine Model 6BTAA5.9-C190 6BTAA5.9-C190 6CTA8.3-C215 6CTA8.3-C240 6CTA8.3-C260 6CTA8.3-C260 Rated power/rotate speed KW/r.pm 142/2200 142/2200 160/2200 179/2200 191/2200 191/2200 Max. torque/rotate speed N.m/r.pm 800/1500 800/1500 908/1500 1028/1500 1025/1400 1025/1400 Tires type Front 4x12.00-24-18PR 4x12.00-24-18PR 4x14.00-24-24PR 4x14.00-24-28PR 4x14.00-24-28PR 4X16.00-25/32PR Rear 2x12.00-20-18PR 2x12.00-20-18PR 2x14.00-24-24PR 2x14.00-24-28PR 2x14.00-24-28PR 2X16.00-25/28PR Note: We'll reserve the rights not to inform if there is any improvement on the products or change on the specifications.
