XCMG New 1.3t/1.6t/1.8t/2t 3-Wheel Electric Forklift Truck for Sale
Xuzhou Construction Machinery Group Import & Export Co., Ltd.- Cab Location：Not Adjustable
- Type：Electric Forklift
- Power：AC Motor
- Load Capacity：1T - 5T
- Fuel：Electric
- Load center：500mm
Base Info
- Model NO.：FBT13
- Lift height：3000-6000mm
- Condition：New
- Rated Load Capacity：5000kg
- Fork Size (L*W*T)：920*120*35mm
- Length to Face of Fork (Without Fork)：1855mm
- Battery (Standard)：48,500 V,Ah
- Total Weight：2820kg
- Transmission：Automatic Hydraulic
- Tyre：Pneumatic,Solid
- Mast：2 Stage Mst,3 Stage Mast
- Lifting Height：3000mm to 6000mm
- Transport Package：Comply with Export Packaging Requirements
- Specification：1855*1082*2085mm
- Trademark：XCMG
- Origin：Xuzhou, Jiangsu, China
- HS Code：8427109000
- Production Capacity：10000units,Year
Description
Basic Info.
Model NO. FBT13 Lift height 3000-6000mm Condition New Rated Load Capacity 5000kg Fork Size (L*W*T) 920*120*35mm Length to Face of Fork (Without Fork) 1855mm Battery (Standard) 48/500 V/Ah Total Weight 2820kg Transmission Automatic Hydraulic Tyre Pneumatic/Solid Mast 2 Stage Mst/3 Stage Mast Lifting Height 3000mm to 6000mm Transport Package Comply with Export Packaging Requirements Specification 1855*1082*2085mm Trademark XCMG Origin Xuzhou, Jiangsu, China HS Code 8427109000 Production Capacity 10000units/YearProduct Description

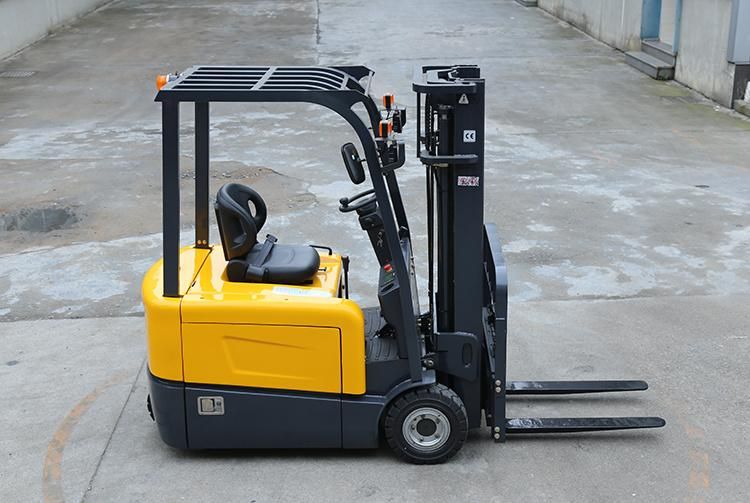

XCMG New 1.3t/1.6t/1.8t/2t 3-Wheel Electric Forklift Truck for Sale
XCMG Forklift provide you with multiple choice as per your real need,we have different reliable engines for choice. All these engine have been tested that they can be trusted through all kinds of tough working condition and get recognition from millions of client across the worldwide.
These engines are specifically designed for the forklift use,with low fuel consumption,less noise and vibration,all these features improve the whole performance of the forklift.
High efficiency is also delivered through the performance of the axles,the excellent brake system make sure the forklift operate with safety,the steering axle provide prompt and precise feedback to the driver when steering.
Advantages:
• Full AC System
• OPS System
• Comfortable Operator Space
• Side-way Battery Change System
• Lower Energy Consumption and Energy Regeneration Function
• Easy-to-read operator display
• Front Dual AC Motor Traction System
• World Class Gear Box System
• Automatic Maintenance Alarm
| Model | FBT13-AZ1 | |
| Rated Load Capacity | Q(kg) | 1300 |
| Load Centre | C(mm) | 500 |
| Lift Height | H3(mm) | 3000 |
| Free Lift | H2(mm) | 100 |
| Fork Size (L×W×T) | L/W/T(mm) | 920×120×35 |
| F/B(α°/β°) | Deg | 6°/6° |
| Length (To Fork Face) | L1(mm) | 1855 |
| Width | B1(mm) | 1082 |
| Mast Lowered Height | H1(mm) | 2085 |
| Mast Extended Height (With Backrest) | H4(mm) | 4070 |
| Overhead Guard Height | H5(mm) | 2080 |
| Turning Radius | Wa(mm) | 1515 |
| Fork Overhang (Wheel Center to Fork Face) | X(mm) | 412 |
| Front Tread | B2(mm) | 922 |
| Rear Tread | B3(mm) | 175 |
| Ground Clearance | H6(mm) | 90 |
| Wheelbase | Y(mm) | 1320 |
| Fork Spread (Min/Max) | mm | 200/1000 |
| Working Aisle Width With Pallet (1000×1200,1200 Lengthways) | Ast(mm) | 3190 |
| Working Aisle Width With Pallet (800×1200,800 Lengthways) | Ast(mm) | 3310 |
| Travel Speed (Full Load) | km/h | 13 |
| Travel Speed (No Load) | km/h | 14 |
| Lifting Speed (Full Load) | mm/s | 300 |
| Lifting Speed (No Load) | mm/s | 450 |
| Max.Gradeability (Full Load) | % | 18 |
| Max.Gradeability (No Load) | % | 20 |
| Total Weight (Contains the battery) | kg | 2820 |
| Tyre (Front x 2) | 18X7-8 | |
| Tyre (Rear x 2) | 15X4.5-8 | |
| Diver Motor | kw | 4X2 |
| Pump Motor | kw | 11 |
| Battery (Standard) | V/Ah | 48/500 |
| Controller Type | AC | |
| Controller Manufacturer | ZAPI | |
| Operating Pressure | Mpa | 14.5 |

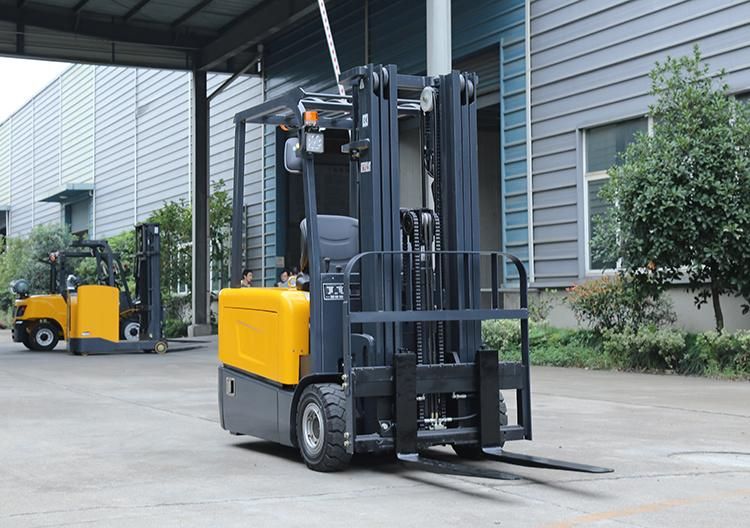

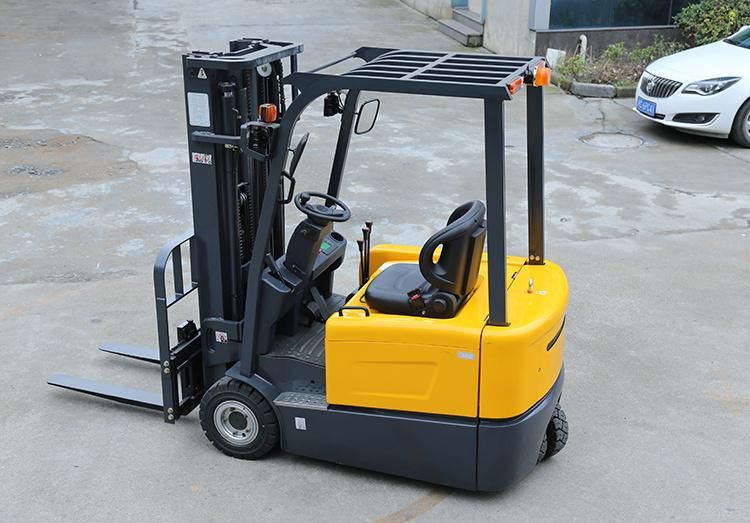

[Product Picture]
