| Charateristics |

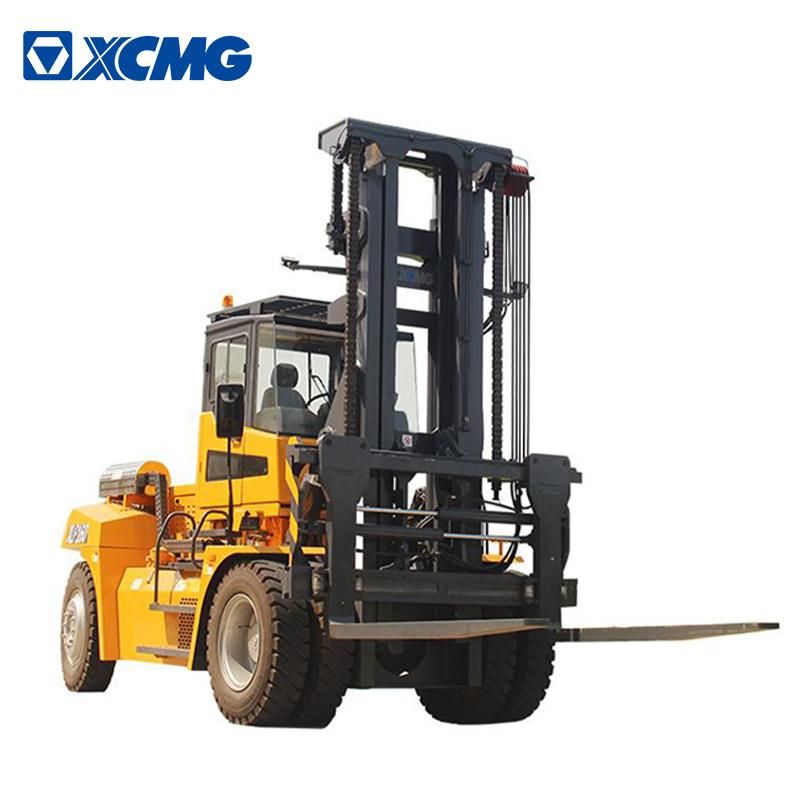

| 1 | Manufacturer | | XCMG |

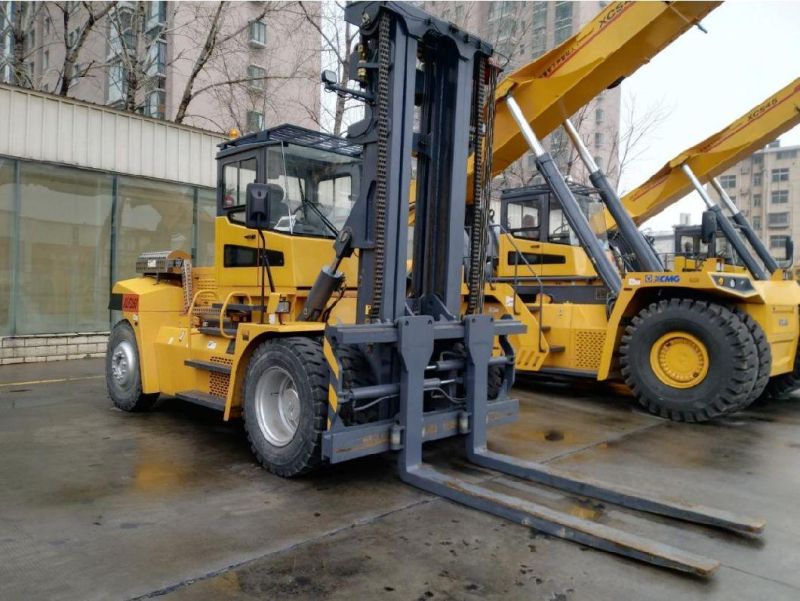

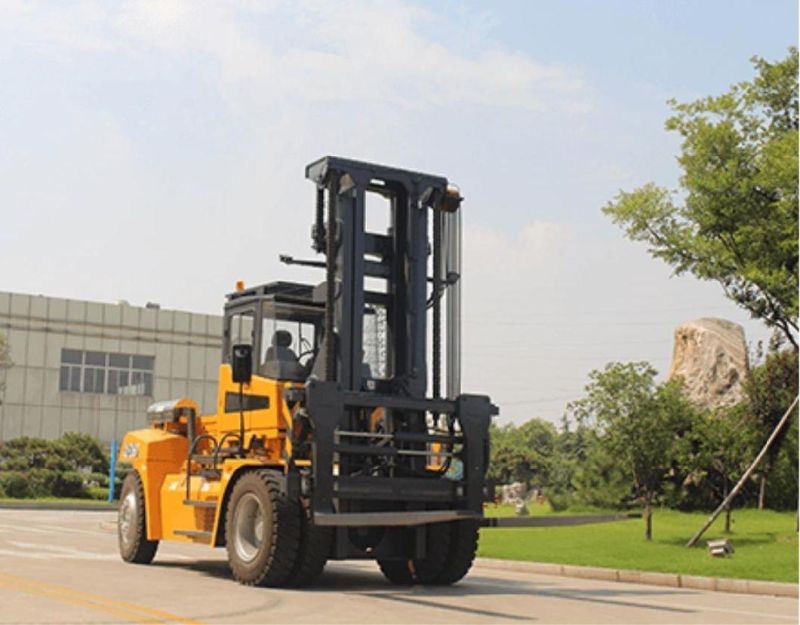

| 2 | Model | | CPCD80 |
| 3 | Power unit | | Diesel |
| 4 | Rated Capacity | kg | 8000 |
| 5 | Load Center | mm | 600 |
| 6 | Operation | | Driver Seated |
| Dimensions |
| 7 | Overall max. lifting height(with backrest) | mm | 4360 |
| 8 | Max. lifting height | mm | 3000 |
| 9 | Height mast retracted | mm | 2700 |
| 10 | Free lift height | mm | 200 |
| 11 | Backrest height(from upper face of forks) | mm | 1360 |
| 12 | Overhead Guard clearance(from face to seat) | mm | 1120 |
| 13 | Overall height(overhead guard) | mm | 2560 |
| 14 | Overall length(with forks) | mm | 5160 |
| 15 | Overall length(without forks) | mm | 3940 |
| 16 | Front overhang | mm | 700 |
| 17 | Rear overhang | mm | 740 |
| 18 | Wheel base | mm | 2500 |
| 19 | Coupler height | mm | 540 |
| 20 | Min. ground clearance under mast | mm | 245 |
| 21 | Overall width | mm | 2165 |
| 22 | Lateral fork adjustment outside of fork (Max/Min) | mm | 2000/340 |
| 23 | Tread(front) | mm | 1600 |
| 24 | Tread(rear) | mm | 1700 |
| 25 | Outside turning radius | mm | 3700 |
| 26 | Inside turning radius | mm | 200 |
| 27 | Min. intersecting aisle | mm | 3310 |
| 28 | Tilting angles(forward/backward) | | 6°/12° |
| 29 | Fork dimensions(axbxc) | mm | 70*1220*170 |
| Performance |
| 30 | Max. Traveling speeds(With/Without load) | Km/h | 26/30 |
| 31 | Lifting Speeds(With/Without load) | mm/s | 440/470 |
| 32 | Lowering Speeds(With/Without load) | mm/s | ≤600/≥300 |
| 33 | Max. Draw-bar pull, With load | kN | 60 |
| 34 | Max. Negotiable Gradient(With/Without load) | % | 27/20 |
| Weights |
| 35 | Service Mass | kg | 10960 |
| 36 | Load Wheel with load(Front/Rear) | kg | 17000/1960 |
| 37 | Load Wheel without load(Front/Rear) | kg | 4840/6120 |
| Tyres |
| 38 | Wheels number front/rear(x=driven) | | 4x/2 |
| 39 | Tyre Type | | PNEUMATIC TYRE |
| 40 | Tyre size(front) | | 9.00-20-14PR |
| 41 | Tyre size(rear) | | 9.00-20-14PR |
| 42 | Service Brake | | Hydraulic-Foot Pedal |
| 43 | Paking Brake | | MECHANICAL-HAND BRAKE ROD |
| Drive |
| 44 | Battery(Voltage/Capacity) | V/Ah | 2x12/80 |
| 45 | Internal Combustion Engine Model | | Cummins QSB4.5 |
| 46 | Engine type | | Electronic controlling, Turbocharged, Air-to-air intercooled diesel engine |
| 47 | Internal Combustion Engine Rated Output | kW/rpm | 82/2200 |
| 48 | Internal Combustion Engine Rated Torque | Nm/rpm | 488/1500 |
| 49 | Internal Combustion Engine Number of Cylinder | | 4 |
| 50 | Internal Combustion Engine Displacement | L | 4.5 |
| 51 | Internal Combustion Engine Fuel Tank Capacity | L | 140 |
| 52 | Transmission type | | Power Shift |
| 53 | Transmission Number of Speed Fwd/Bwd | | 2/2 |
