• Model NO.：Xc6-4517
• Max. Payload：3, 500kg
• Operating Weight：10, 500kg
• Max. Lift Height：13, 700mm
• Dimensions(L*W*H)：6, 290mm*2, 500mm*2, 600mm
• Transport Package：Comply with Export Packaging Requirements
• Specification：ISO
• Trademark：XCMG
• Origin：Xuzhou, Jiangsu, China
• HS Code：84272090
• Production Capacity：10000,Year

Basic Info.

Model NO. Xc6-4517 Max. Payload 3, 500kg Operating Weight 10, 500kg Max. Lift Height 13, 700mm Dimensions(L*W*H) 6, 290mm*2, 500mm*2, 600mm Transport Package Comply with Export Packaging Requirements Specification ISO Trademark XCMG Origin Xuzhou, Jiangsu, China HS Code 84272090 Production Capacity 10000/Year

Product Description

XCMG original manufacturer XC6-4517 telescopic handler.

Rated Power:
82kW@2.200rpm
Operating Weight: 13,500kg 29,762lb
Max. Payload: 4,500kg 9,921lb
Max. Lift Height: 16,700mm 54'10''
Dimensions(L×W×H):
6,890mmX2,500mmX2,815mm
22'7''X8'3''X9'3''

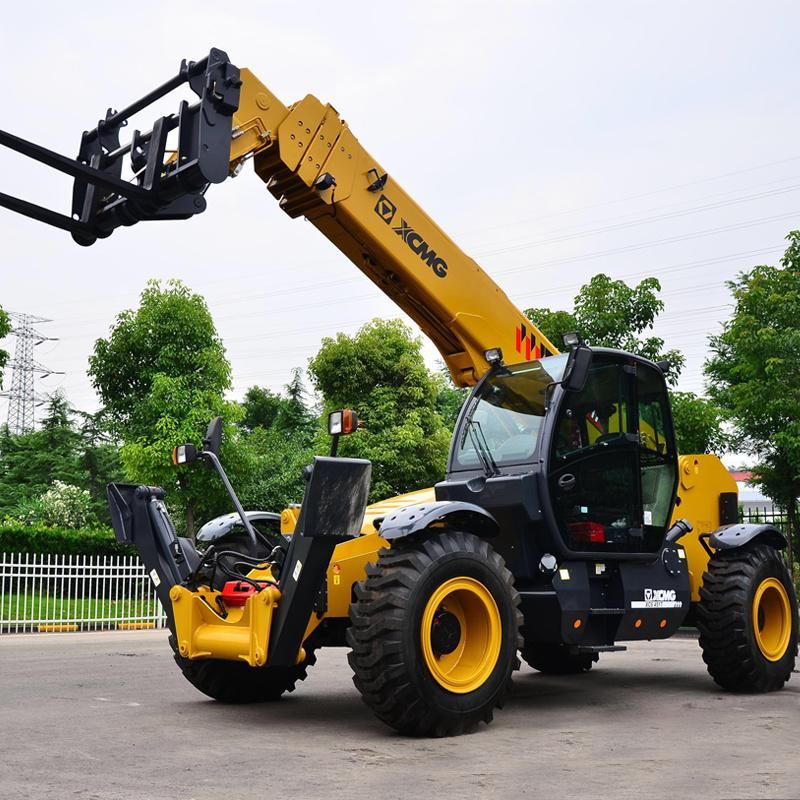

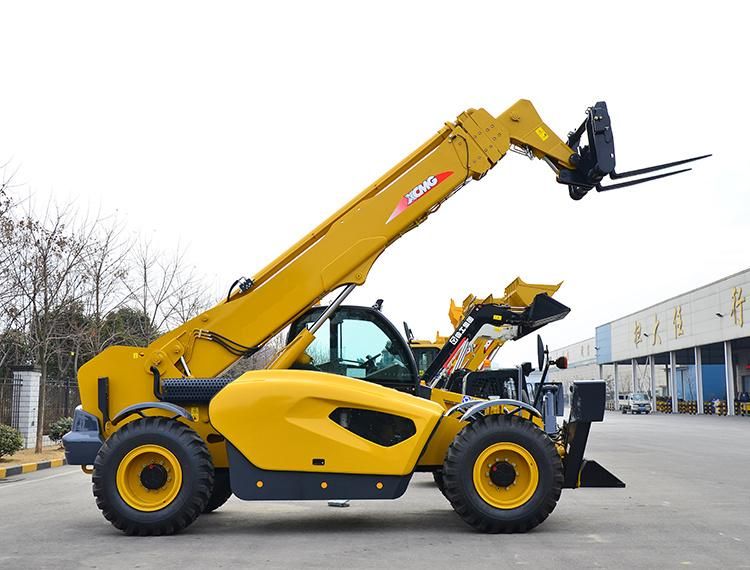

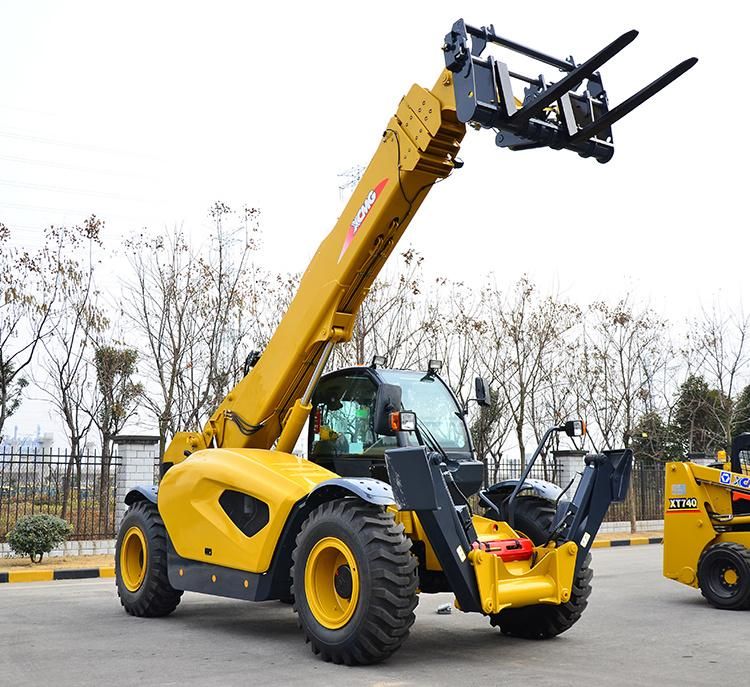

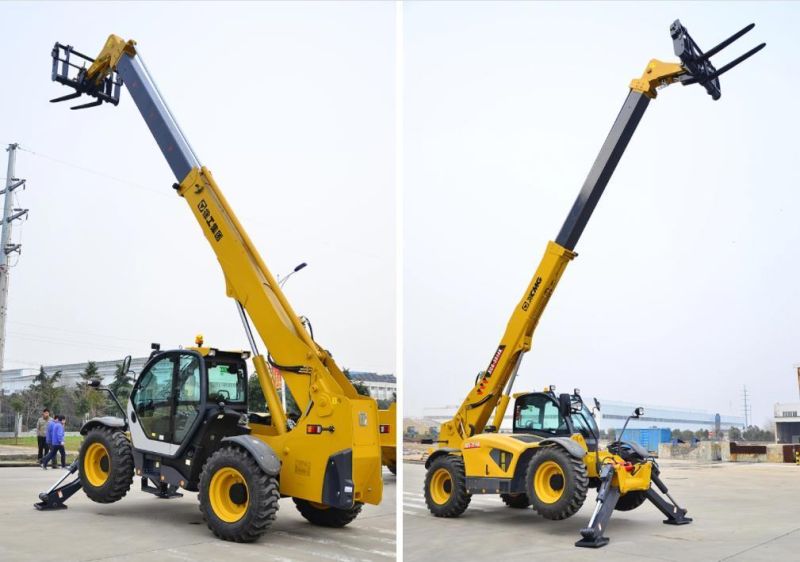

XC6-4517K telescopic handler is a representative product of our K series telescopic handlers. This product is equipped with imported Cummins engine of strong and reliable power and imported axles and transmission of stable drive. The full-hydraulic wet brake is applied to ensure driving safety. The four-section telescopic boom structure features flexible operations, accurate forklifting, and automatic leveling, with the maximum lifting height up to 16.7m. It's a multifunctional high-efficiency small-sized construction machinery product.


Parameter	Unit	XC6-4517K
Gross weight	kg	13500
Engine power	kW	82/74.9
Rated load	kg	4500
Effective load at maximum forward reach	kg	490
Maximum lifting height	mm	16700
Maximum forward reach	mm	12600
Center distance of load	mm	600
Luffing angle	°	-4~73
Fork angle	°	90~18
Maximum traction force	kN	≥70
Gradeability	°	≥25
Maximum traveling speed	km/h	36
Turning radius	mm	≤5000
Braking distance	m	≤10
Overall length	mm	6960
Overall width	mm	2500
Overall height	mm	2850
Wheelbase	mm	3900
Wheel tread	mm	2060
Fork length	mm	1200

FAQ

1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted

2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC,

3: What about the delivery time?
A: 30 days after receiving the deposit.

4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.

5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs.
