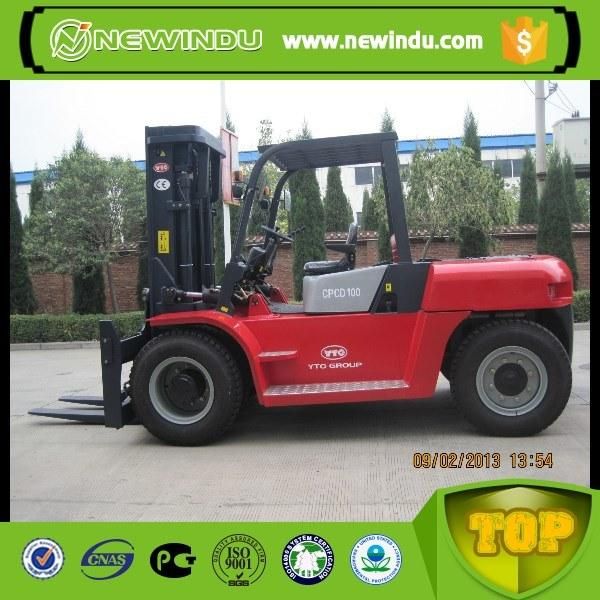

• Model NO.：cpcd100
• Fuel：Diesel
• Load center：>500mm
• Lift height：3000~5000mm
• Condition：New
• Rated Lifting Capacity：10 Ton
• Free Lifting Height：165mm
• Fork：1220mm
• Wheelbase：2600mm
• Engine：Isuzu Cummins Deutz Nissan
• Transport Package：Container Roro Bulk Break Shipment
• Specification：black red
• Trademark：YTO
• Origin：Henan
• HS Code：8427109000
• Production Capacity：50PCS,Month

Specialit Parameter

Model

CPCD80

CPCD100

Power type

Diesel

rated lifting capacity

8000

10000

load center distance

mm

600

lifting height

mm

3000

Free lifting height

mm

165

Mast tilt angle(front/rear)

°

6/12

Performance Parameter

lifting speed(with/without load)

320/340

310/340

lowering speed(with/without load)

>300(without load),<600(with load)

travel speed(with/without load)

21/24

23/26

max gradeability with full load

20%

min turning radius

mm

3670

3950

Min.intersecting aisle(clearance 0.2m)

mm

3555

3660

Min.right angle staching aisle width

4555+L6

4860+L6

Dimension

Parameter

Fork

Length

mm

1220

Width

mm

175

Thickness

mm

75

80

Lateral fork adjustment

mm

390-2140

Front overhand

mm

685

710

Rear overhand

mm

710

730

Overall

dimensions

Overall length

mm

5215

5460

Overall width

mm

2050

2165

Overall

heigh

Extended height(mast)

mm

4180

4580

lower height(mast)

mm

2700

2850

overhand guard

mm

2550

2560

Coupler height

mm

450

490

Overhand guard clearance(from face to seat)

mm

1065

Chassis

parameter

Wheelbase

mm

2600

2800

tread

front

mm

1535

1600

rear

mm

1680

tyre

type

Spare tyres

model

front

8.25-15-14PR

9.00-20-14PR

rear

8.25-15-14PR

9.00-20-14PR

Min.groung clearance

Under mast

mm

245

center of wheelbase

mm

230

255

Brake type

Service brake

Hydraulic

Parking brake

Mechanical

Self weight

Kg

11210

12500

Axle loading

Driving axle(with/without load)

Kg

14640/5380

20400/6000

Transmission axle(with/without load)

Kg

1400/5830

1960/6500

Power, controller and others

Engine

model

LR6108G73

Manufacturer

Yituo

rated power

Kw/rpm

88/2200

rated torque

Nw/rpm

440/1600

Displacement

L

6.87

gearbox

transmission type

Hydraulic

transmission number of speed(front/rear

/

battery

voltage

v

24

capacity

Ah

2×100
