• Model NO.：ES15-15ES
• Condition：New

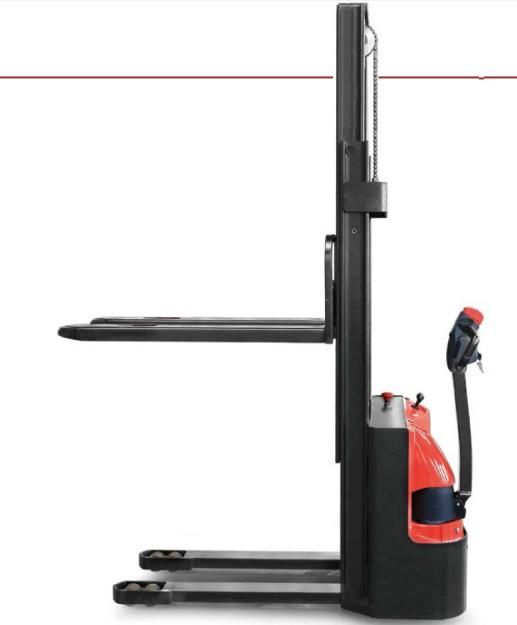

• Name：1.5ton Electric Stacker
• Drive Unit：Electric
• Rated Capacity：1500kg
• Power Source：Electric
• Service Weight：755kg
• Lifting Height：3230mm
• Overall Length：1720mm
• Overall Width：804mm
• Height, Mast Lowered：2128mm
• Turning Radius：1500mm
• Transport Package：Seaworthy Packing
• Specification：CE, SGS, ISO
• Trademark：SHYTGER
• Origin：Shanghai, China
• HS Code：84272090
• Production Capacity：3000units,Year

Basic ParameterItem No:                       ES15-15ESPress capacity:            1500kgControl system:            CURTISBattery voltage:             24V/ 210AhLoad center:                  600mmOperate type:                 Waklie  Forks dimension:          60/ 170/ 1150mm                    Overall Dimension:          1720*804*2128mmStructure Weight:           755kgHS Code:                       84271090Some spare parst free for you.Attention:1.Max lift height can be 5500mm available.2.Local voltage can be customized.3.Blue light can be added like forklift.4.Spare parts available.4,All colors are available.Remarks:1.Trade terms:FOB,CFR,CIF are available.2.Delivery time:within 25 received payment.3.Packing:Pallet packing,spare parts is packed in a box.4.Warranty:2000 working hours or 12month. Characteristics1.1Manufacturer HYTGER1.2Model designation ES15-15ES1.3Drive unit electric1.4Operator type pedestrian1.5Rated capacityQ (kg)15001.6Load center distancec (mm)6001.8Load distance,center of drive axle to forkx (mm)8051.9Wheelbasey (mm)1240 Weights2.1Service weight (Include battery)kg7552.2Axle loading, laden driving/loading sidekg805/14502.3Axle loading, unladen driving/loading sidekg545/210 Wheels, Chassis3.1Tyre type,Driving wheels/Loading wheels PU/ PU3.2Tyre size, driving wheels(diameter*width)mm230x753.3Tyre size, loading wheels(diameter*width)mm80x603.4Tyre size,caster wheels (diameter*width) 130x553.5Wheels, number driving,caster/loading(x=drive wheels) 1x+ 2/ 43.6Track width,front,driving sideb10 (mm)5383.7Track width,rear, loading sideb11 (mm)400 Dimensions4.2Height, mast loweredh1 (mm)21284.4Lift heighth3 (mm)32304.5Height, mast extendedh4 (mm)37434.9Height drawbar in driving position, min/ maxh14 (mm)1150/ 14804.15Lowered heighth13 (mm)884.19Overall lengthl1 (mm)17204.20Length to face of forksl2 (mm)5754.21Overall widthb1/ b2 (mm)8044.22Fork dimensionss/ e/ l (mm)60/ 170/ 11504.24Fork carriage widthb3(mm)6804.25Outside fork width, minimum/ maximumb5 (mm)5704.32Ground clearance,center of wheelbasem2 (mm)284.33Aisle width, 1000×1200 pallet crosswaysAst (mm)23404.34Aisle width, 800×1200 pallet lengthwaysAst (mm)22604.35Turning radiusWa (mm)1500 Performance5.1Travel speed, laden/ unladenkm/ h5.0/5.55.2Lifting speed, laden/ unladenm/ s0.13/ 0.25.3Lowering speed, laden/ unladenm/ s0.13/ 0.135.8Maximum gradeability, laden/ unladen %8/ 165.10Service brake type Electromagnetic Drive6.1Drive motor rating S2 60 min.kW1.276.2Lift motor rating at S3 15%kW36.3The maximum allowed size batterymm330*190*2406.4Battery voltage/nominal capacity k20V/ Ah24/1256.5Battery weight kg60 Others8.1Type of drive control AC10.5Steering type Machanical10.7Sound level at operator's eardB (A)74


FAQ:T/T,L/C,Western Union,Paypal etc.
